Transfer Case: Testing and Inspection

DIAGNOSIS CHART

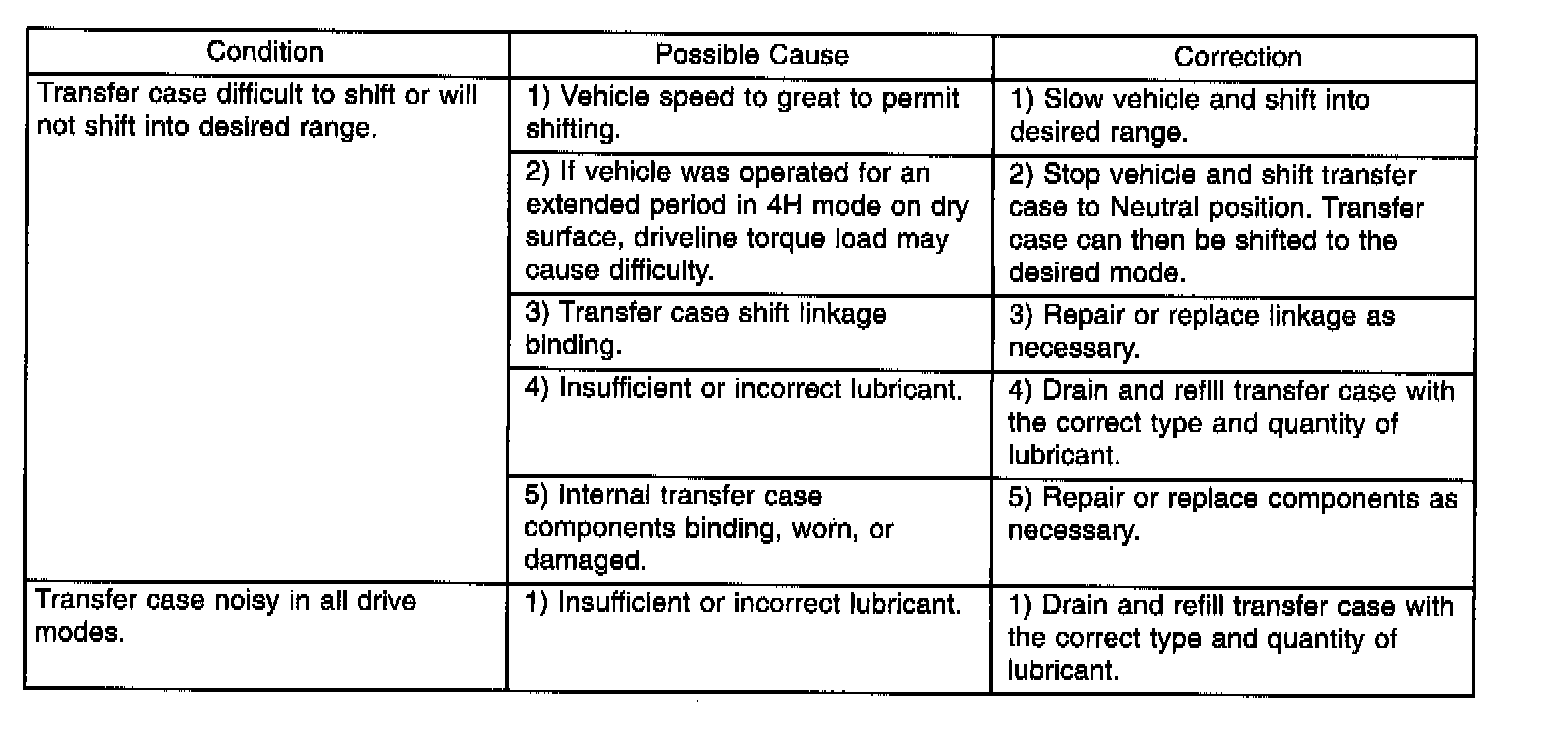

Diagnosis Chart (Part 1 Of 2):

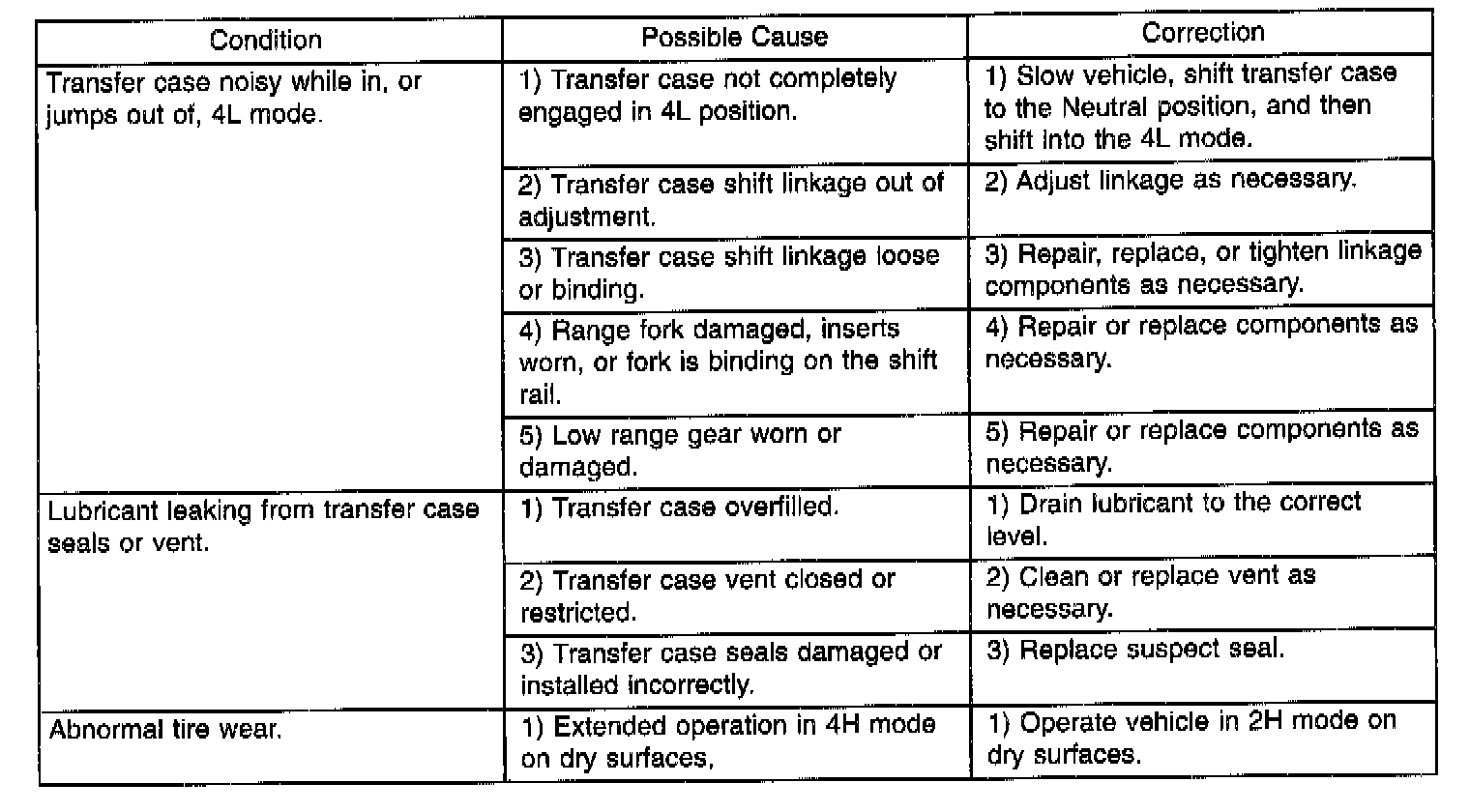

Diagnosis Chart (Part 2 Of 2):
