Drive Belt: Testing and Inspection

DIAGNOSIS AND TESTING-SERPENTINE DRIVE BELT





When diagnosing serpentine drive belts, small cracks that run across ribbed surface of belt from rib to rib (Fig. 3), are considered normal. These are not a reason to replace belt. However, cracks running along a rib (not across) are not normal. Any belt with cracks running along a rib must be replaced (Fig. 3). Also replace belt if it has excessive wear, frayed cords or severe glazing.

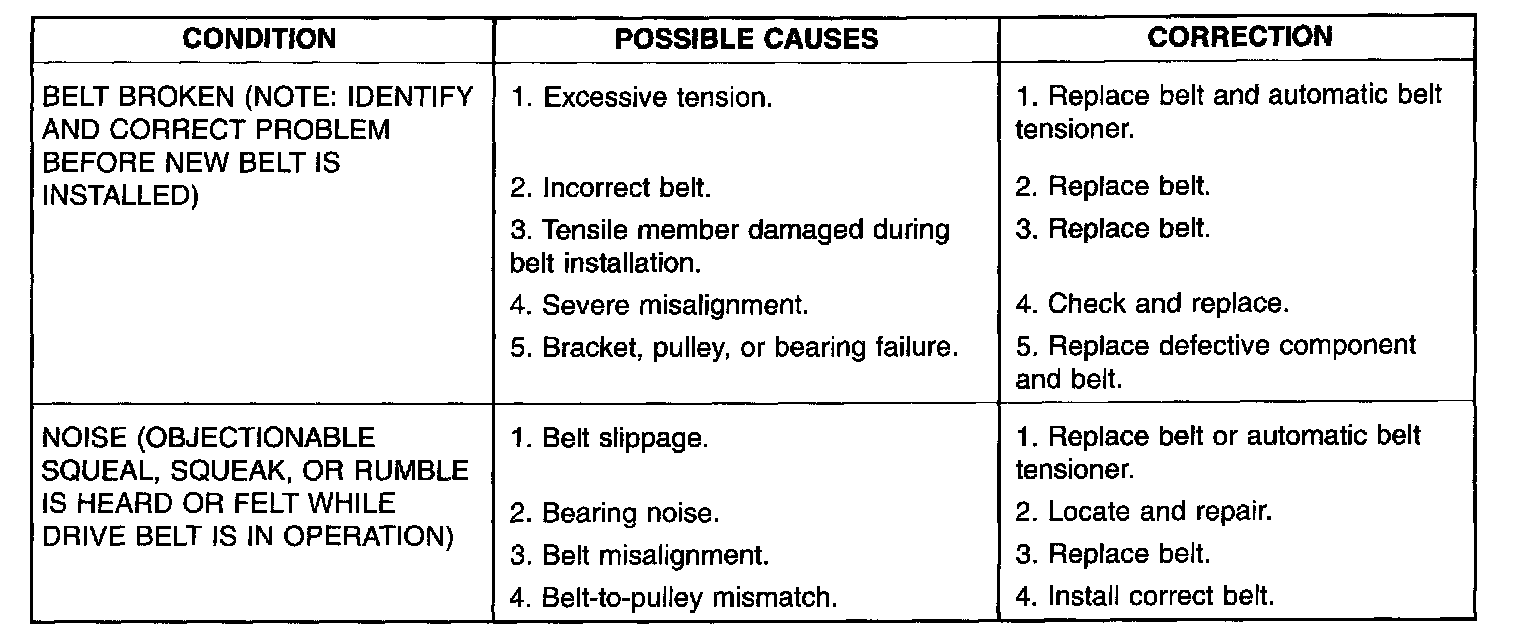

SERPENTINE DRIVE BELT DIAGNOSIS CHART - Part 1 0f 2

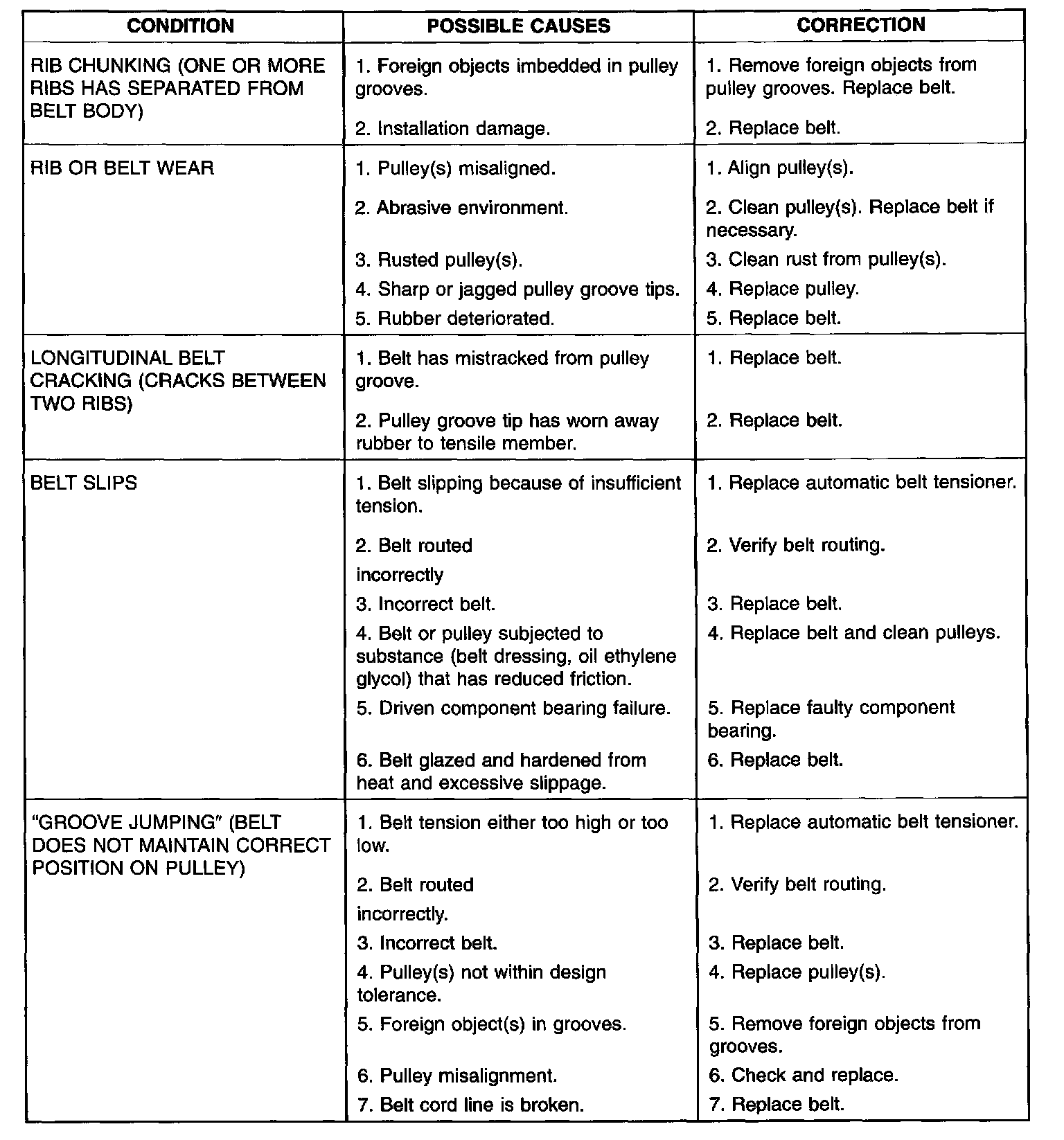

SERPENTINE DRIVE BELT DIAGNOSIS CHART - Part 2 0f 2
