Air Temperature Sensor ( Ambient / Intake ): Service and Repair
REMOVAL 1.
Disconnect electrical connector from sensor.

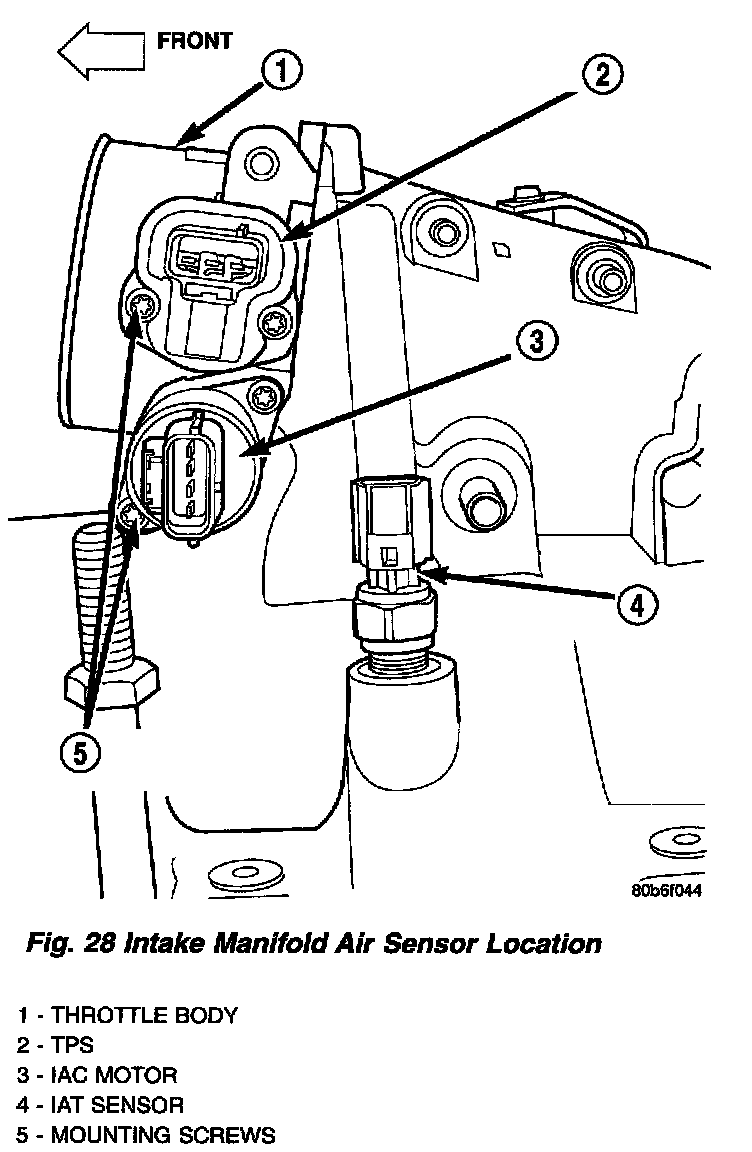

Fig.28 Intake Manifold Air Sensor Location:
2.
Remove sensor from intake manifold.
INSTALLATION 1.
Install sensor into intake manifold. Tighten sensor to
28 Nm (20 ft. Lbs.) torque.
2.
Connect electrical connector to sensor.
