Rear

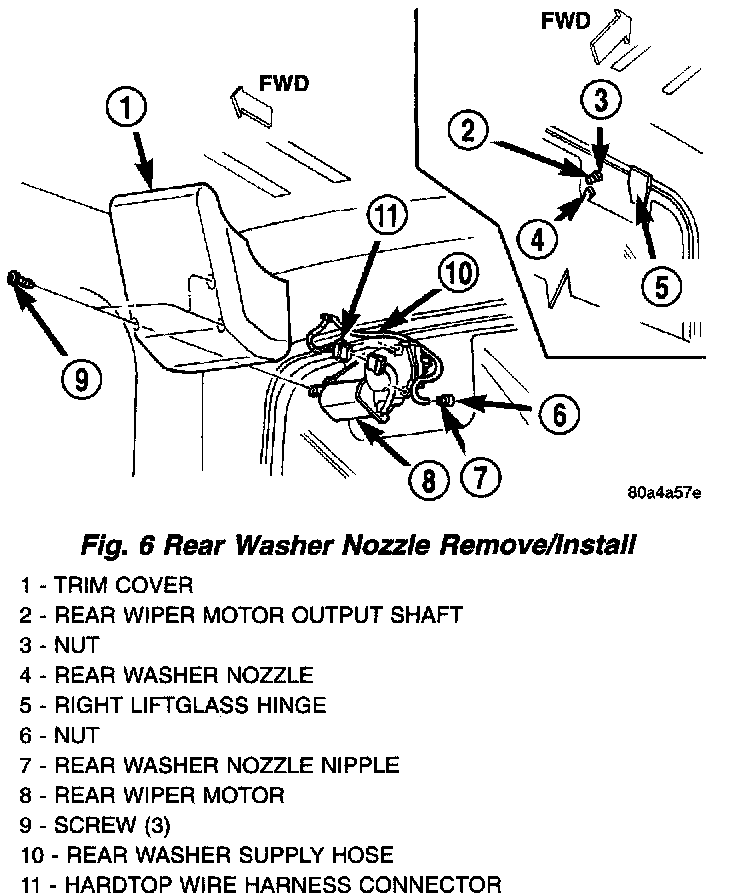

Fig.6 Rear Washer Nozzle Remove/Install:

REMOVAL
1. From the inside of the liftglass, remove the three screws that secure the trim cover to the rear wiper motor bracket.
2. Remove the trim cover from the rear wiper motor.
3. Disconnect the washer supply hose from the barbed nipple of the rear washer nozzle.
4. While holding the nozzle securely from the outside of the liftglass, from the inside of the liftglass remove the plastic nut that secures the threaded nipple of the rear washer nozzle to the liftglass.
5. From the inside of the liftglass, push the nipple of the rear washer nozzle through the hole in the lift-glass.
6. Remove the rear washer nozzle and seal from the outside of the liftglass.

INSTALLATION
1. Position the rear washer nozzle and seal onto the outside of the liftglass.
2. From the inside of the liftglass, install and tighten the nut that secures the threaded nipple of the rear washer nozzle to the liftgiass. Tighten the nut to 1 Nm (8 in. lbs.).
3. Reconnect the washer supply hose to the barbed nipple of the rear washer nozzle.
4. From the inside of the liftgiass, position the trim cover over the rear wiper motor.
5. From the inside of the liftgiass, install and tighten the three screws that secure the trim cover to the rear wiper motor bracket. Tighten the screws to 1 Nm (10 in. lbs.).
