Rear

REAR WHEEL SPEED SENSOR

REMOVAL

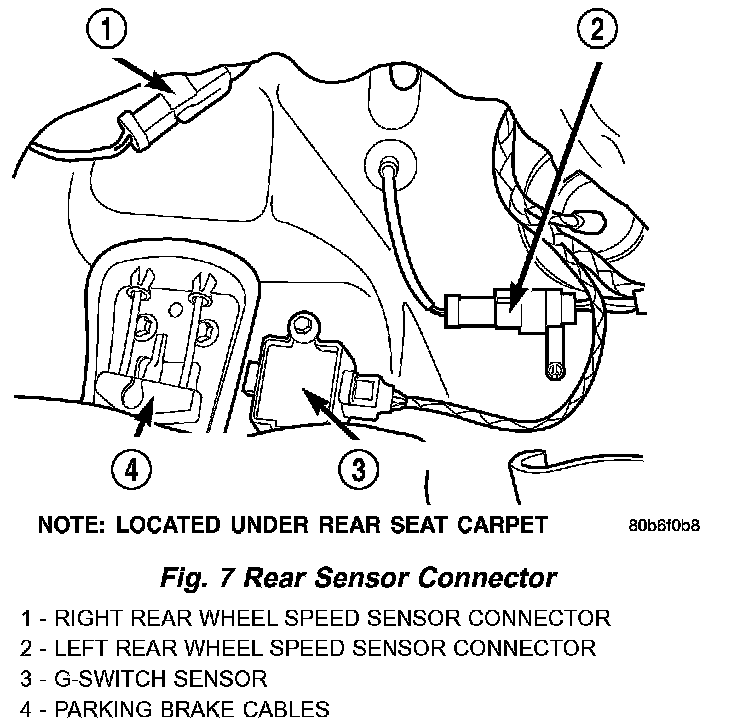

1. Raise and fold the rear seat forward. Then move the carpeting aside for access to the rear sensor connectors.





2. Disconnect the rear sensor wire at the harness connectors.
3. Push the sensor wires and grommets through the floorpan holes.
4. Raise and support the vehicle.
5. Disengage the sensor wire from the axle and the chassis brackets and from the brake line retainers.

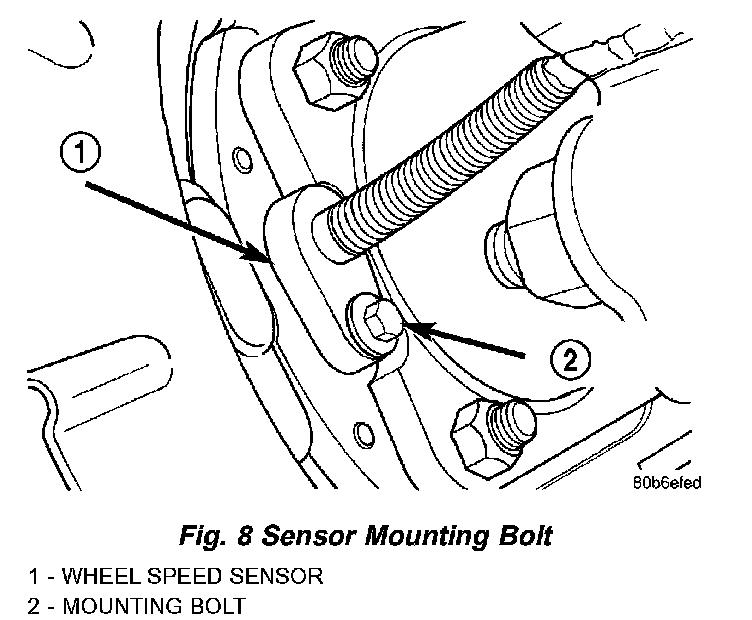

6. Remove the sensor mounting bolt from the rear brake backing plate..
7. Remove the sensor from the backing plate.

INSTALLATION





1. Insert the sensor through the backing plate.
2. Apply Mopar Lock N' Seal or Loctite 242 to the original sensor bolt. Use a new bolt if the original is worn or damaged.
3. Tighten the sensor bolt to 12 - 14 Nm (106 - 124 in. lbs.).
4. Secure the sensor wire in the brackets and the retainers on the rear brake lines. Verify that the sensor wire is secure and clear of the rotating components.
5. Route the sensor wires to the rear seat area.
6. Feed the sensor wires the through floorpan access hole and seat the sensor grommets into the floorpan.
7. Remove the support and lower the vehicle.
8. Fold the rear seat and carpet forward for access to the sensor wires and connectors.
9. Connect the sensor wires to the harness connectors.
10. Reposition the carpet and fold the rear seat down.
