Cabin Air Filter / Purifier: Service and Repair




Cowl Plenum:






Removal

1. Remove passenger wiper arm.
2. Remove plenum seal.
3. Remove passenger side cowl grille cover first, by lifting the forward edge to dis-engage the molded in locators and pulling the cowl grille forward.
4. Remove the filter and housing from the cowl.


Installation

1. Install the new filter and housing in cowl.

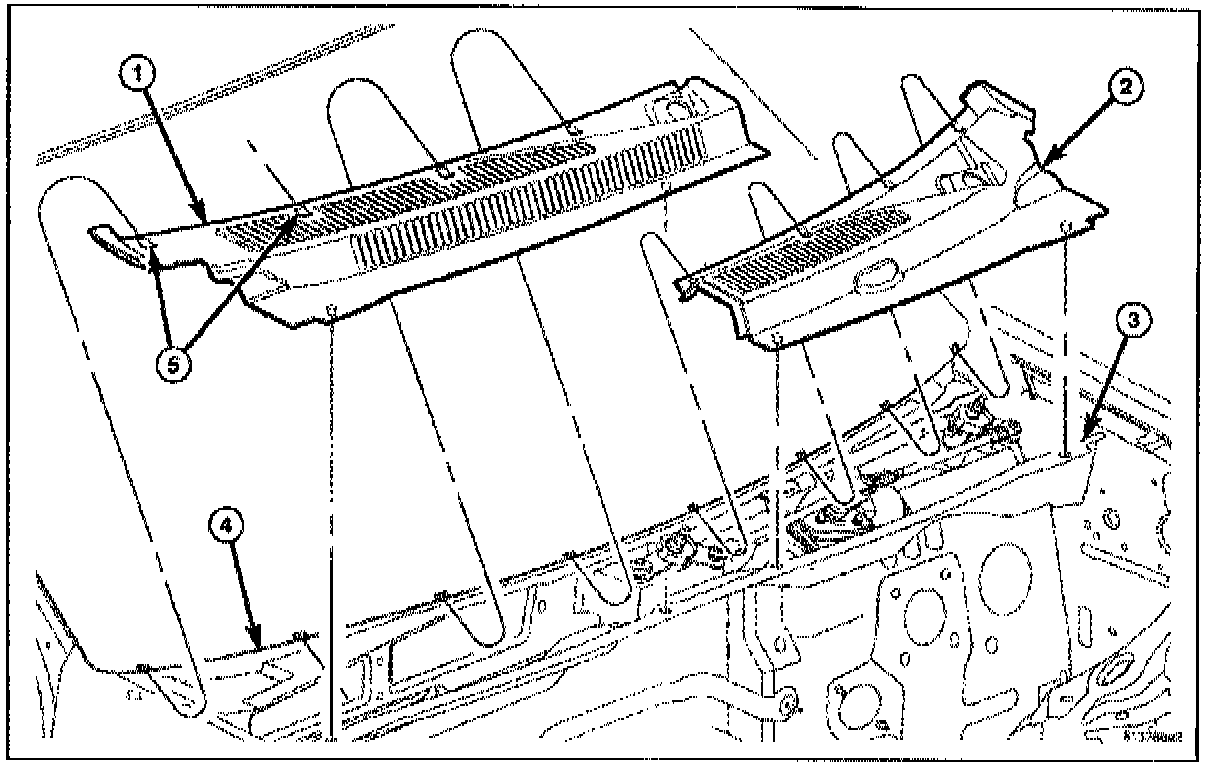

2. Install the passenger cowl panel (1) overlapping the left side (2) at the center of the vehicle.
3. Install tabs under windshield (4) and rubber seal on top of windshield and push the cowl panel rearward to engage clips fully.
4. Install locating panel pins into sheet metal (3) slide outboard for a close fit to the fender.
5. Install rear hood seal and foam blocks.
6. Install passenger wiper arm.
