System Diagram

SCHEMATICS AND DIAGRAMS

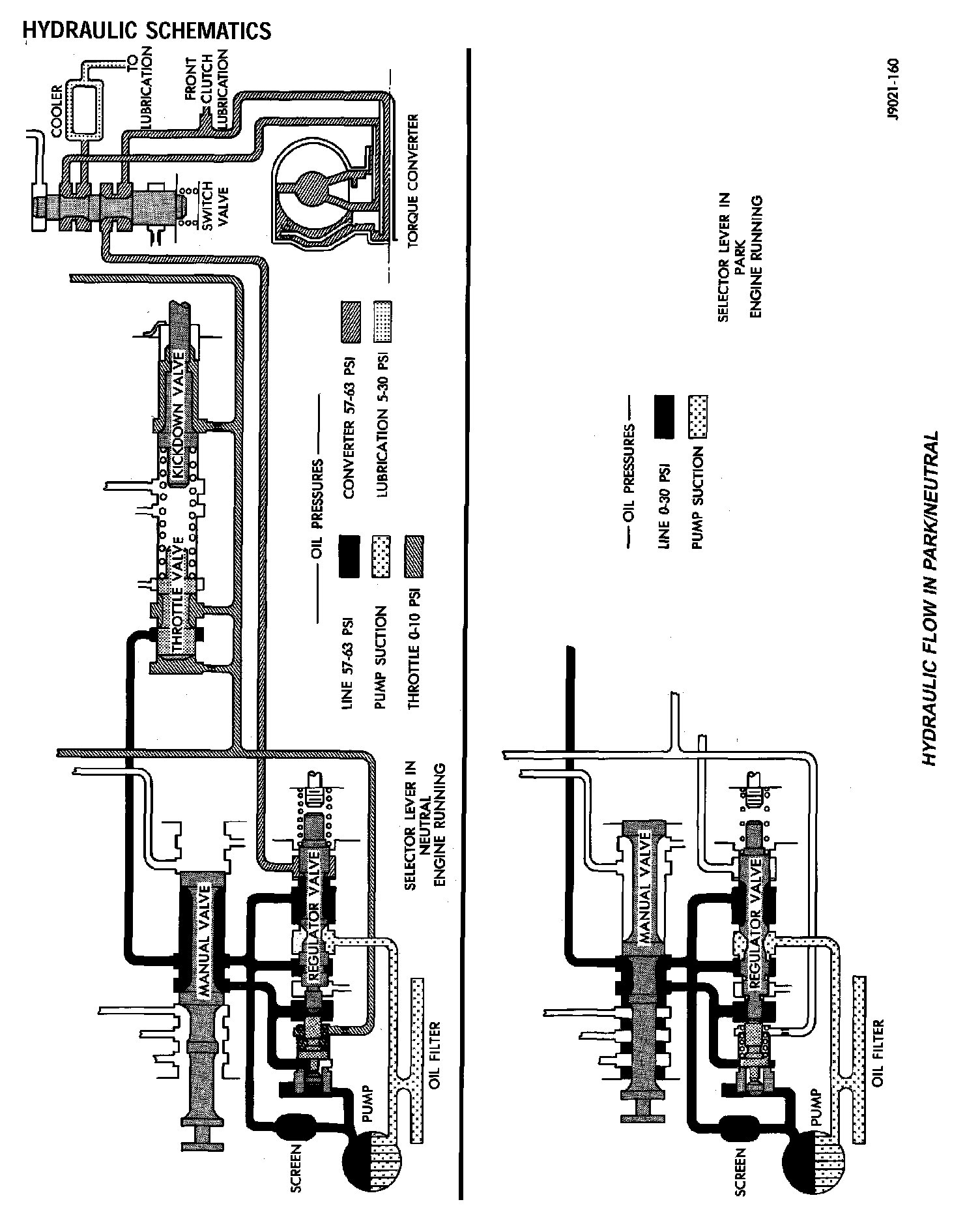

Hydraulic Flow in Park/Neutral

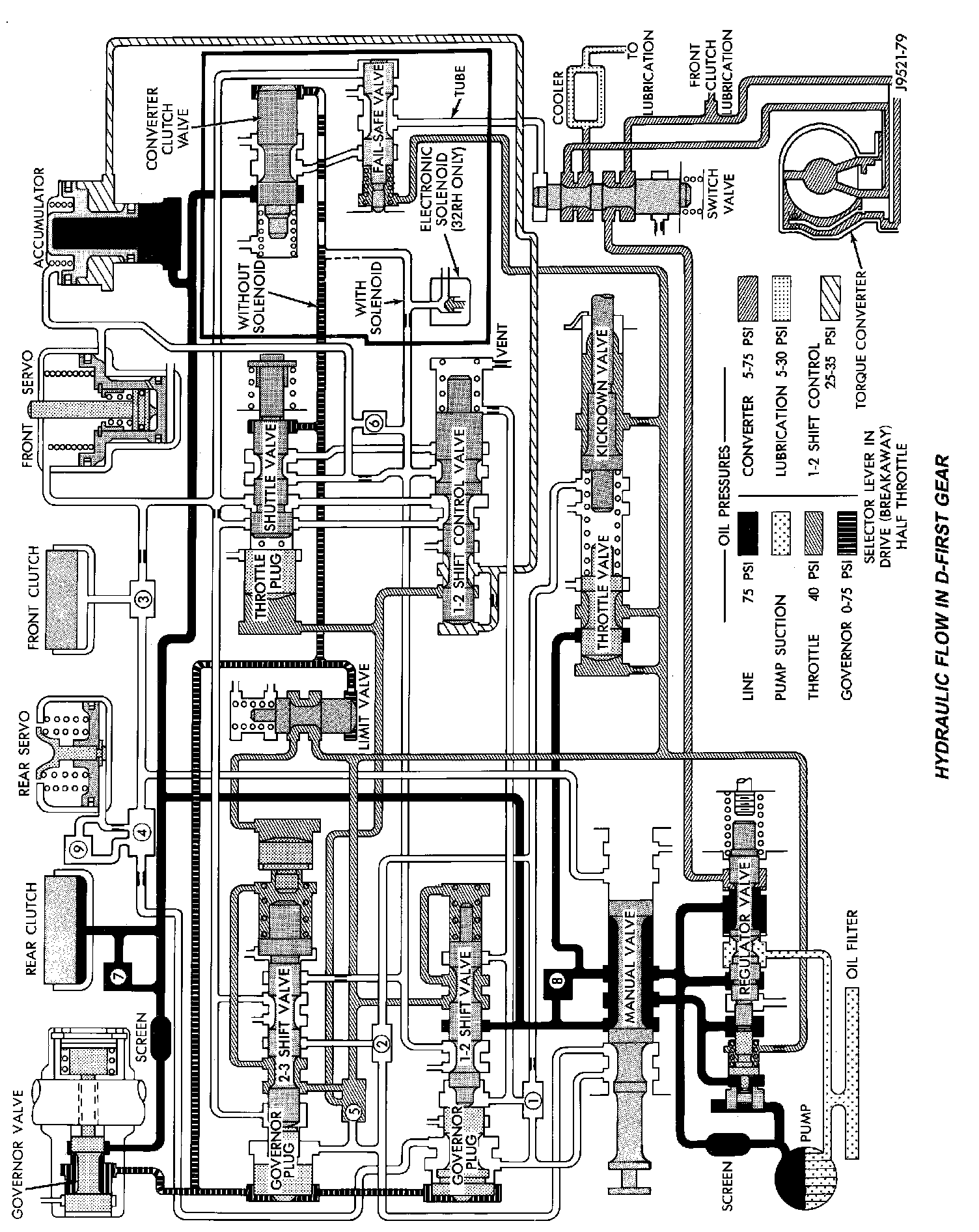

Hydraulic Flow in D-First Gear

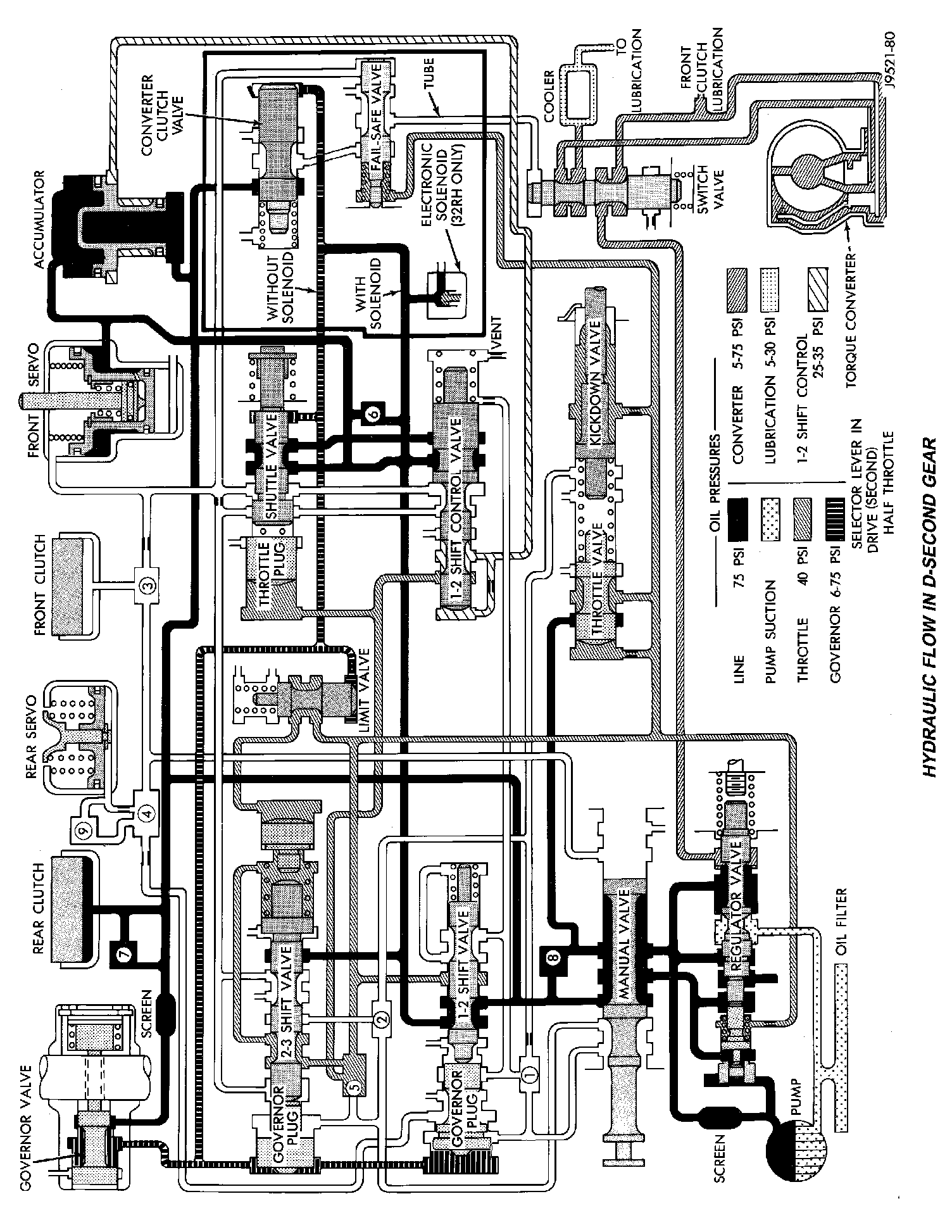

Hydraulic Flow in D-Second Gear

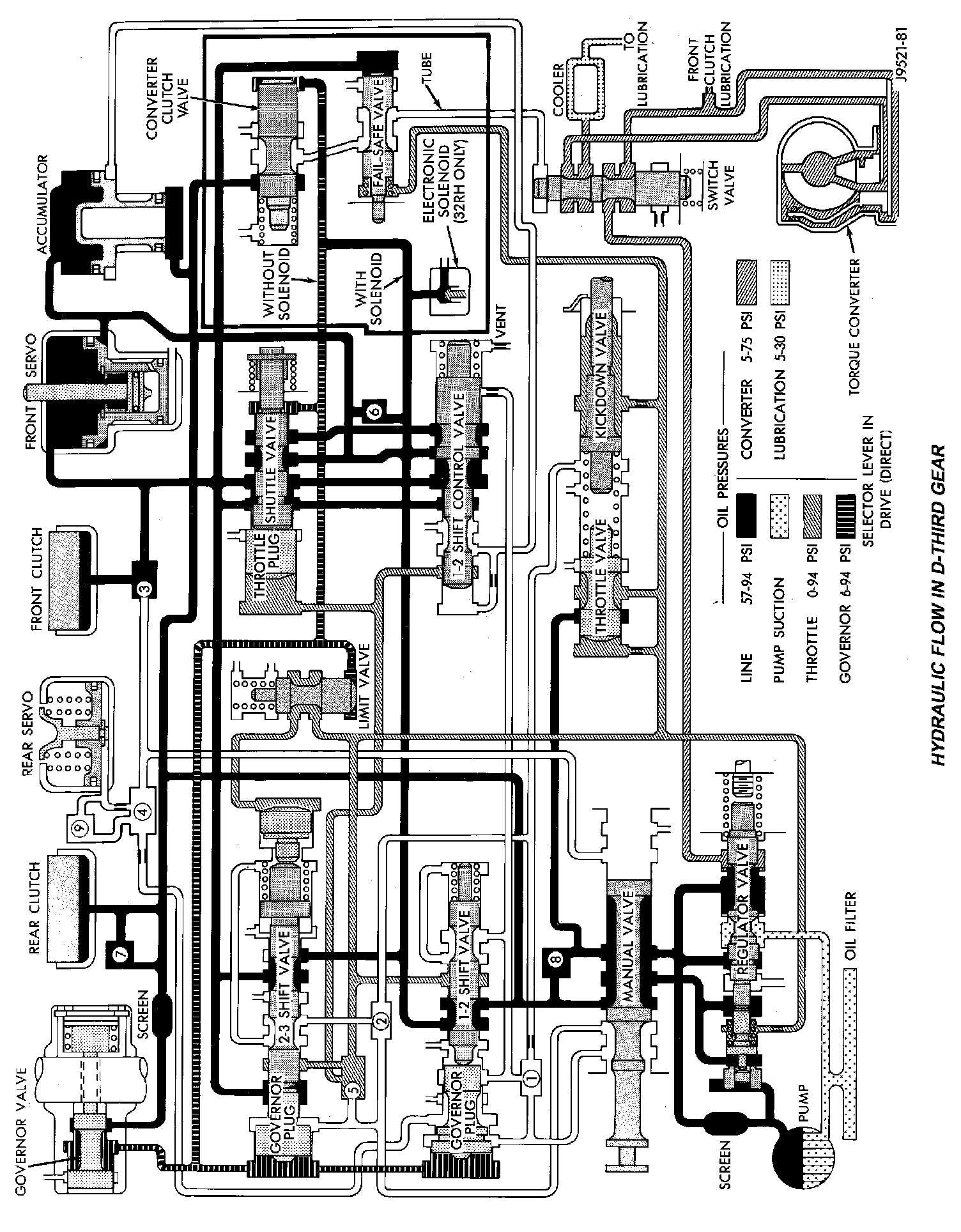

Hydraulic Flow in D-Third Gear

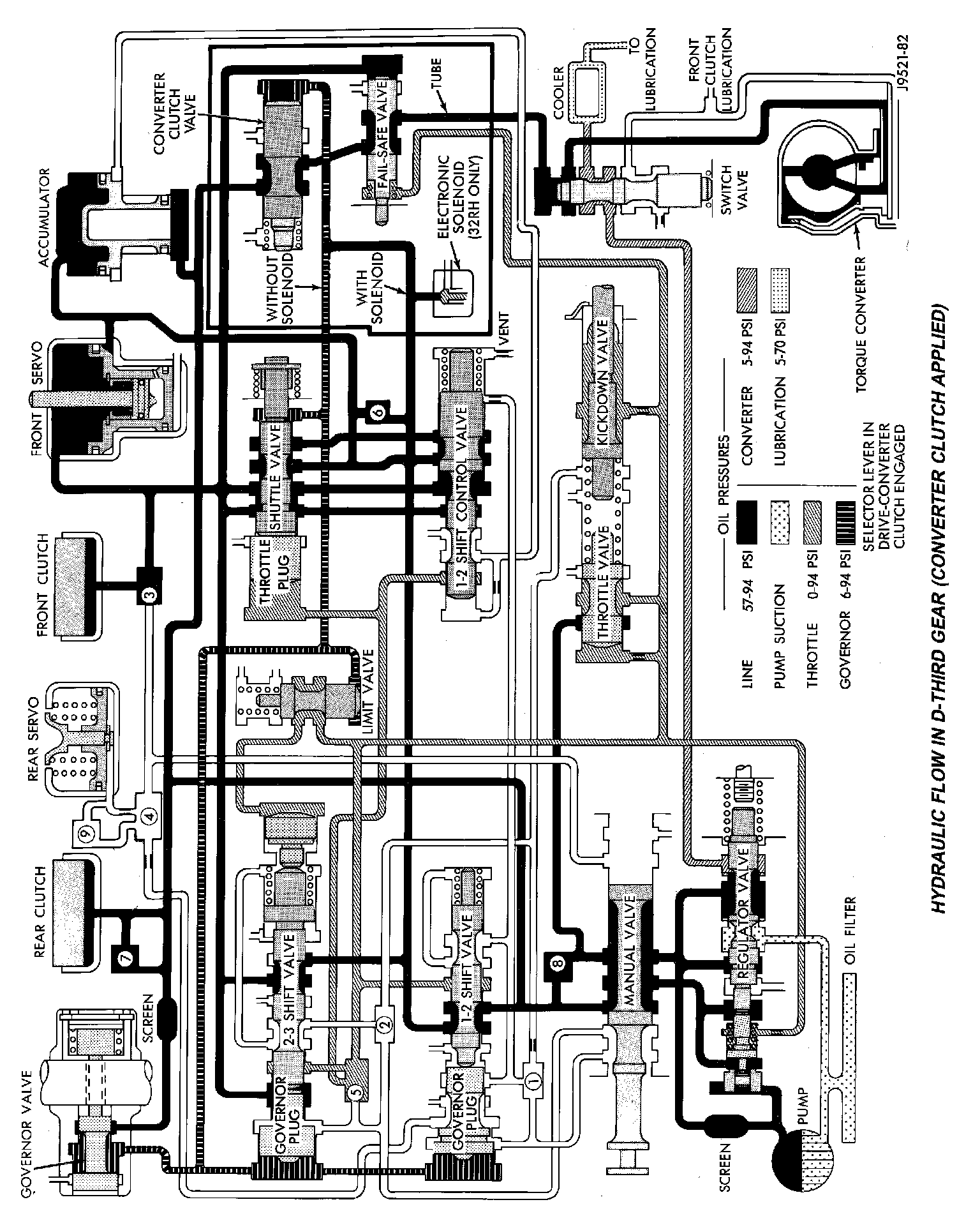

Hydraulic Flow in D-Third Gear (Converter Clutch Applied)

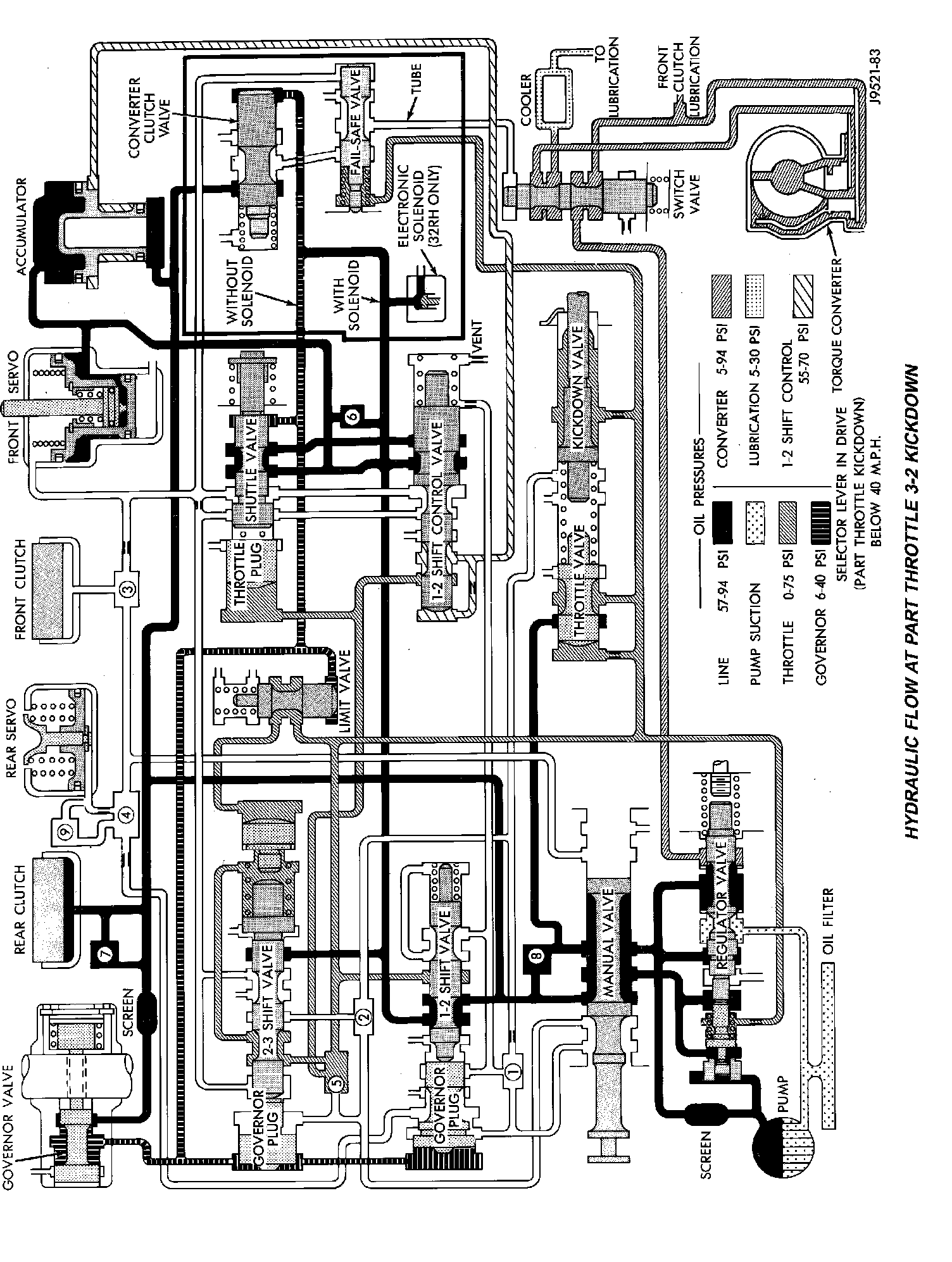

Hydraulic Flow At Part Throttle 3-2 Kickdown

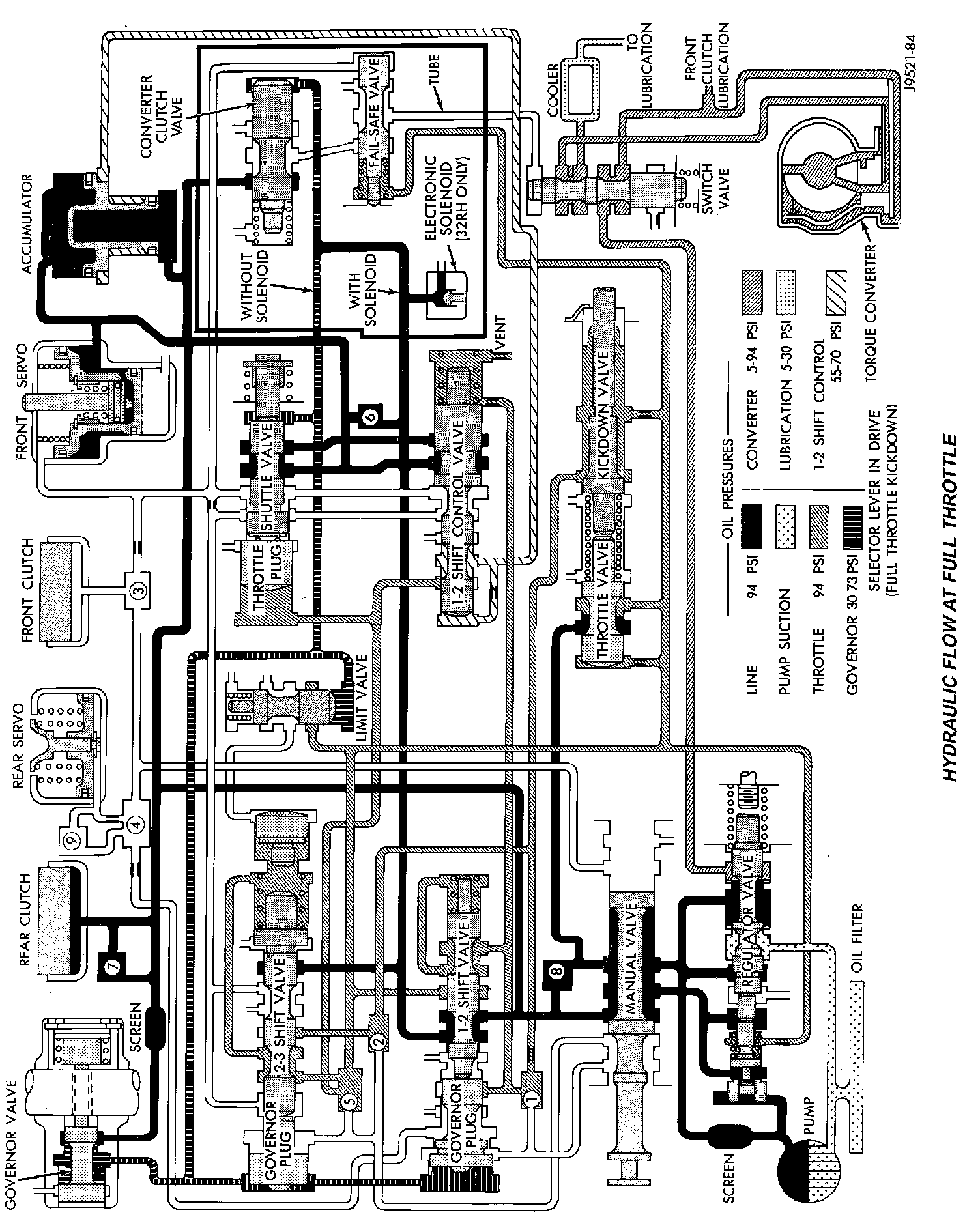

Hydraulic Flow At Full Throttle

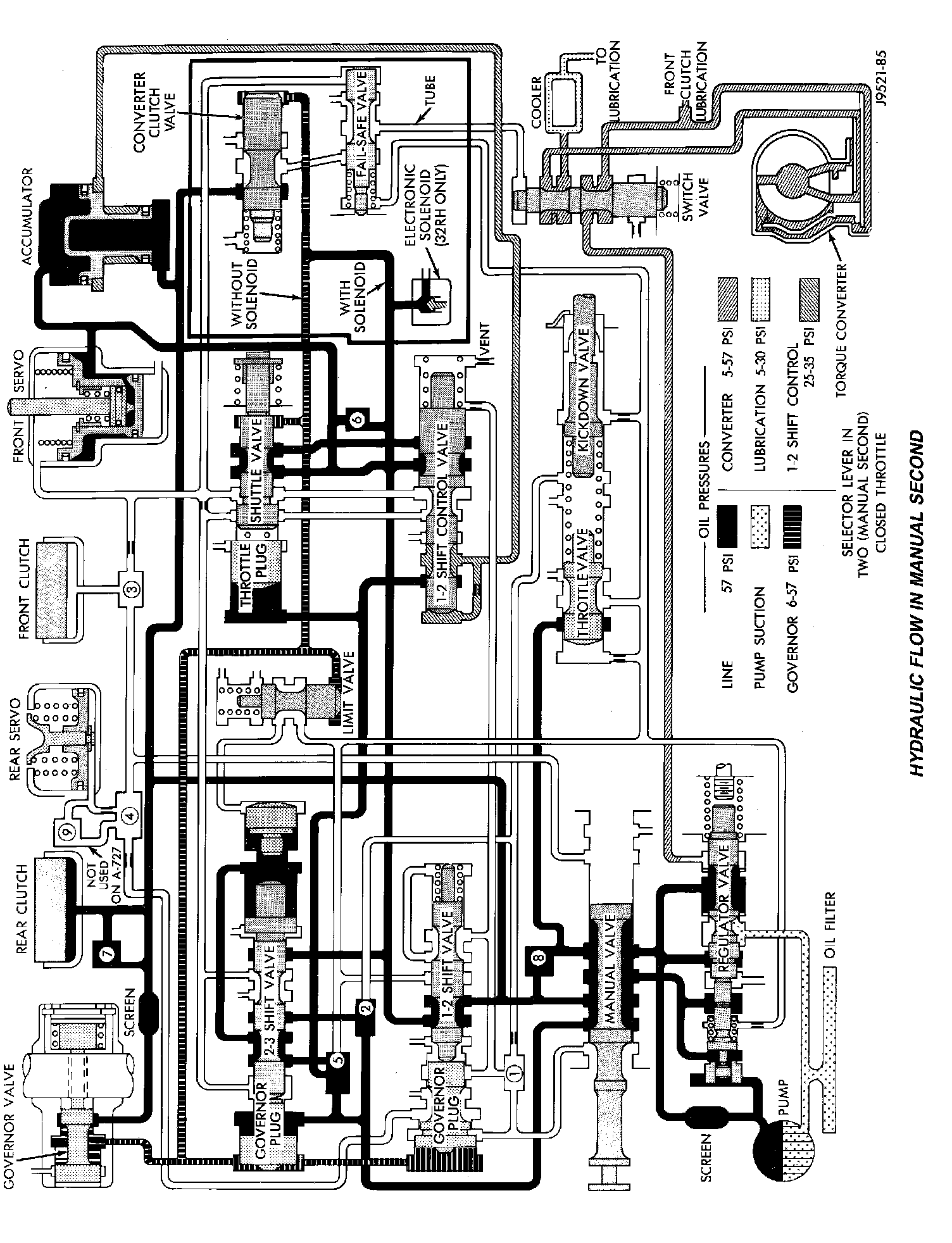

Hydraulic Flow in Manual Second

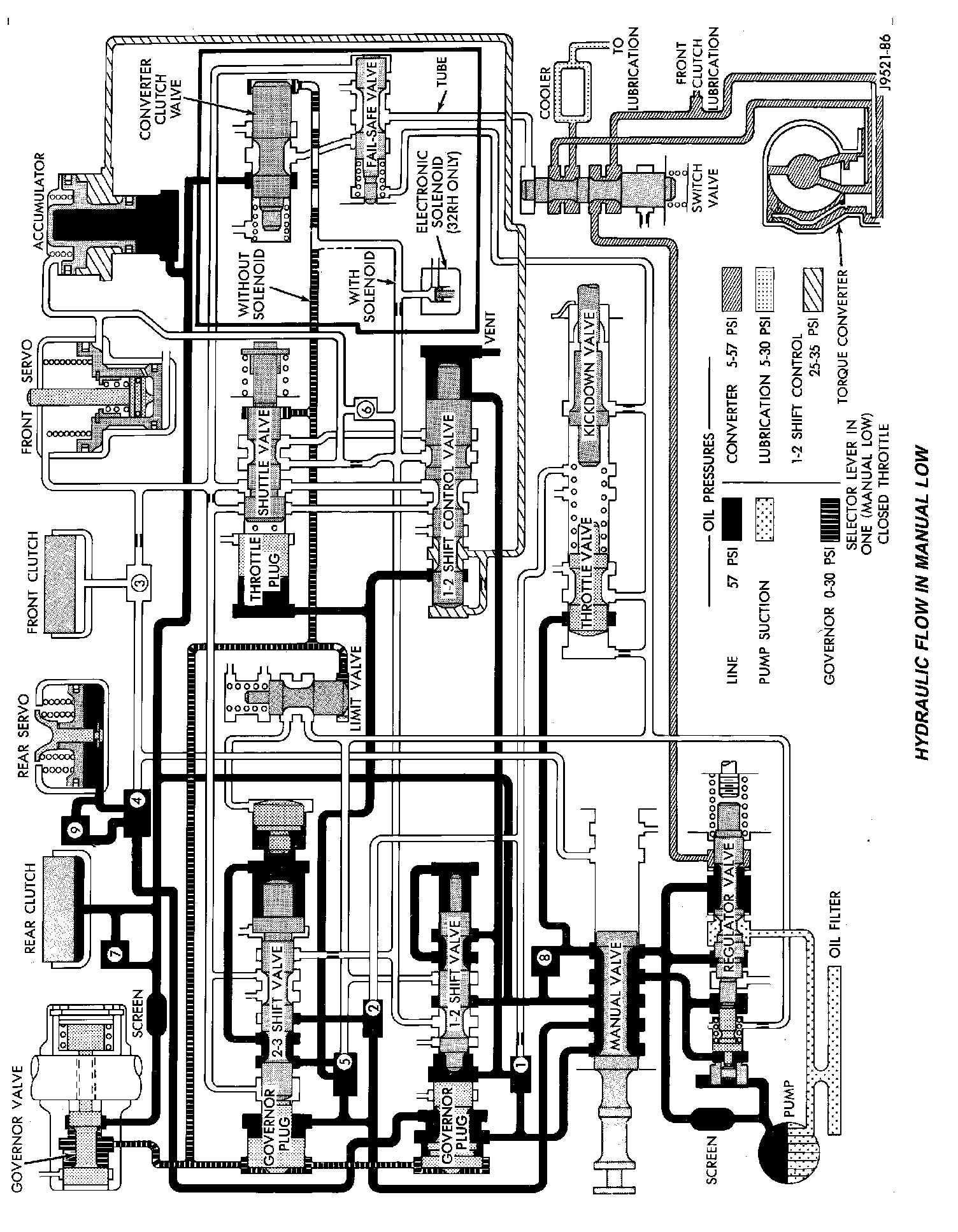

Hydraulic Flow in Manual Low

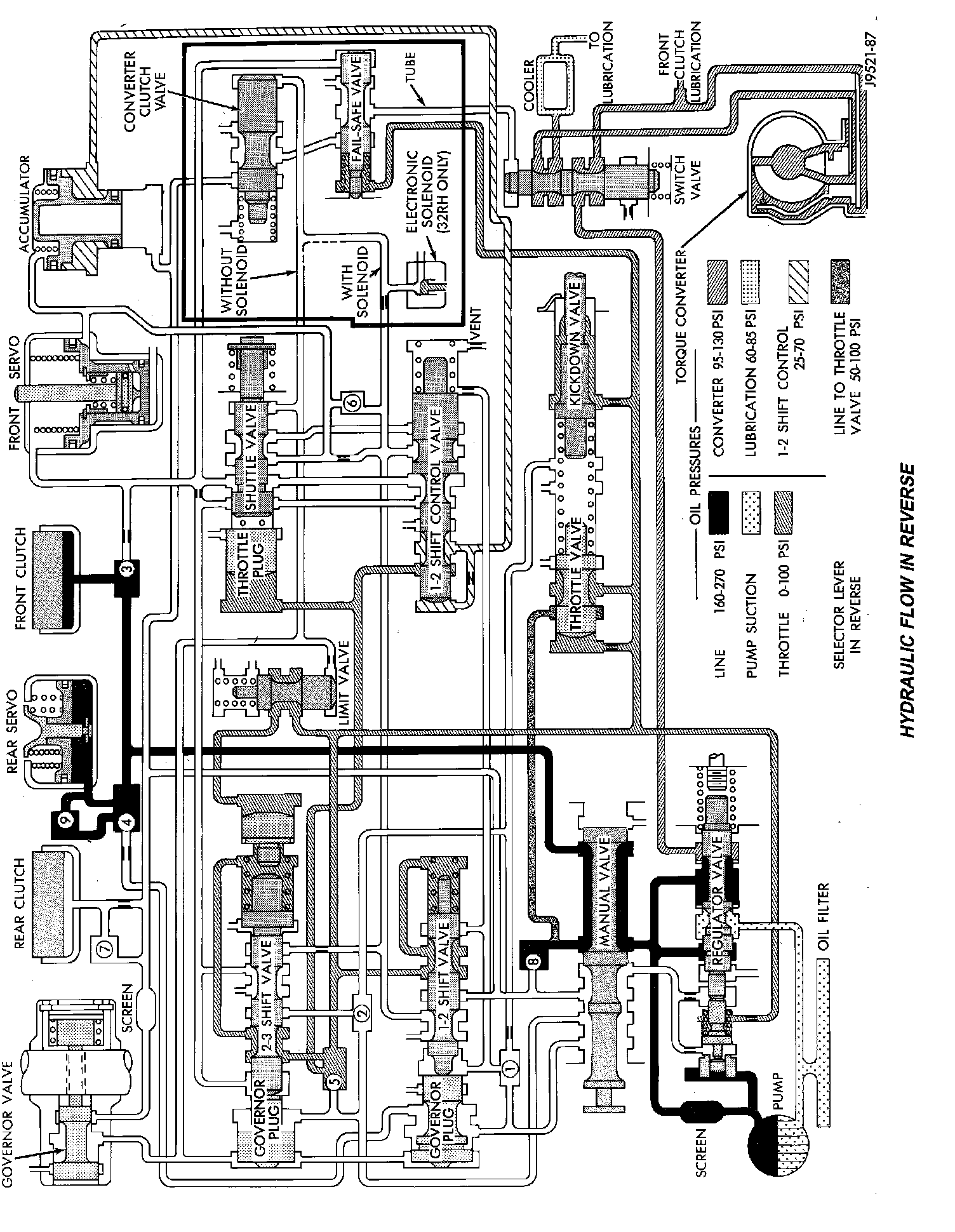

Hydraulic Flow in Reverse
