Disassembly

DISASSEMBLY

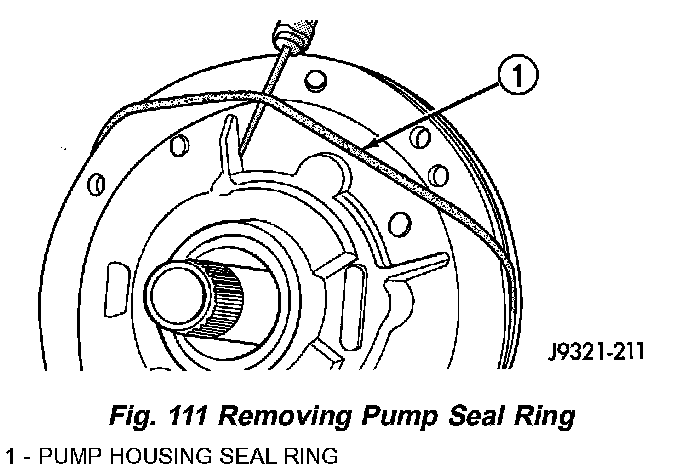

1. Remove seal ring from housing and reaction shaft support (Fig. 111).

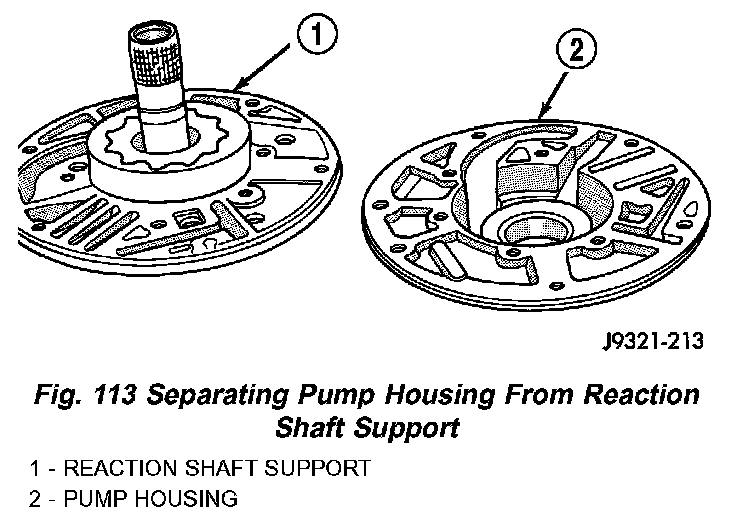

2. Mark pump housing and support assembly for alignment reference.

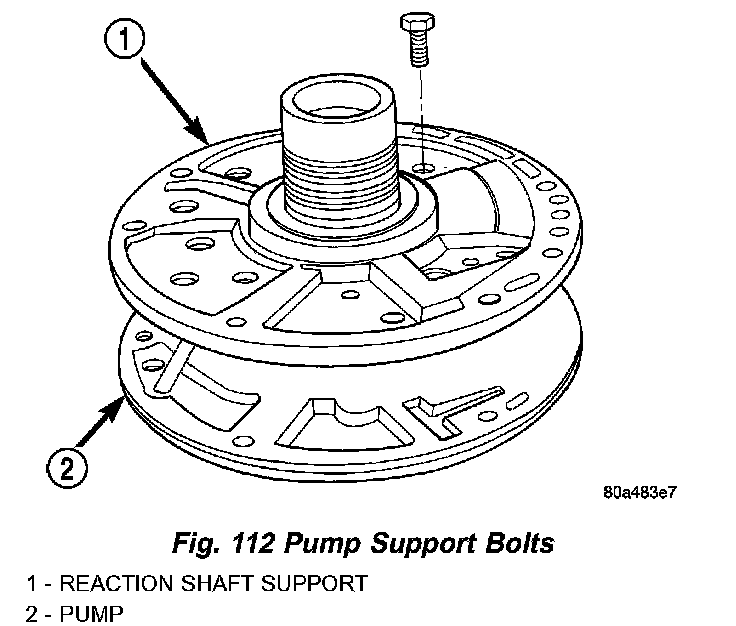

3. Remove bolts attaching pump body to support (Fig. 112).





4. Separate support from pump housing (Fig. 113).

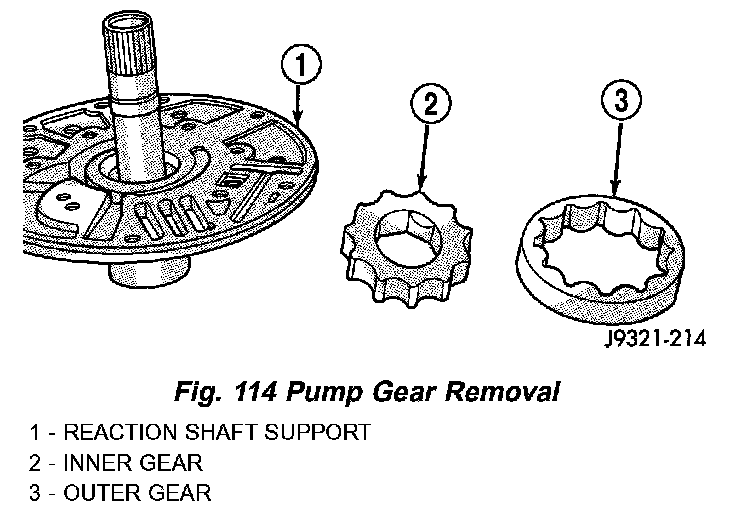

5. Remove inner and outer gears from reaction shaft support (Fig. 114).
6. If pump seal was not removed during transmission disassembly, remove seal with punch and hammer.





7. Remove front clutch thrust washer from support hub (Fig. 115).
