Power Steering Line/Hose: Service and Repair

REMOVAL
1. Drain the power steering fluid from the reservoir.
2. Remove the air box.

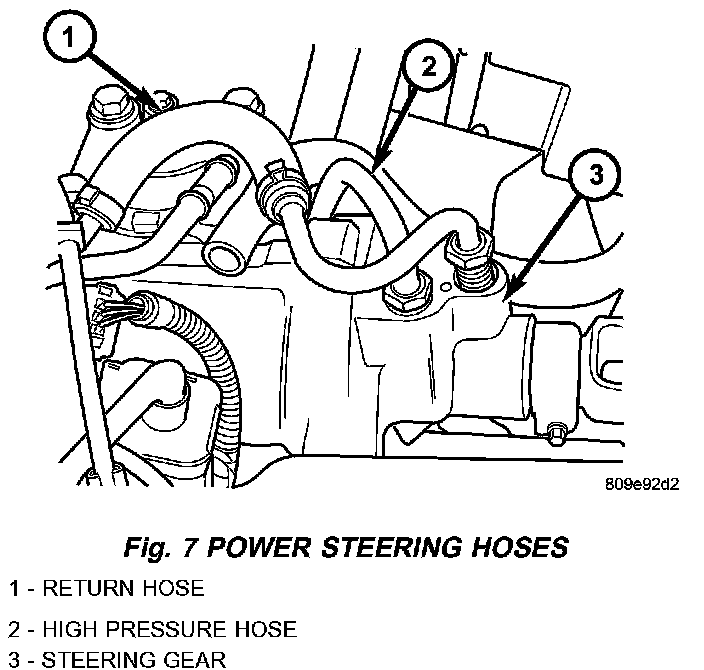

3. Disconnect the power steering pressure hose from the power steering pump and then the power steering gear.
4. Disconnect the power steering return hose from the power steering cooler and the reservoir.
5. Remove the hoses from the vehicle.

INSTALLATION
1. Install the hoses to the vehicle.
2. Reconnect the power steering return hose to the power steering cooler and the reservoir.
3. Reconnect the power steering pressure hose to the power steering pump and then the power steering gear.
4. Install the air box.
5. Refill the power steering fluid and bleed the system.
