Floor Console Ducts Replacement

REMOVAL
1. Disconnect and isolate the battery negative cable

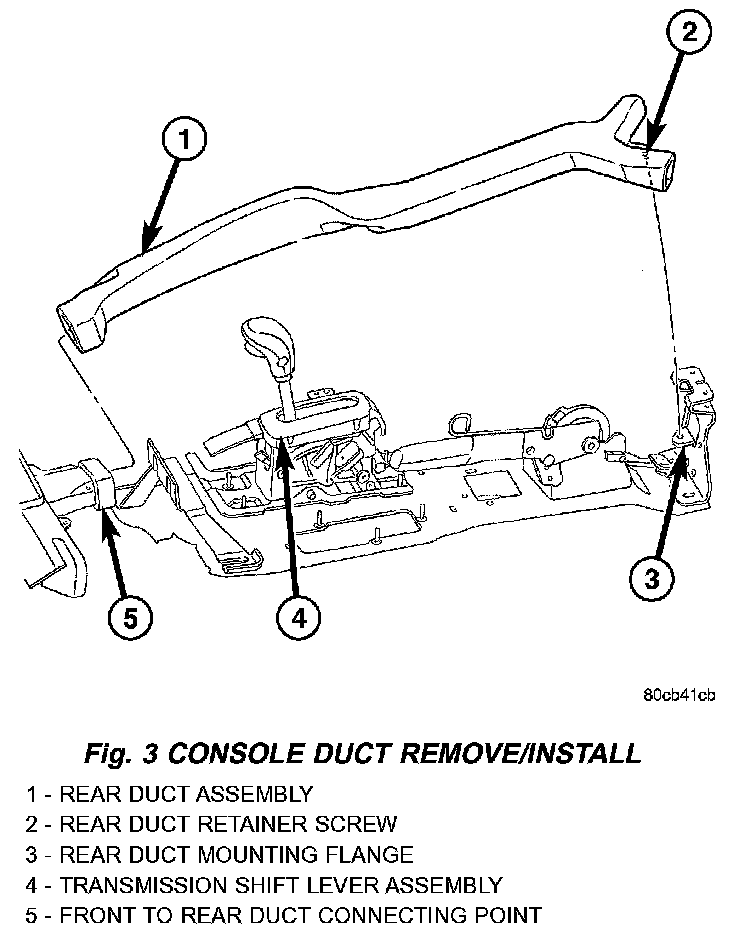

Fig.3 Console Duct Remove/Install:

2. Remove the floor console from the sled. Refer to Floor Console for the procedures.
3. Lift the rear of the console duct out of the console rear mounting bracket on the sled and slide the duct rearward to disengage it from the floor duct and adapter.
4. Remove the console rear duct from the vehicle.

INSTALLATION
1. Push the console duct forward in place on the HVAC floor duct.
2. Align the rear tab of the console duct with the hole on the sled bracket.
3. Insert the push pin in the hole on the sled.
4. Install the floor console on the floor panel transmission tunnel.
5. Connect the battery negative cable.
