Fog/Driving Lamp: Service and Repair

REMOVAL
1. Turn the front wheels full lock in the direction of the fog lamp bulb that is to be changed.
2. Disconnect and isolate the battery negative cable.

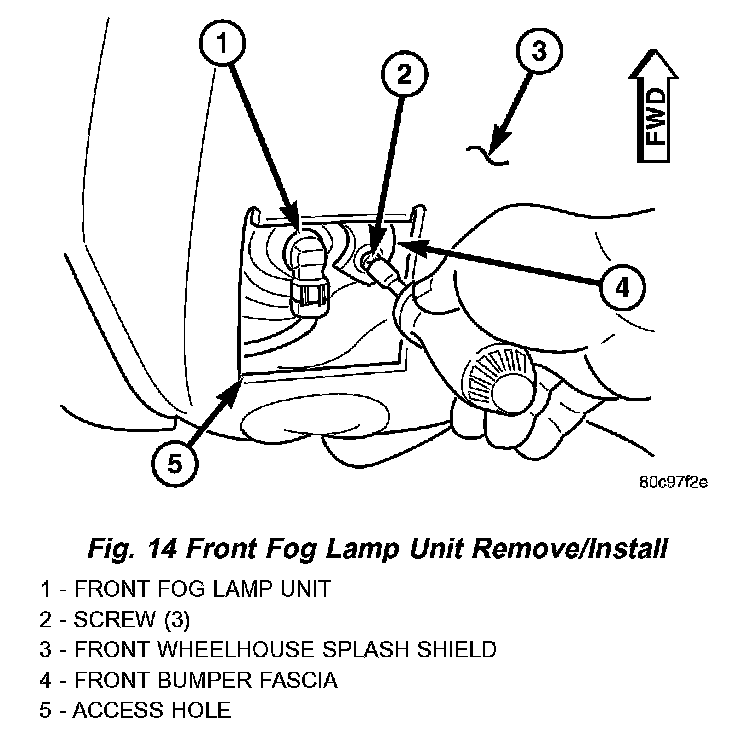

Fig.14 Front Fog Lamp Unit Remove/Install:




3. Reach into the front wheel opening to unsnap and lift the cover over the access hole at the front of the front wheelhouse splash shield.
4. Reach through the access hole to remove the three screws that secure the front fog lamp unit to the front bumper fascia.

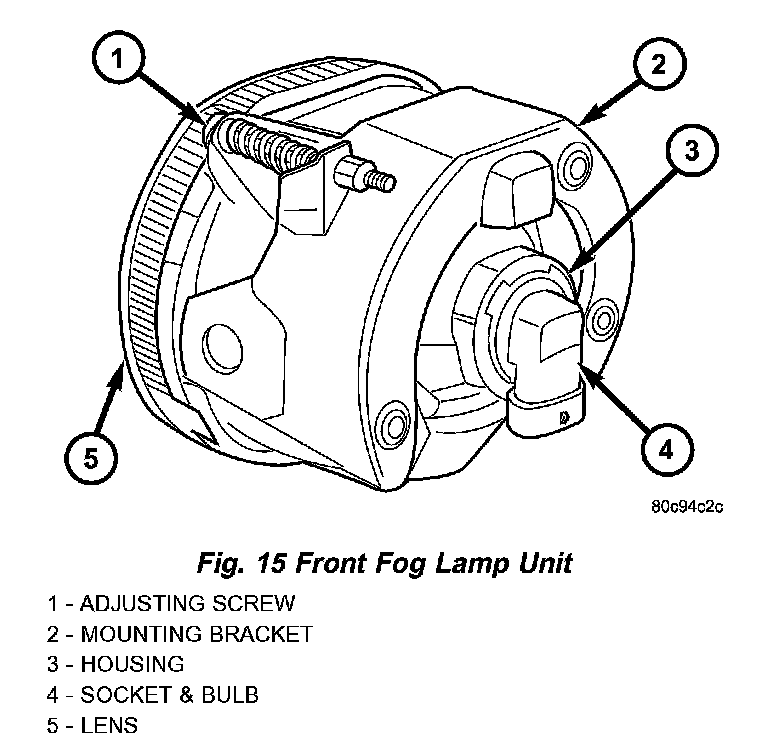

Fig.15 Front Fog Lamp Unit:




5. From the front of the vehicle, pull the front fog lamp unit out of the front bumper fascia far enough to access and disconnect the wire harness connector for the front fog lamp unit from the lamp socket connector receptacle.
6. Remove the front fog lamp unit from the front bumper fascia.

INSTALLATION
1. Position the front fog lamp unit to the front bumper fascia.
2. Reconnect the wire harness connector for the front fog lamp to the lamp socket connector receptacle.
3. Position the front fog lamp unit into the front bumper fascia.
4. Reach into the front wheel opening and through the access hole to install and tighten the three screws that secure the front fog lamp unit housing to the front bumper fascia. Tighten the screws to 3 Nm (25 in. lbs.).
5. Lower and snap shut the cover over the access hole at the front of the front wheelhouse splash shield.
6. Reconnect the battery negative cable.
7. Confirm proper front fog lamp unit alignment. (Refer to LAMPS/LIGHTING - EXTERIOR/FRONT FOG LAMP UNIT - ADJUSTMENTS).
