System Specifications

NV1500 Manual Transmission:

INSTALLATION / NV1500 Manual Transmission

Clutch Housing To Trans Bolts 46 Nm (34 ft. lbs.).
Clutch Housing To Engine Bolts 58 Nm (43 ft. lbs.)
Shift Tower Bolts 14 Nm (10 ft. lbs.)
crossmember bolts 41 Nm (31 ft. lbs.)
transmission mount bolts 54 Nm (40 ft. lbs.)



ASSEMBLY / NV1500 Manual Transmission

retainer bolts 22 Nm (16 ft. lbs.).
large idler shaft bolt 43 Nm (31.7 ft. lbs.)
small idler shaft bolt 22 Nm (16.2 ft. lbs.)
housing attaching bolts 34 Nm (25 ft. lbs.)
shim cap bolts 29 Nm (21.4 ft. lbs.).
Countershaft Bearing Shim Cap 41 Nm (30 ft. lbs.)

Bearing Retainer-Rear 34 Nm (25 ft. lbs.)
Bearing Retainer-Front 41 Nm (30 ft. lbs.)
bearing retainer bolts 29 Nm (21.4 ft. lbs.)
shift tower bolt 8.5 Nm (75.2 in. lbs.).

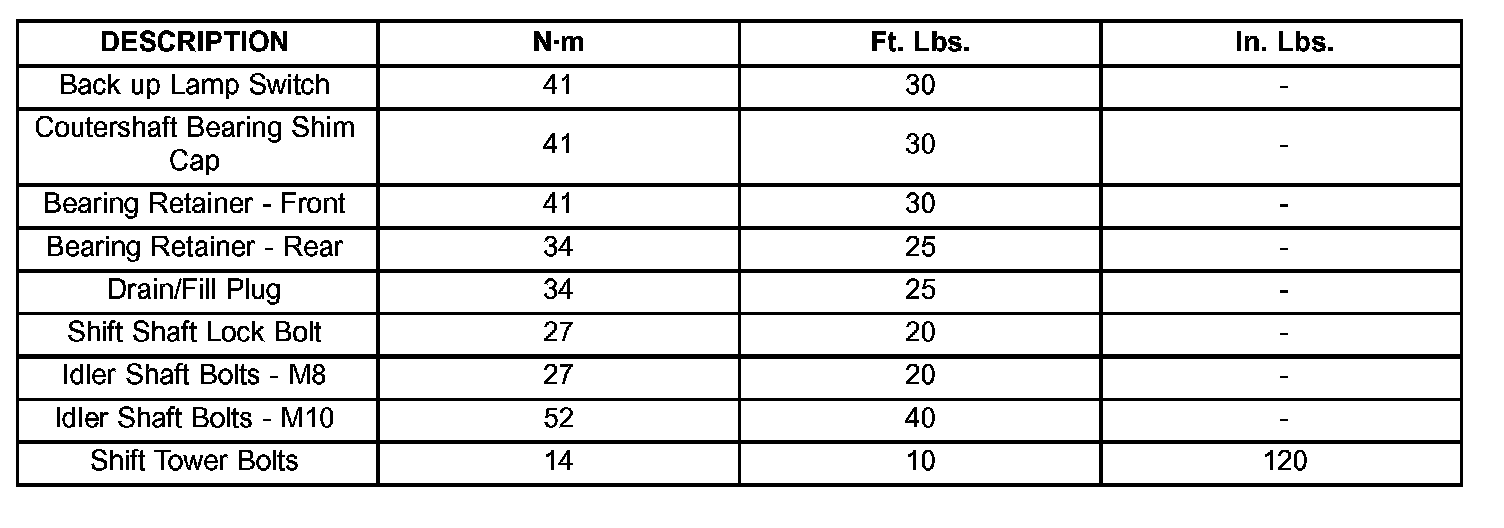

Drain/Fill Plug 34 Nm (25 ft. lbs.)


Idler Shaft Bolts:
M8 27 Nm (20 ft. lbs.)
M10 52 Nm (40 ft. lbs.)
