Automatic Transmission/Transaxle: Application and ID

TRANSMISSION IDENTIFICATION - 45RFE

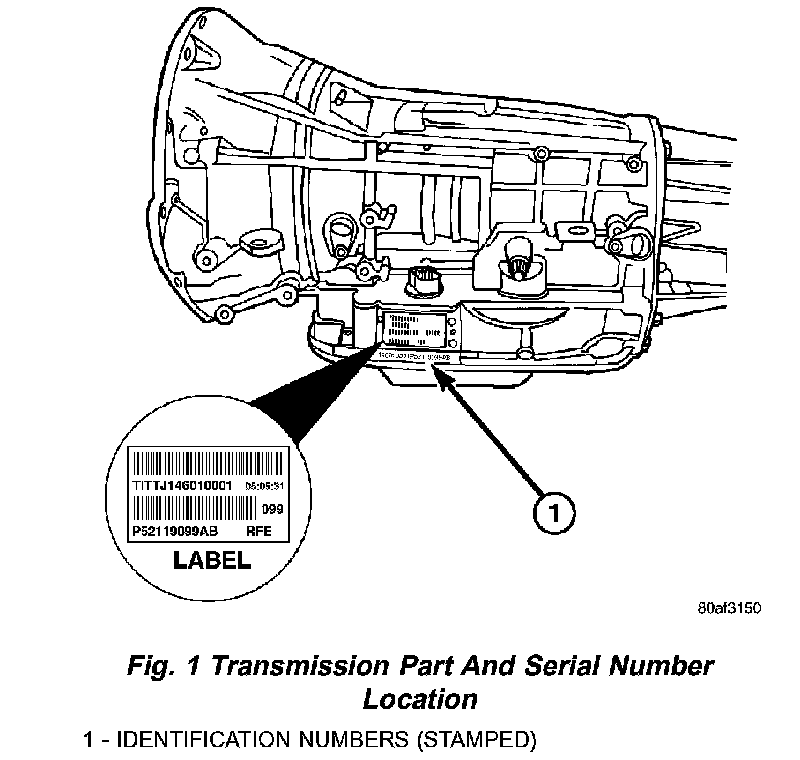

Transmission identification numbers are stamped on the left side of the case just above the oil pan sealing surface (Fig. 1).

Refer to this information when ordering replacement parts. A label is attached to the transmission case above the stamped numbers.

The label gives additional information, which may also be necessary for identification purposes.
