Fog Lamp

CAUTION: Do not touch the bulb glass with fingers or other oily surfaces. Reduced bulb life will result.

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the screws that attach the bezel reflector.
3. Separate the bezel reflector assembly from the lamp housing.
4. Disconnect the electrical connector.
5. Squeeze the bulb retainer together to disengage it from the reflector.

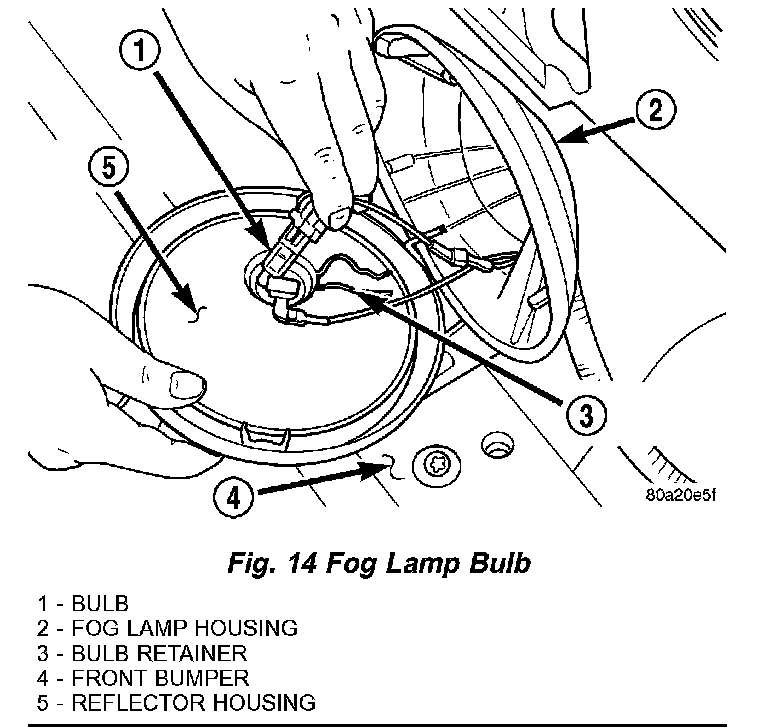

Fig. 14 Fog Lamp Bulb:

6. Remove the bulb/element from the reflector.

INSTALLATION
1. Connect the electrical connector.
2. Position the bulb/element in the reflector.
3. Engage the bulb retainer.
4. Position the bezel reflector assembly in the lamp housing.
5. Install the screws that attach the bezel reflector assembly to the lamp housing.
6. Connect the battery negative cable.
