No Response From PCM With A No Start Condition

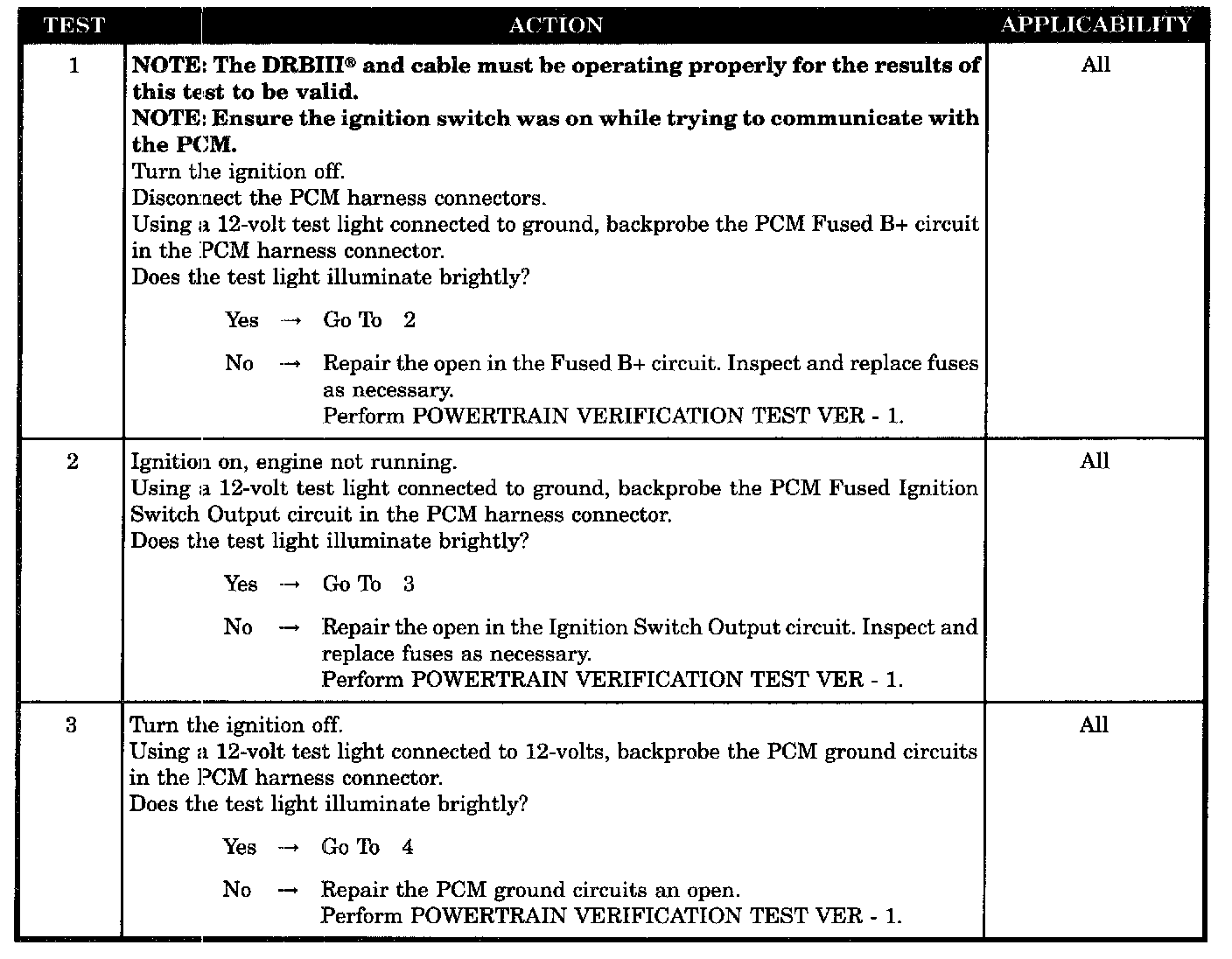

Test 1 - 3:

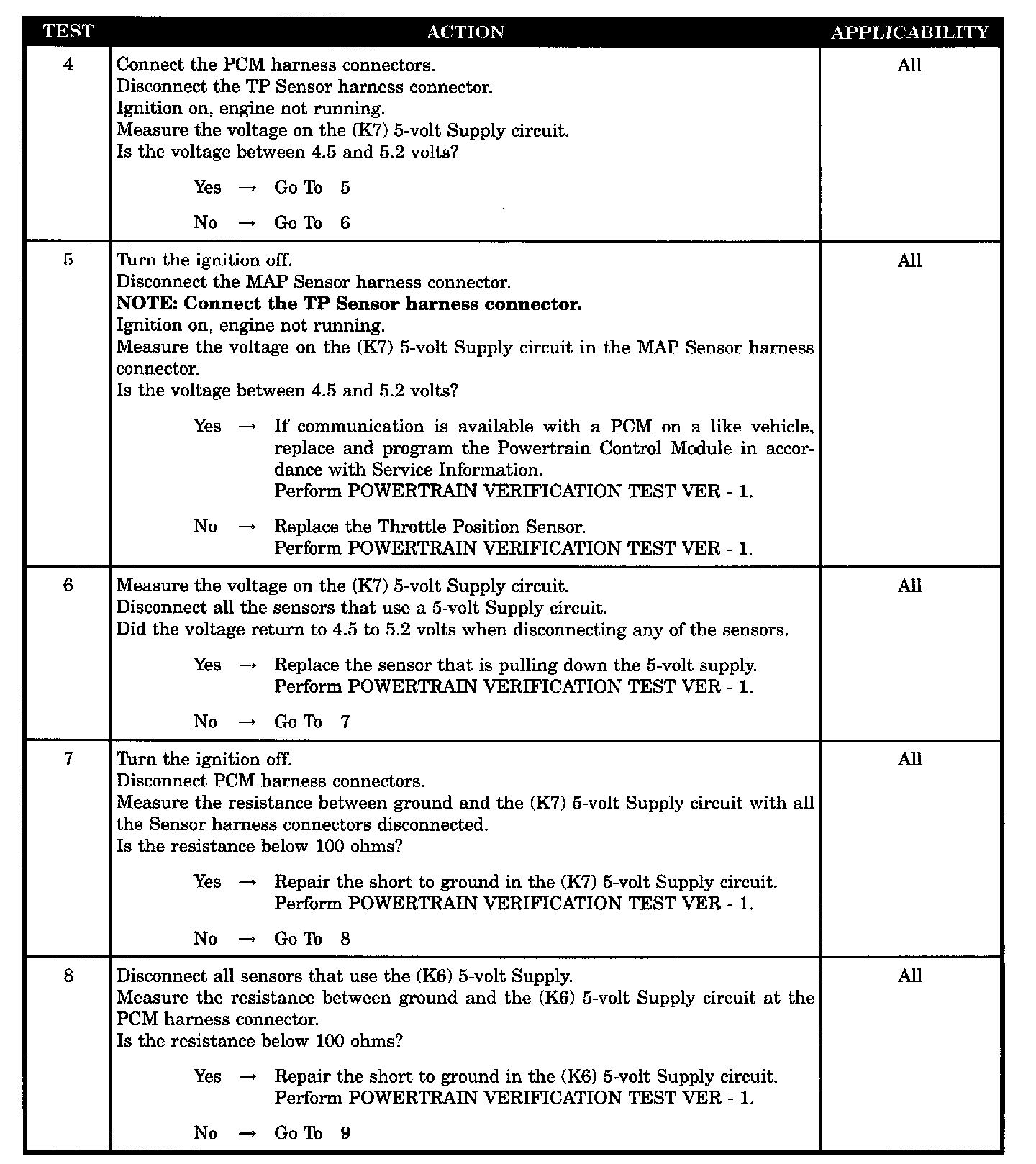

Test 4 - 8:
Test 9:
SYMPTOM NO RESPONSE FROM
PCM WITH A NO START CONDITION
POSSIBLE CAUSES -
PCM fused B+ circuit
-
PCM no response
-
PCM fused
ignition switch output circuit
-
PCM ground circuits
-
TP sensor 5-volt sensor open or shorted
-
(K7) 5-volt supply circuit short to ground
-
(K6) 5-volt circuit supply shorted to ground
-
PCM
