Audio Control Relay: Service and Repair

AMPLIFIER CHOKE AND RELAY

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the left speaker bezel from the instrument panel.
3. Remove left speaker from instrument panel (Refer to AUDIO/SPEAKER - REMOVAL).

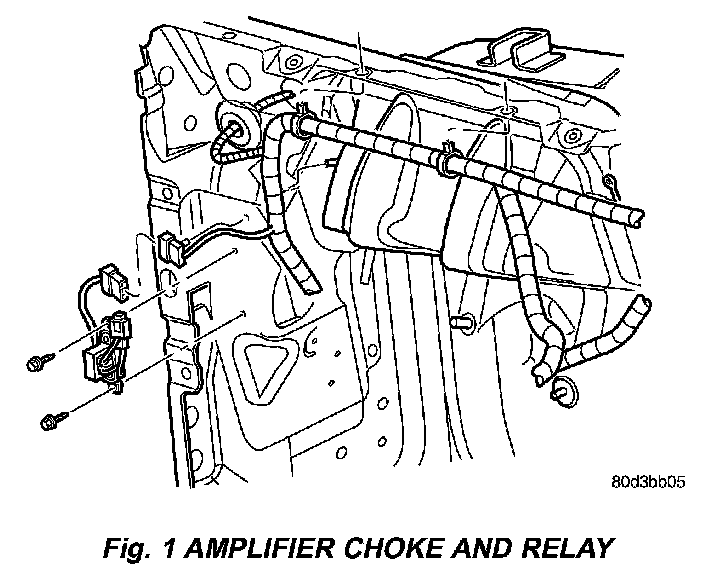

Fig.1 Amplifier Choke And Relay:




4. Remove mounting screws.
5. Disconnect electrical harness connector and remove from instrument panel.

INSTALLATION
1. Connect electrical harness connector and install to instrument panel.
2. Install mounting screws. Tighten to 2 Nm (20 in. lbs.).
3. Install speaker (Refer to AUDIO/SPEAKER - INSTALLATION).
4. Install speaker bezel.
5. Connect battery negative cable.
