Daytime Running Lamp Control Unit: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Disconnect the wire harness connector from the module.

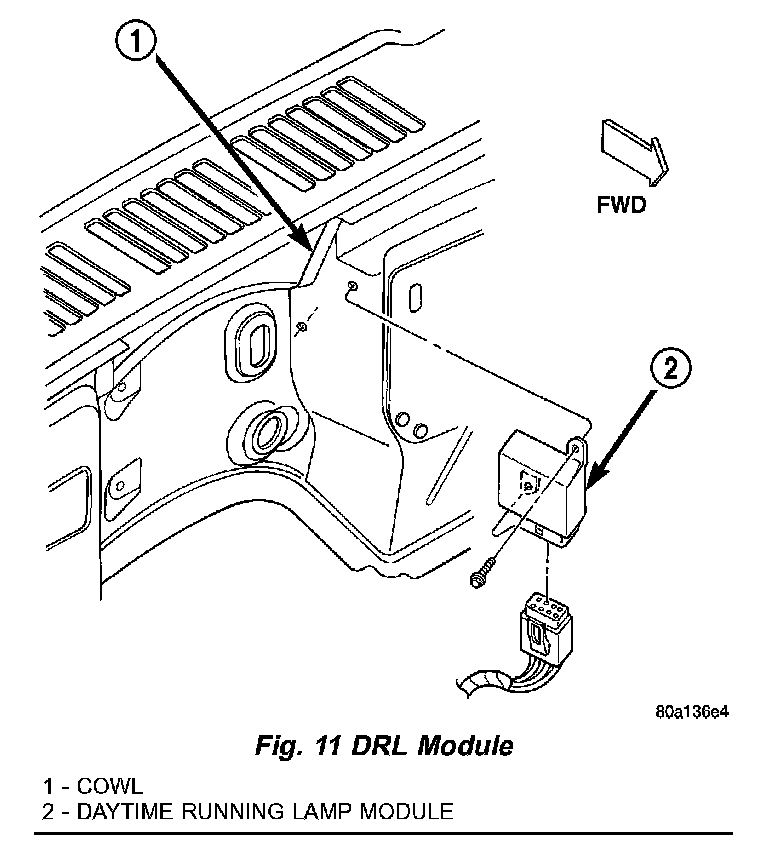

Fig. 11 DRL Module:

3. Remove the screws that attach the module to the cowl.
4. Separate the module from the vehicle.

INSTALLATION
1. Position the DRL module on the cowl.
2. Install the screws
3. Connect the wire harness connector to the module
4. Connect the battery negative cable.
