Disassembly and Assembly

DISASSEMBLY
1. Install Plug C-293-3 into the differential axle shaft hole.





2. Remove differential case bearings with Puller 6444, Puller Rods 6444-3 and Puller Flange 6444-1. Position puller (Fig. 37) on the differential.





3. Position Puller Jaws 6444-7 (Fig. 38) around the case bearing and puller flange.





4. Position Puller Collar 666-8 (Fig. 39) around the puller jaws.
5. Tighten the puller nut and remove differential case bearing.

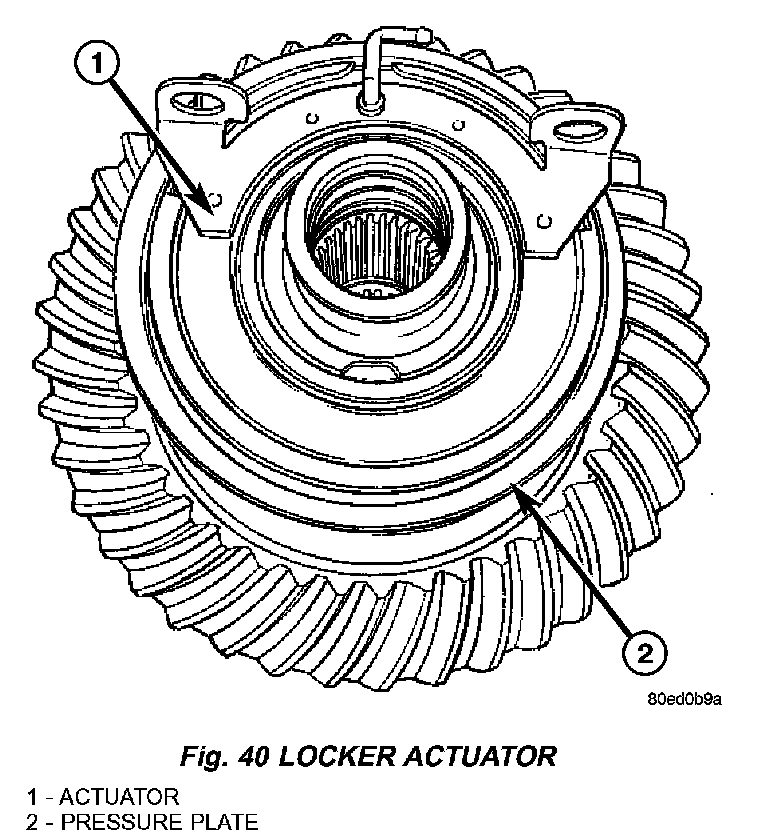

6. Remove locker actuator (Fig. 40).

ASSEMBLY

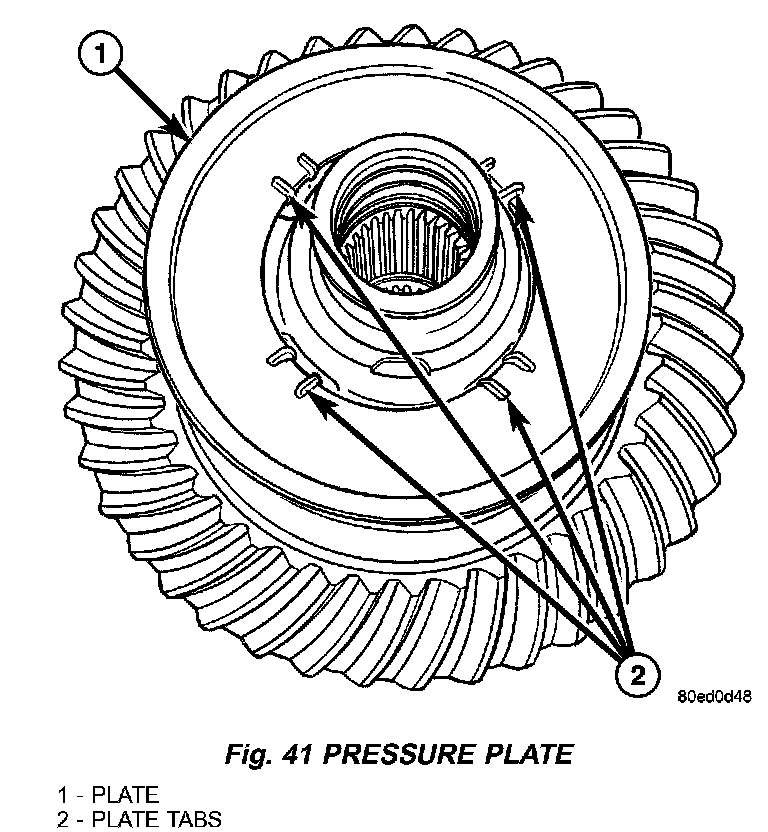

1. Verify pressure plate tabs (Fig. 41) are seated on the dog clutch slots.

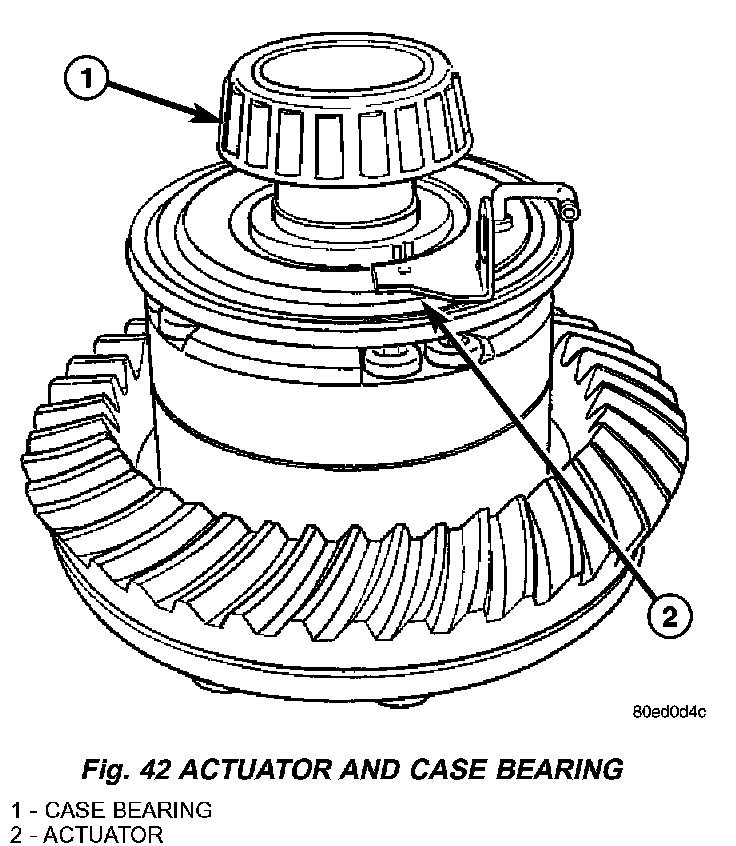

2. Place actuator on the pressure plate and case bearing on the case (Fig. 42).
3. Install differential case bearings with Installer D-156 and Handle C-4171.
