Cruise Control Vacuum Reservoir: Service and Repair

REMOVAL

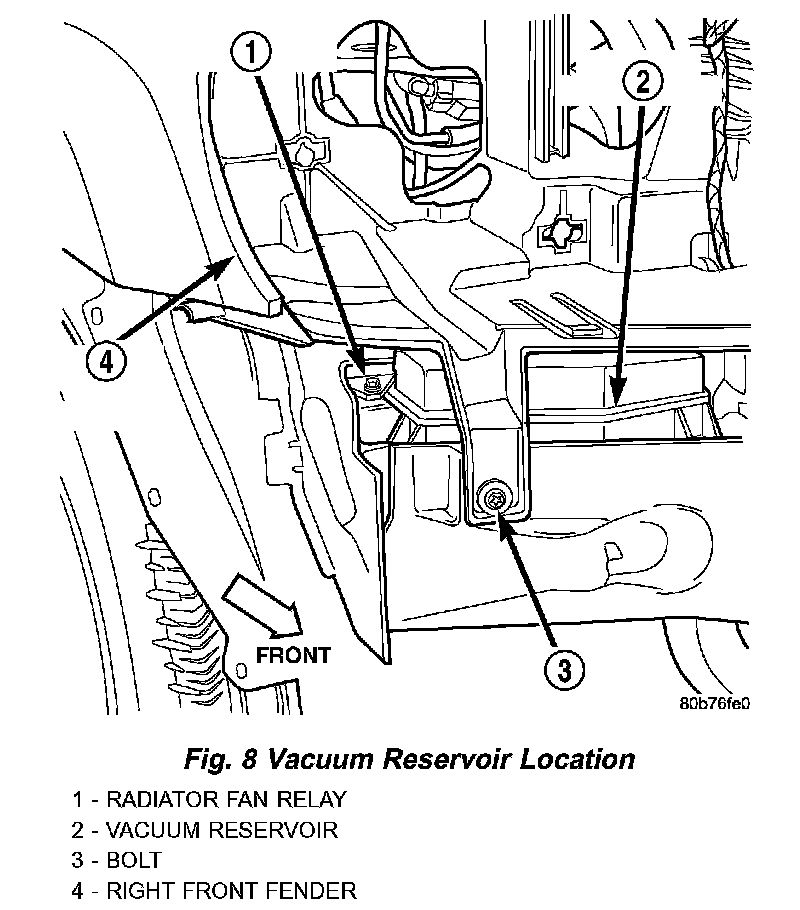

Fig.8 Vacuum Reservoir Location:




The vacuum reservoir is located in the right/front corner of the vehicle behind the front bumper fascia.
1. Remove front bumper and grill assembly.
2. Remove 1 support bolt near front of reservoir.
3. Remove 2 reservoir mounting bolts.

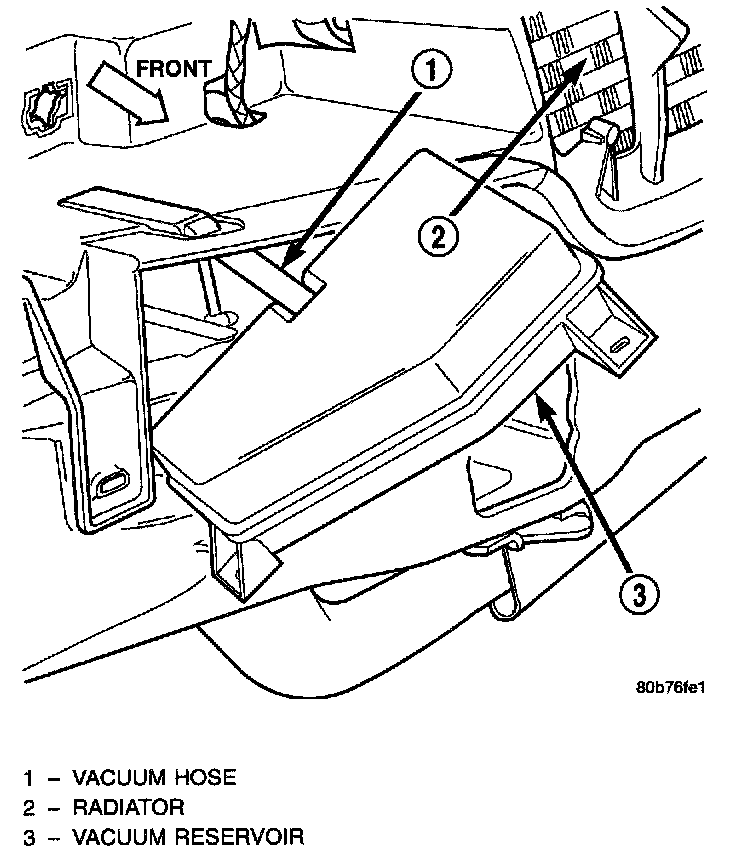

Vacuum Reservoir Remove/Installation:




4. Remove reservoir from vehicle to gain access to vacuum hose. Disconnect vacuum hose from reservoir fitting at rear of reservoir.

INSTALLATION
The vacuum reservoir is located in the right/front corner of the vehicle behind the front bumper fascia.
1. Connect vacuum hose to reservoir.
2. Install reservoir and tighten 2 bolts to 3 Nm (25 in. lbs.) torque.
3. Install front bumper and grill assembly.
