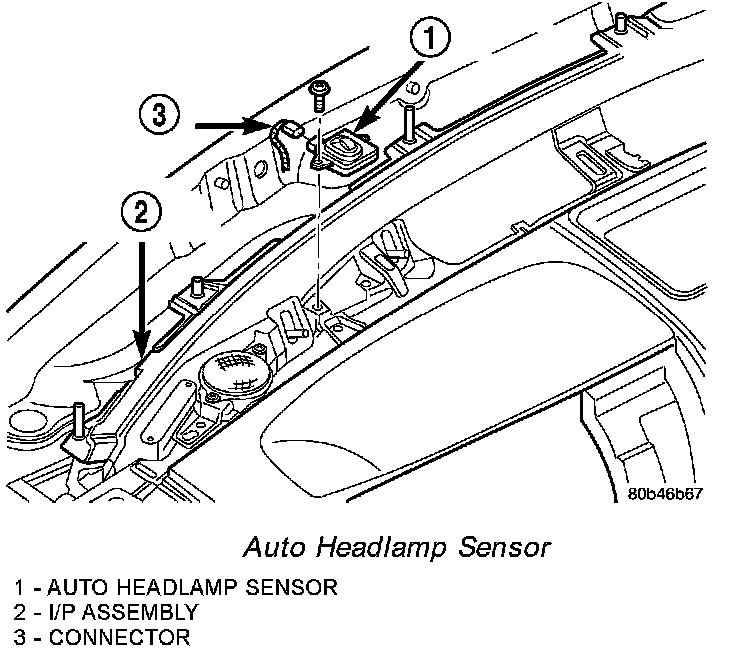

Auto Headlamp Sensor

REMOVAL
1. Remove the instrument panel top cover.for service procedures.





2. Remove the screw attaching auto headlamp sensor to instrument panel.
3. Disengage the harness connector from auto headlamp sensor.
4. Separate the auto headlamp sensor from instrument panel.

INSTALLATION
1. Position the auto headlamp sensor on instrument panel.
2. Engage the harness connector to auto headlamp sensor.
3. Install the screw attaching auto headlamp sensor to instrument panel.
4. Install the instrument panel top cover.for service procedures.
