Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep
>>
2004
>>
Grand Cherokee 4WD V8-4.7L VIN J
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100 - C301
>>
C101
C101

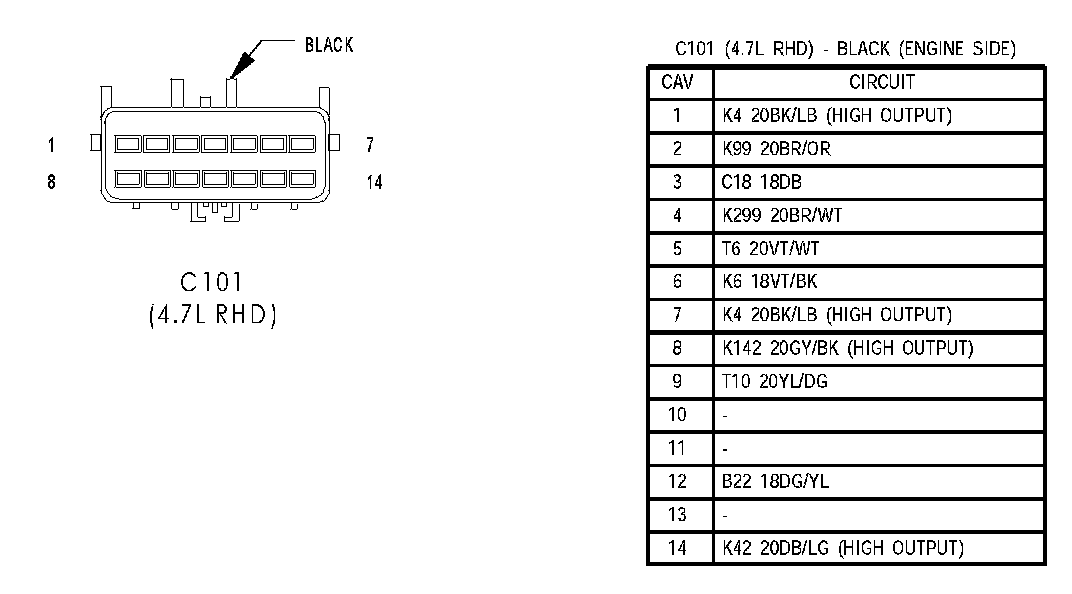

C101 (4.7L RHD):
C101 (4.7L RHD):
