Engine Control Module

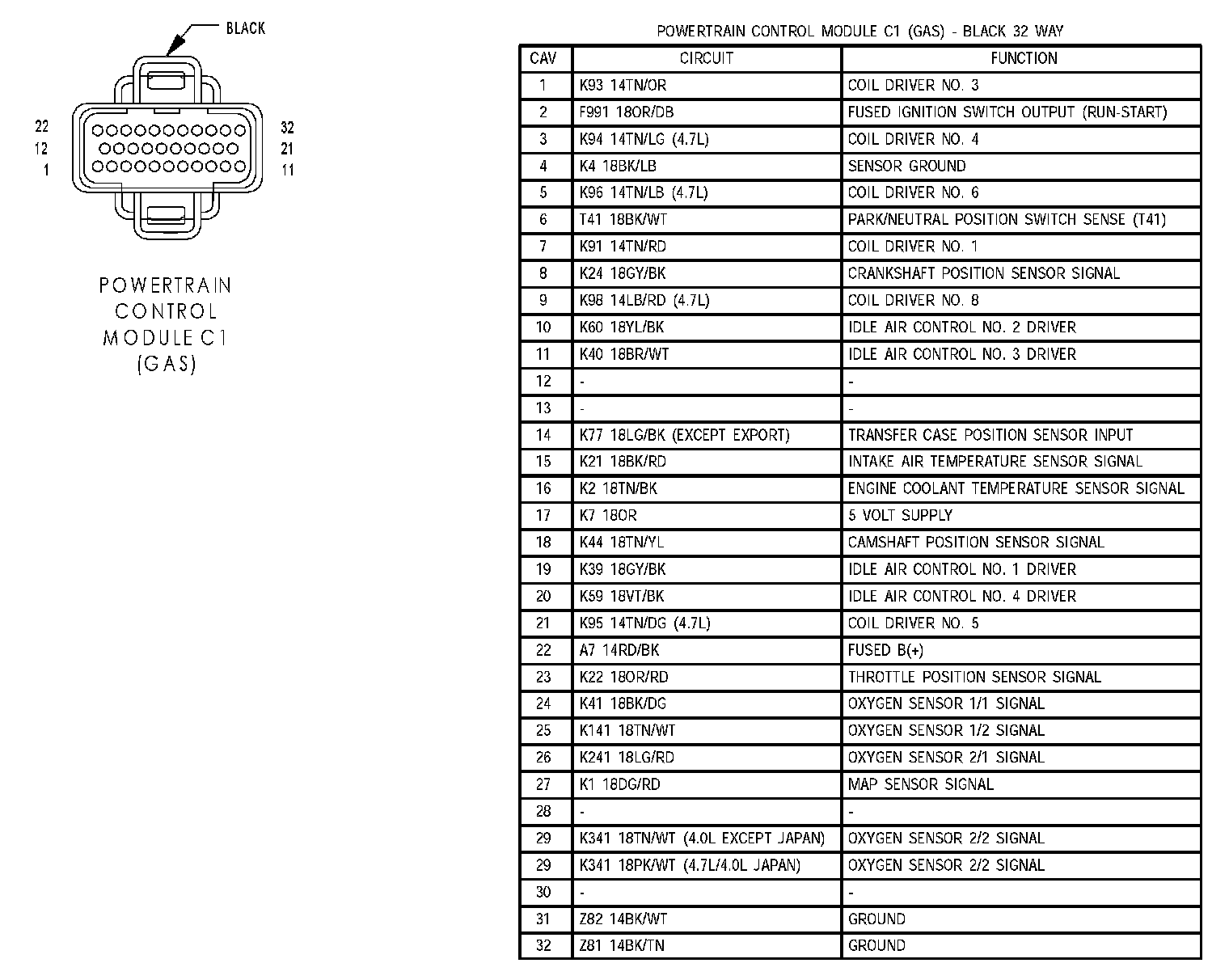

Powertrain Control Module C1 (Gas):



Powertrain Control Module C2 (Gas):



Powertrain Control Module C3 (Gas):
