Radio Illumination Lamps Inoperative

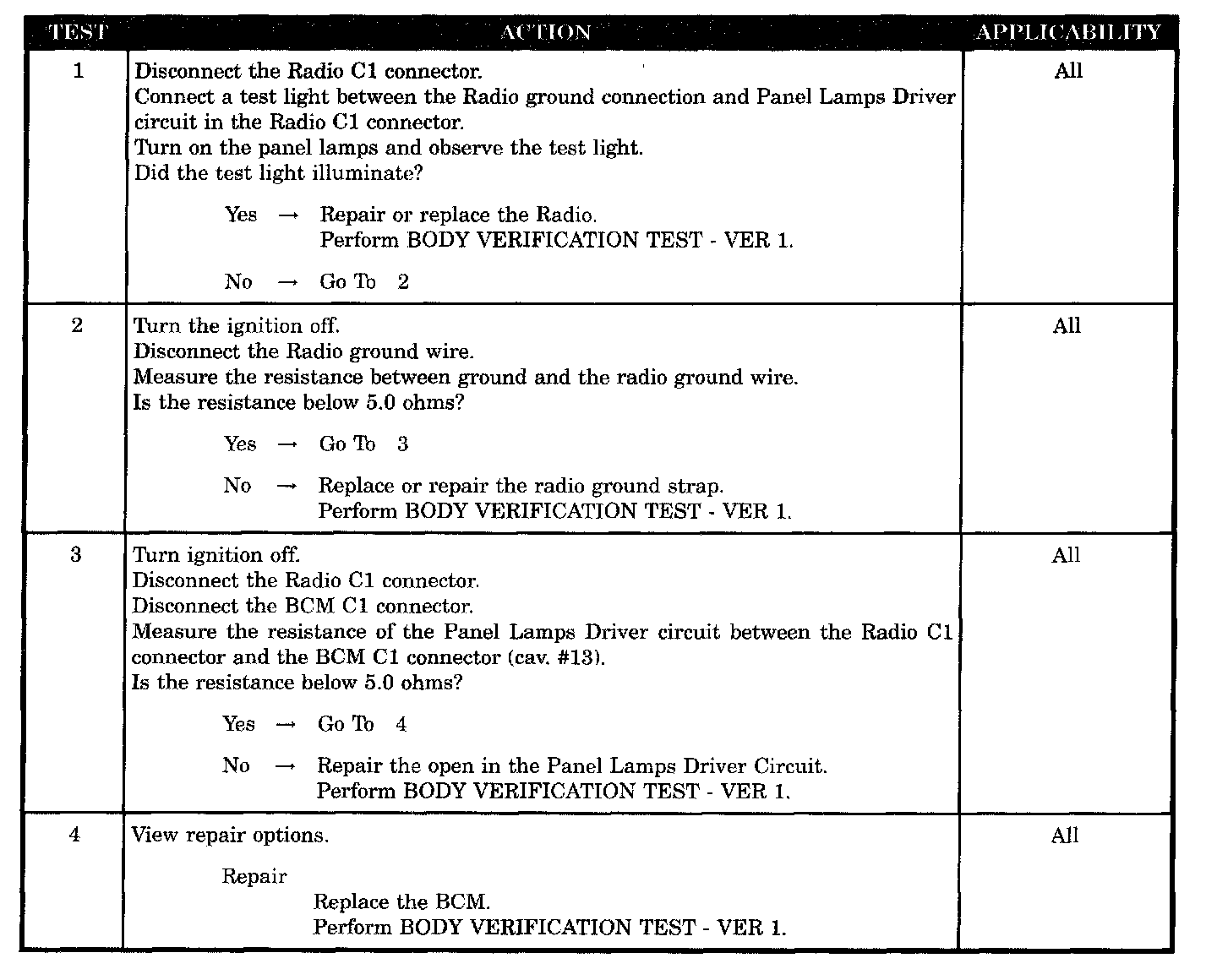

Test 1 - 4:






SYMPTOM
RADIO ILLUMINATION LAMPS INOPERATIVE

POSSIBLE CAUSES
- Radio ground circuit open
- BCM (radio illumination)
- Panel lamps driver CKT open
- Radio illumination
