RKE Transmitter Poor Range - Japan Only

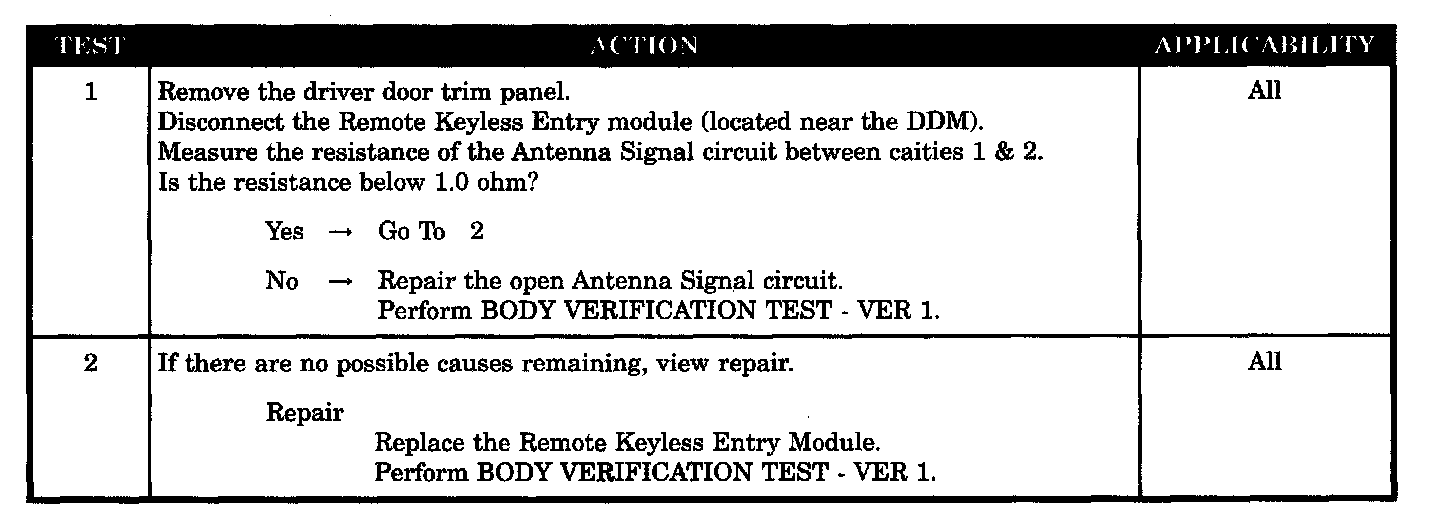

Test 1 - 2:






SYMPTOM
RKE TRANSMITTER POOR RANGE - JAPAN ONLY

POSSIBLE CAUSES
- Antenna signal circuit open
- Remote keyless entry module - poor range
