Rock Rail

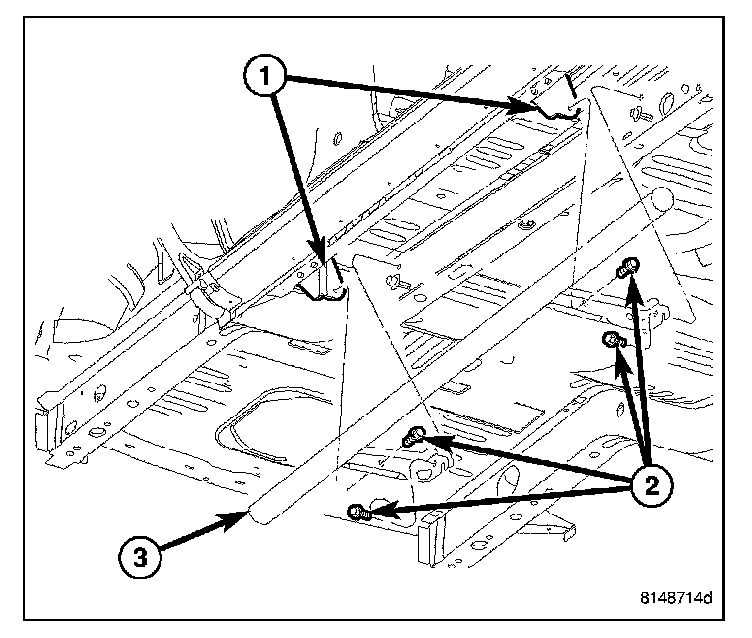

ROCK RAIL REMOVAL 1.
Remove the bolts (2) and remove the rock rail.

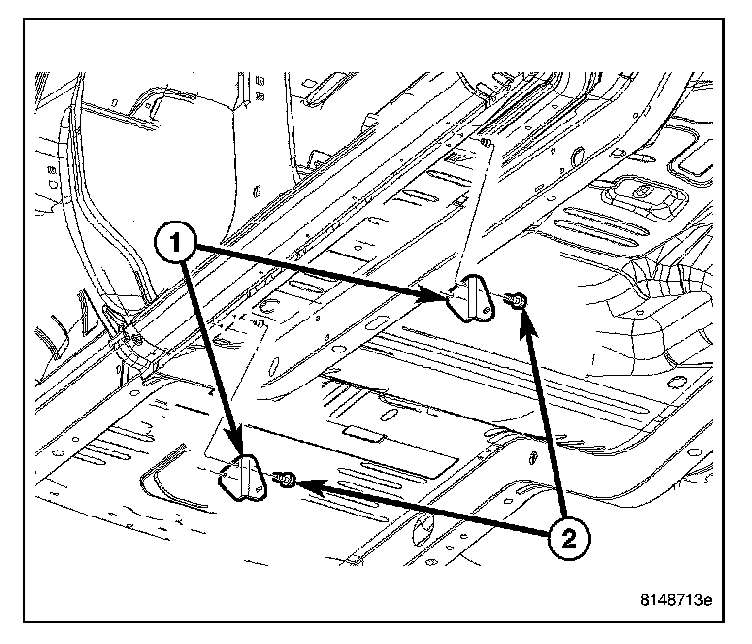

2.
Remove the bolts (2) and remove the brackets.
INSTALLATION 1.

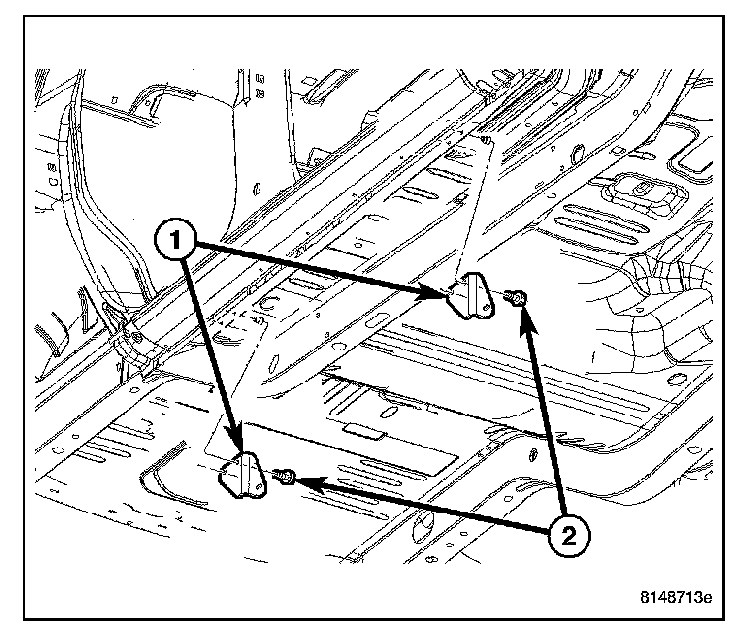

Install the brackets (1) and install the bolts (2).
2.
Tighten the bolts to
23 N.m (200 in.lbs.). 3.

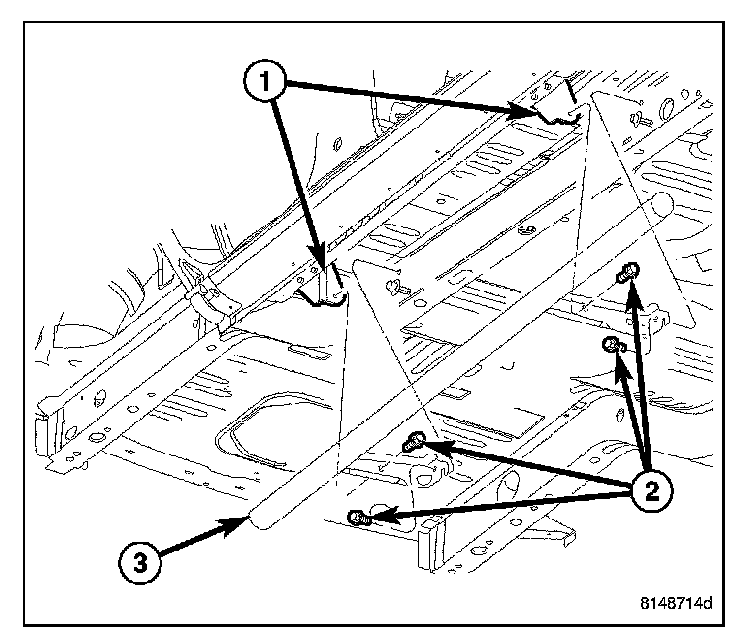

Install the rock rails (3) and install the bolts (2).
4.
Tighten the bolts to
23 N.m (200 in.lbs.).
