Transfer Case Skid Plate

TRANSFER CASE SKID PLATE

REMOVAL

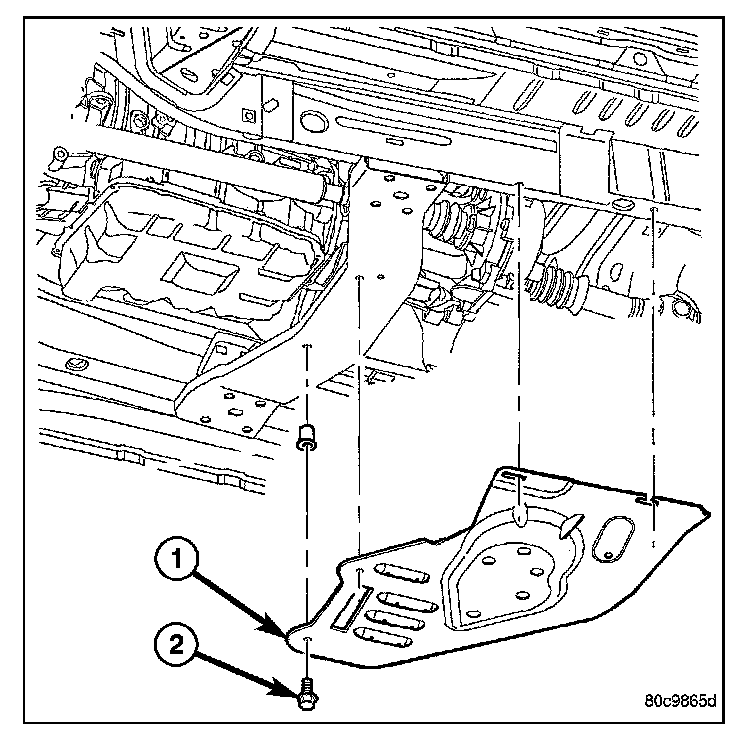

1. Remove the bolts (2) and remove the skid plate (1).

INSTALLATION

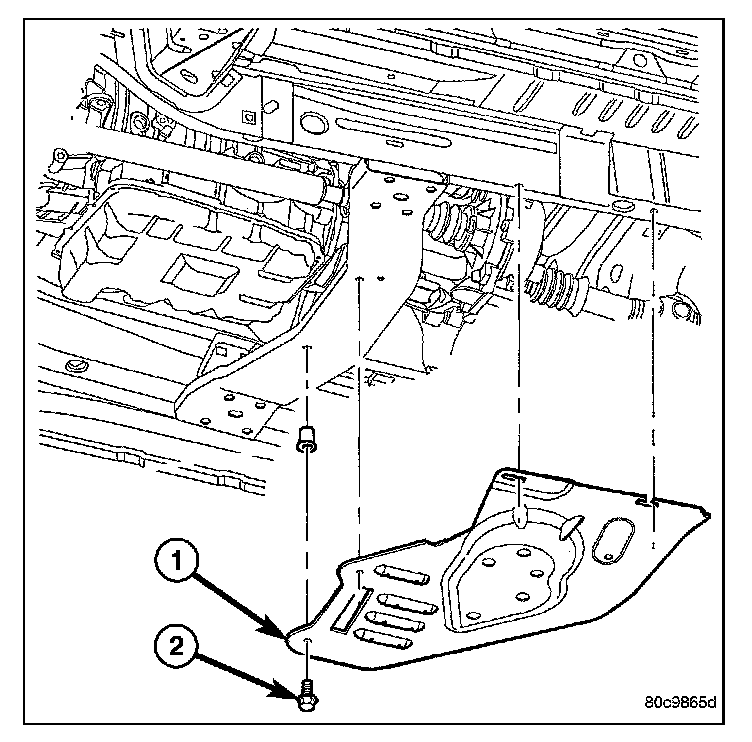

1. Install the skid plate.
2. Install the bolts and tighten to 34 N.m (25 ft.lbs.).
