Tailgate Interior Trim Panel: Service and Repair

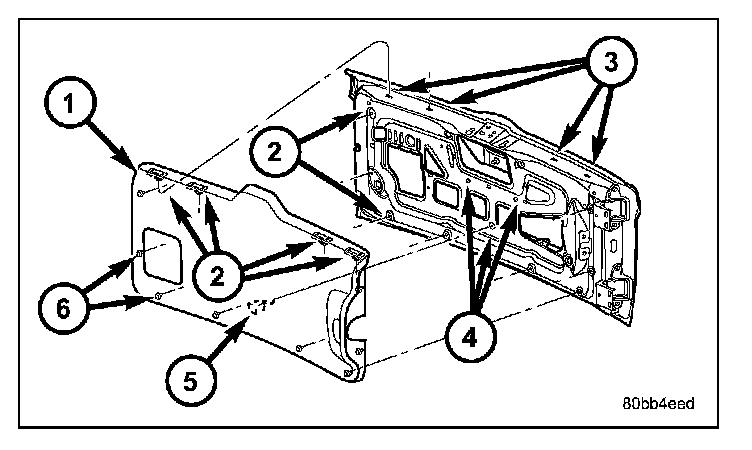

TRIM PANEL REMOVAL 1.
Using a trim tool C-4829-A or equivalent, release the push pin fasteners.
2.
Lift
trim panel up off of the upper trim panel clips.

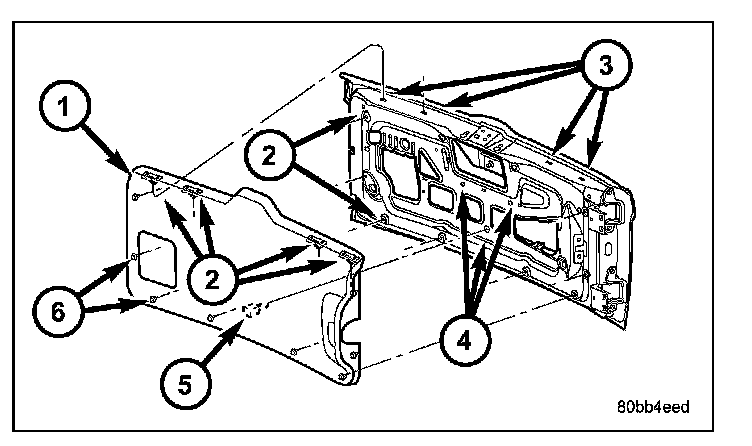

INSTALLATION 1.
Position the
trim panel and seat the upper clips.
2.
Fully seat the lower
trim panel clips.
