Compass: Service and Repair

COMPASS/MINI-TRIP COMPUTER

REMOVAL
1. Remove overhead console, refer to Console Removal and Installation.

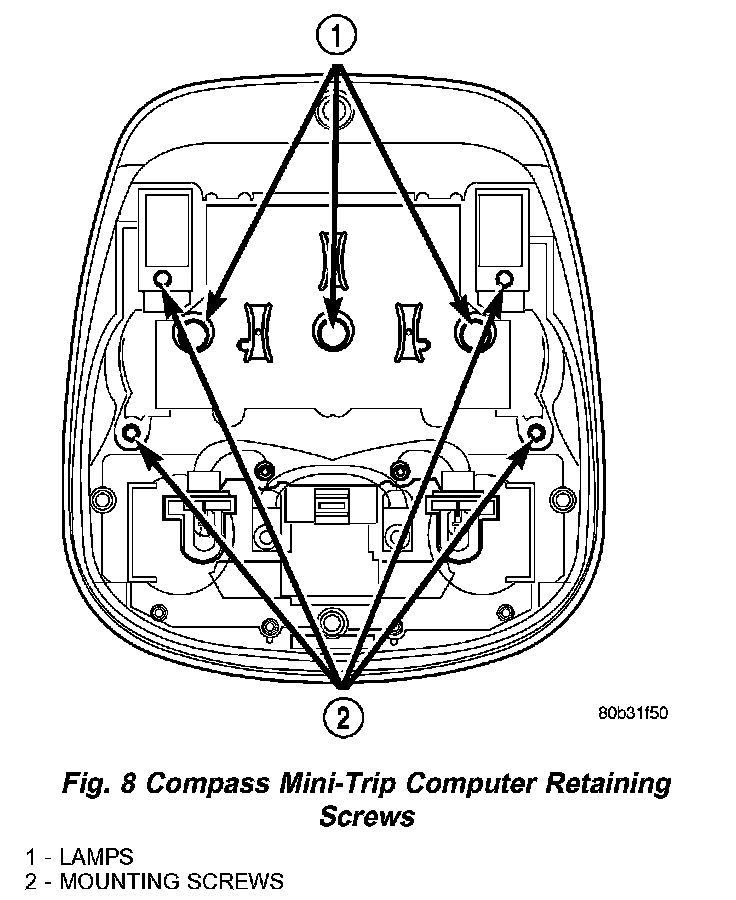

Fig.8 Compass Mini-Trip Computer Retaining Screws:




2. Remove mounting screws and release the map lamp wire connector from the Compass/Mini-Trip Computer.
3. Remove the Compass/Mini-Trip Computer from the overhead console.

INSTALLATION
1. Install the Compass/Mini-Trip Computer in the overhead console. Align the Compass/Mini-Trip Computer guides on the housing with the grooves of the console.
2. Install the mounting screws and install the map lamp wire connector on the Compass/Mini-Trip Computer. Make sure the LOOP of wire that was clipped into the Compass/Mini-Trip Computer module housing is properly clipped into the new module before the console is placed back into the headliner.
3. Install the overhead console, refer to Console Installation.
