No Response From PCM With A No Start Condition

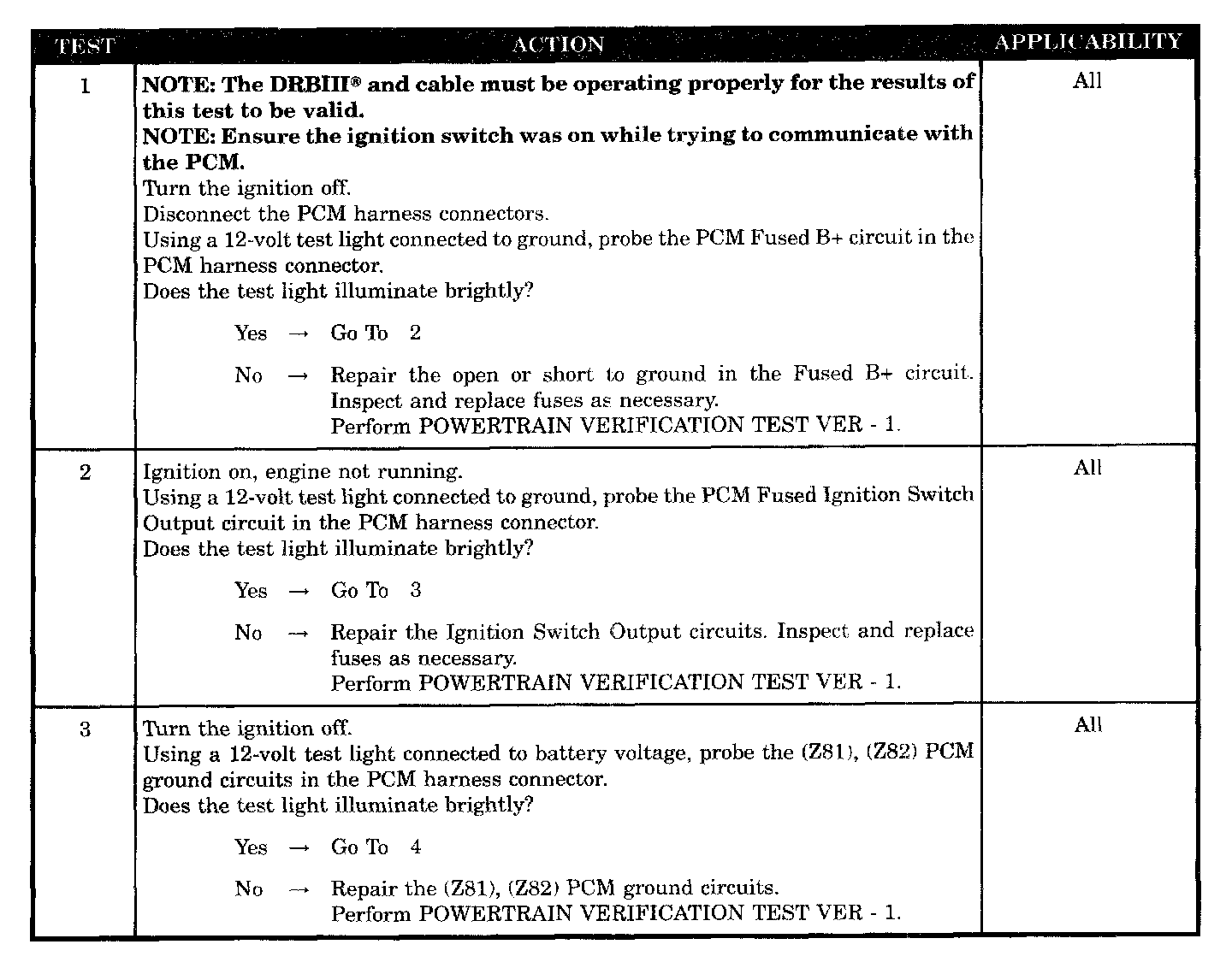

Test 1 - 3:

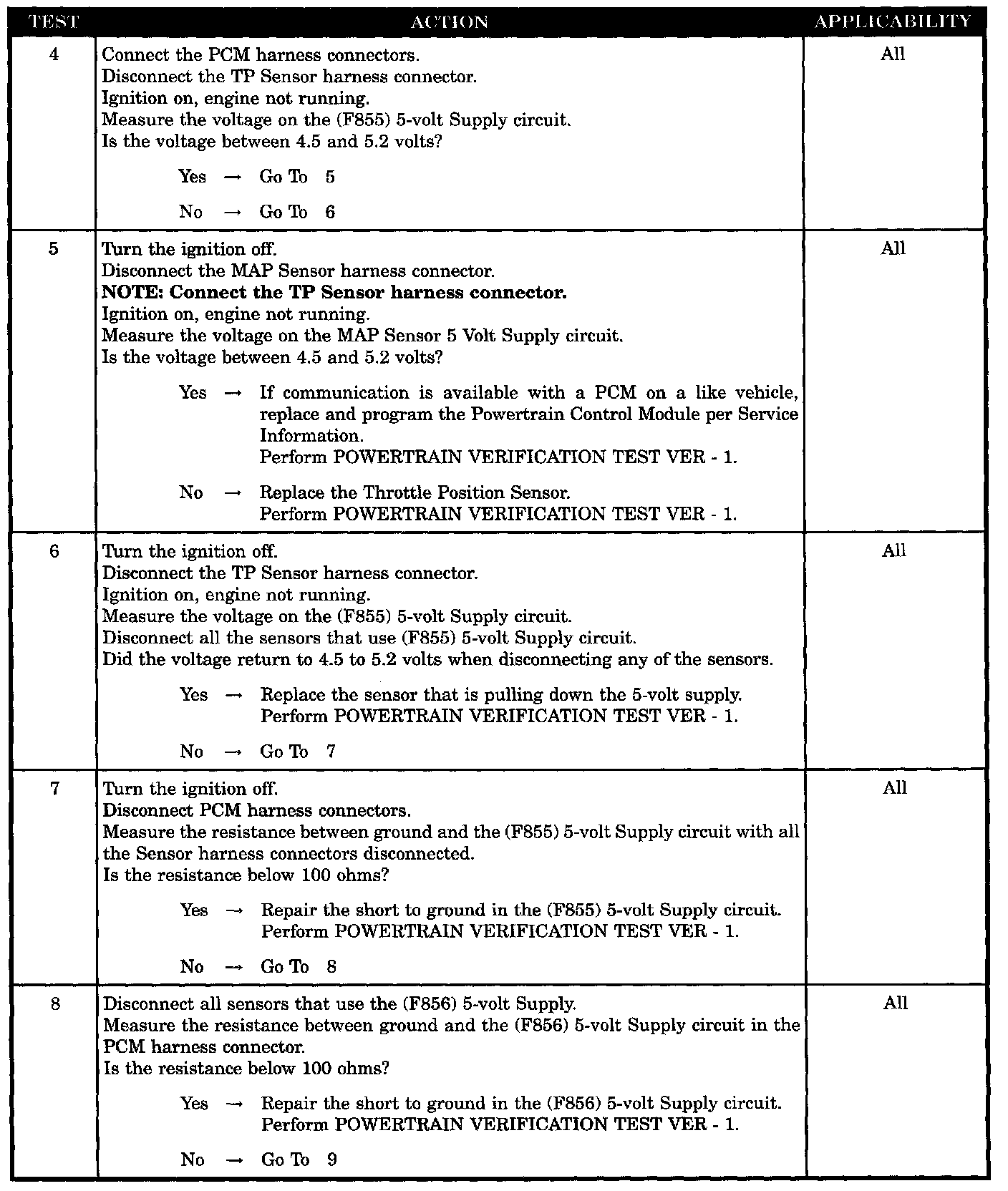

Test 4 - 8:
Test 9:
SYMPTOM NO RESPONSE FROM
PCM WITH A NO START CONDITION
POSSIBLE CAUSES -
PCM fused B+ circuits
-
PCM, no response
-
PCM fused
ignition switch output circuits
-
(Z81), (Z82)
PCM ground circuits
-
Throttle position sensor -
5 volt sensor open or shorted
-
(F855)
5 volt supply CKT short to ground
-
(F856)
5 volt circuit supply shorted to ground
-
PCM
