Manual Transmission/Transaxle: Application and ID
NV1500 Manual Transmission:

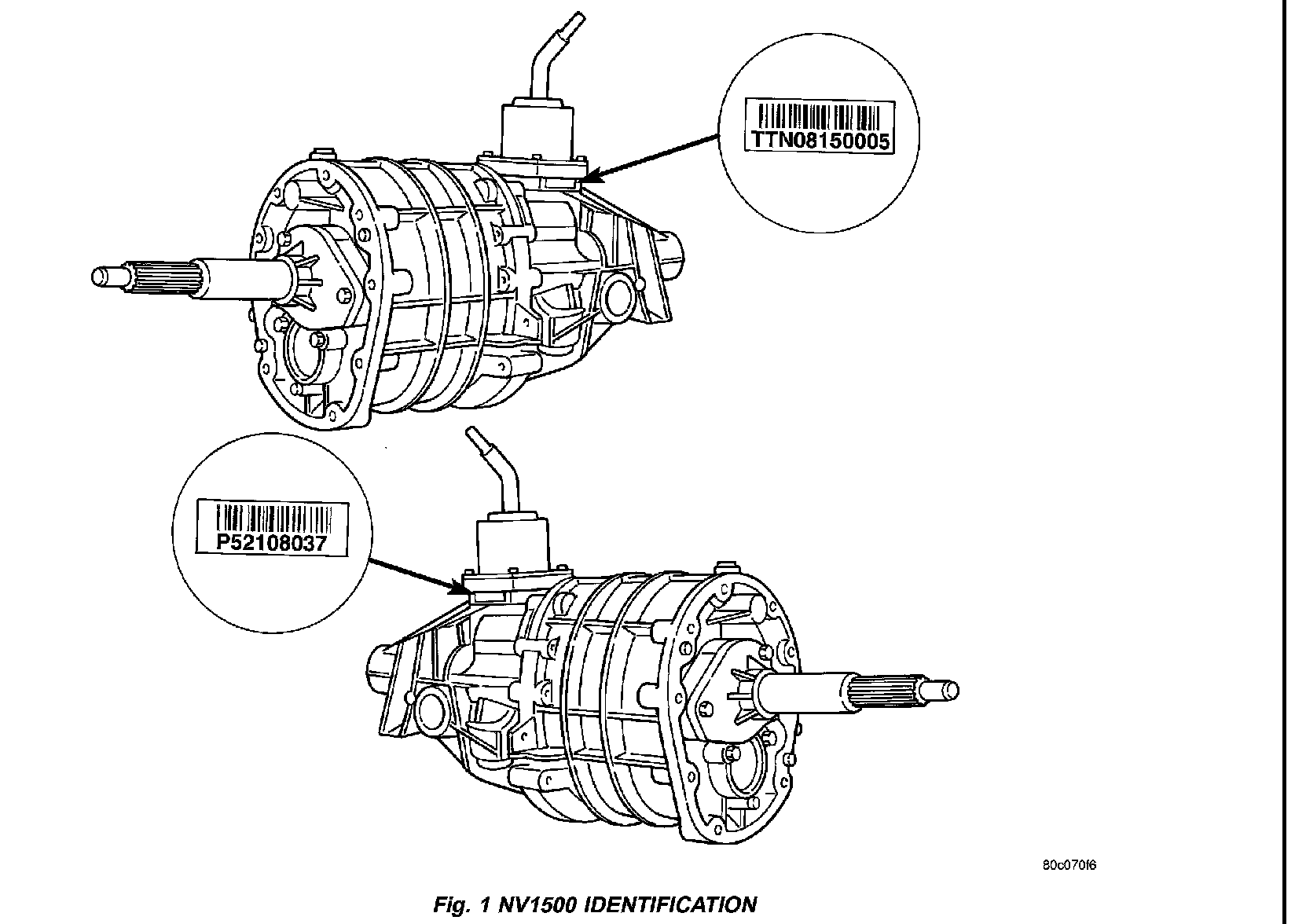

NV1500 Manual TransmissionIdentification bar code tags are located on each side of the transmission, below the shift tower.
The tag located on the right side has the part number and the tag located on the left side has the build sequence and date information.
