Fog/Driving Lamp: Service and Repair

REMOVAL




1. Disconnect and isolate the battery negative cable.
2. Access the rear of the fog lamp assembly by removing the inner fender well to lower front fascia push pins.

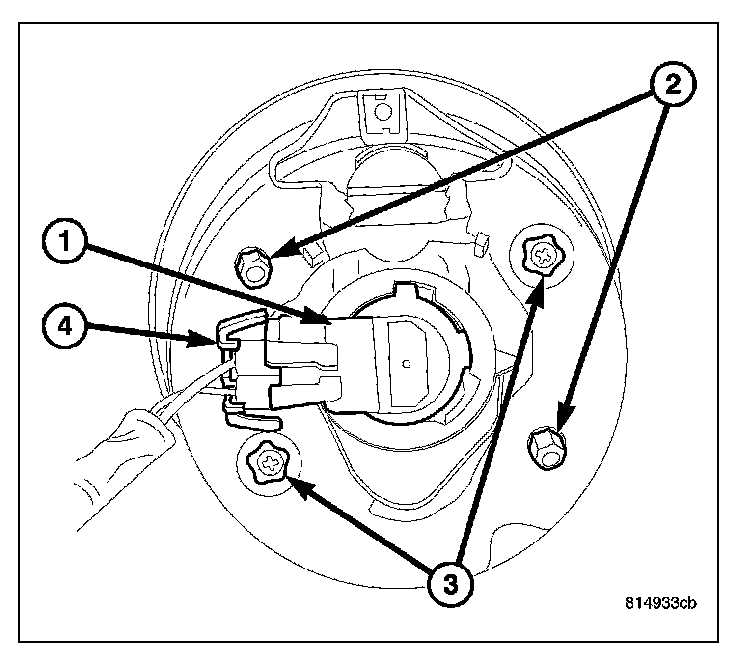

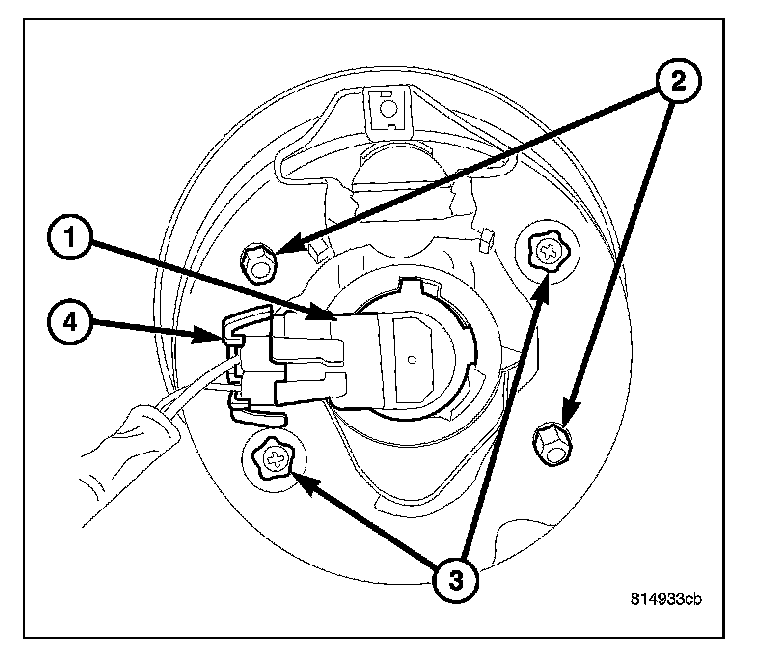

3. Disengage the fog lamp electrical connector (4).
4. Grasp the fog lamp (1) and rotate the quarter turn counterclockwise to release the lamp (1) from the housing.
5. Remove the two fog lamp unit screws (3) and remove the fog lamp through the front of the lower fascia.

INSTALLATION




1. Position the fog lamp unit in the lower fascia. There are two alignment dowels (2) to assist in this step.
2. Install the two screws (3) attaching fog lamp unit to fascia.
3. Install the fog lamp (1) and turn it one quarter turn clockwise.
4. Connect the fog lamp electrical connector (4).
5. Align the fog lamp, if necessary.
6. Align the inner wheel well with the lower front fascia and install push pins.
7. Connect the battery negative cable.
