Rear Door Window Regulator: Service and Repair

REMOVAL




1. Remove the trim panel from the inside of the rear door.
2. Position the watershield out of the way and using the regulator, move the rear door glass up or down as required to access the two window regulator glass clamp bolts.
3. Loosen the bolt in each of the window regulator glass clamps far enough to release the door glass from the clamps.
4. Disengage the door glass from the window regulator glass clamps and lift the glass out of the regulator clamps and into its full up position, then tape the glass securely into place.

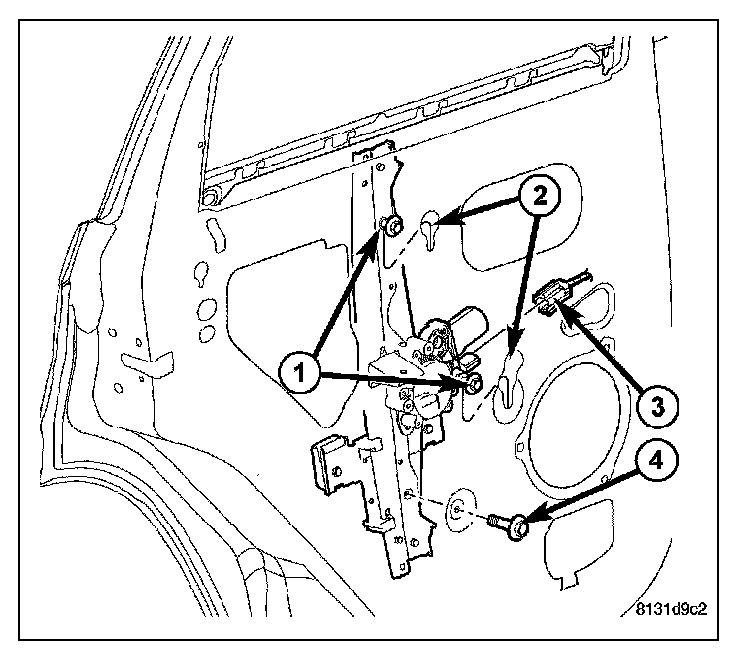

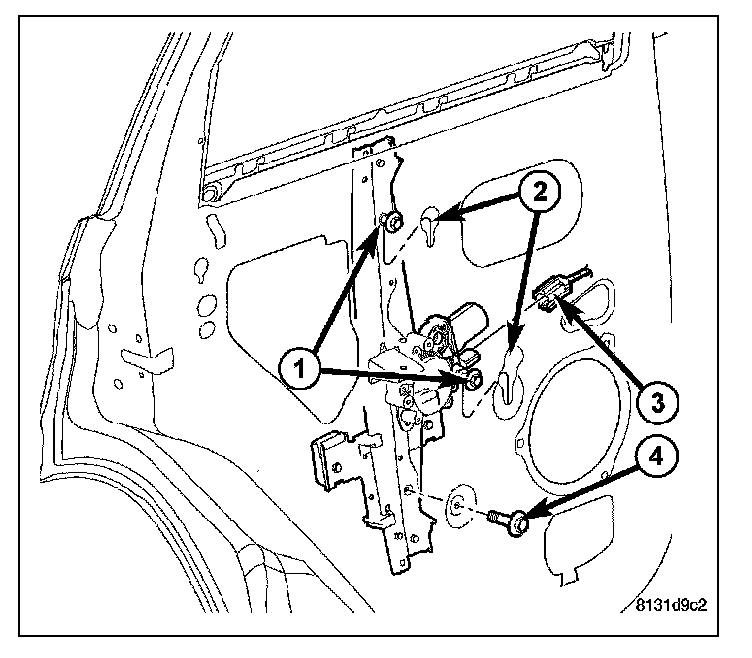

5. Remove the bolt (4) that secures the bottom of the window regulator to the inside of the door.
6. Loosen the two bolts (1) that secure the regulator to the keyed holes (2) on the inside of the door.
7. Lift the regulator upward within the door far enough to disengage the bolts from the two keyed holes in the door.
8. Lower the regulator within the door far enough to access and disconnect the wire harness connector (3) from the regulator motor through the large access hole in the door and remove the regulator.

INSTALLATION




1. Load the window regulator into the rear door through the large access hole in the door and connect the wire harness connector (3) to the regulator motor.
2. Engage the two bolts (1) into the keyed holes (2) on the inside of the door.
3. Install the bolt (4) that secures the bottom of the regulator to the door. Tighten the bolt to 10 N.m (90 in. lbs.).
4. Tighten the bolts that secure the regulator to the two keyed holes on the inside of the door. Tighten the bolts to 10 N.m (90 in. lbs.).
5. Carefully remove the tape securing the rear door glass in its full up position, then lower the glass and engage it into the two window regulator glass clamps.
6. Using the regulator, move the rear door glass up or down as required to access to the two window regulator glass clamp bolts.
7. Tighten the bolts in each of the window regulator glass clamps to 10 N.m (90 in. lbs.).
8. Install the watershield and the trim panel onto the inside of the rear door
