Trunk / Liftgate Lock Cylinder: Testing and Inspection
1.
Disconnect and isolate the battery negative cable.
2.
Remove
tailgate trim panel.
3.
Disconnect
tailgate cylinder lock switch harness connector.

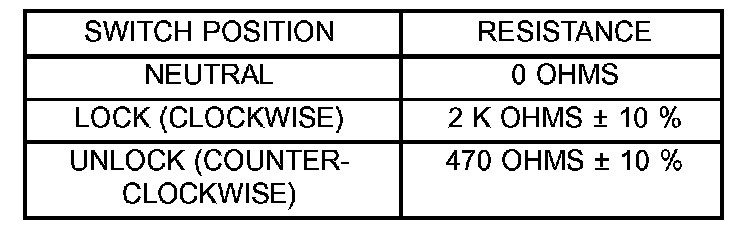

Tailgate Cylinder Lock Switch Table:
4.
Using a ohmmeter, test for resistances as shown in the
Tailgate Cylinder Lock Switch Table.
5.
If switch resistance is not correct, replace switch.
