Fog/Driving Lamp: Testing and Inspection

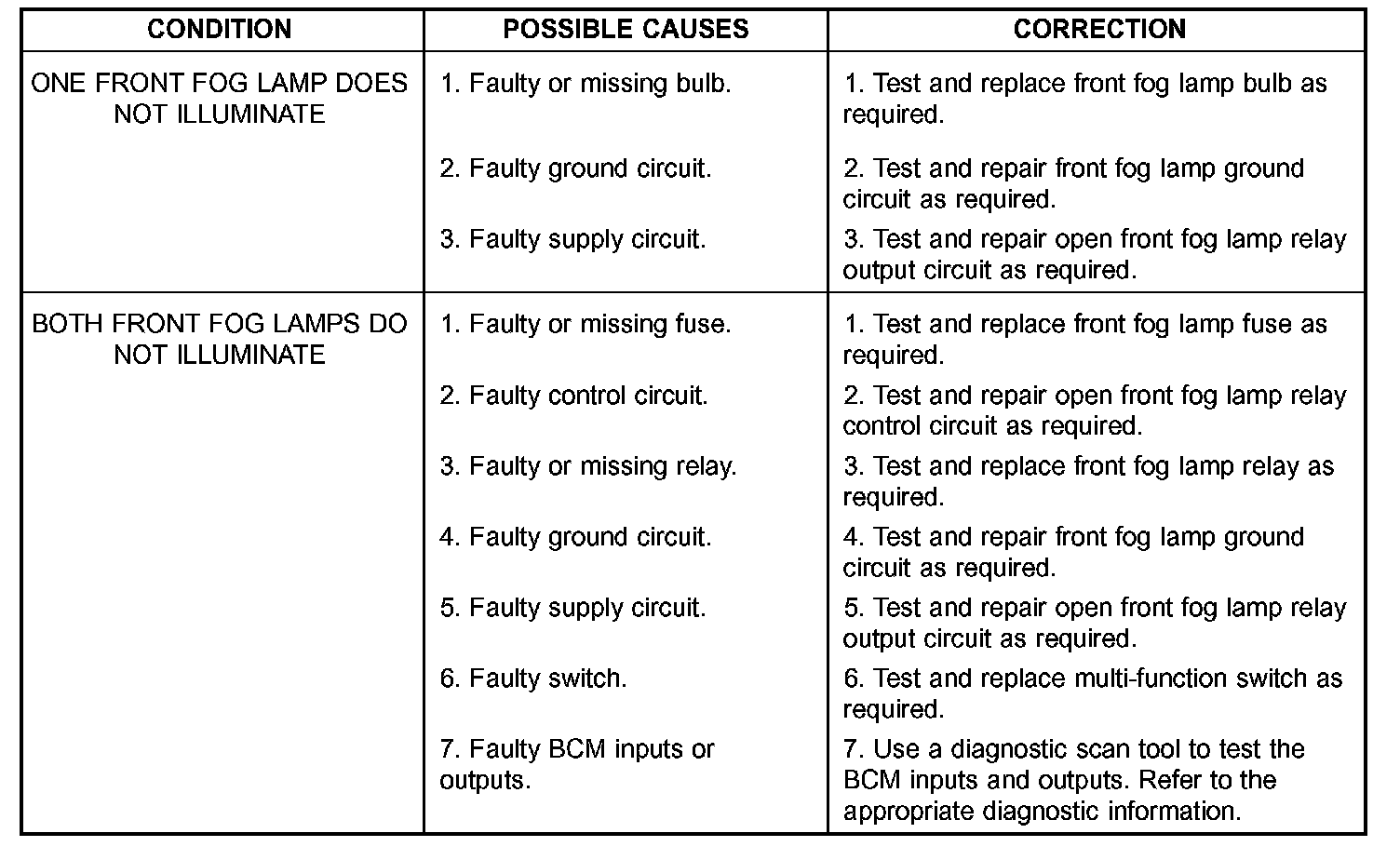

FRONT FOG LAMPS

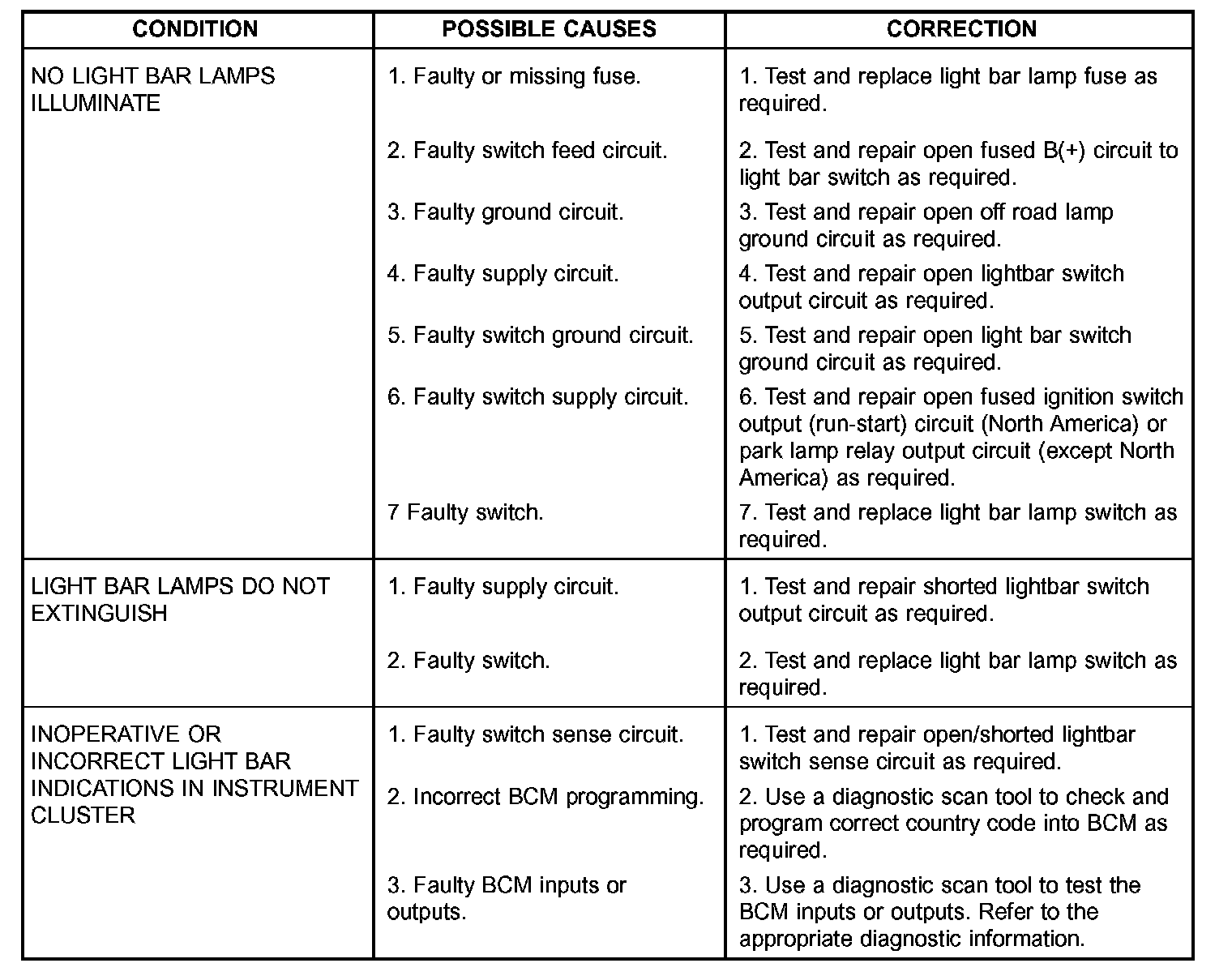

LIGHT BAR LAMPS
NOTE: Before performing the tests on vehicles manufactured for markets outside of North America, confirm whether both the park lamps and the low beam headlamps operate satisfactorily. If the park lamps or low beam headlamps are inoperative or operate improperly, diagnose and repair that problem before attempting to repair the light bar lamps.

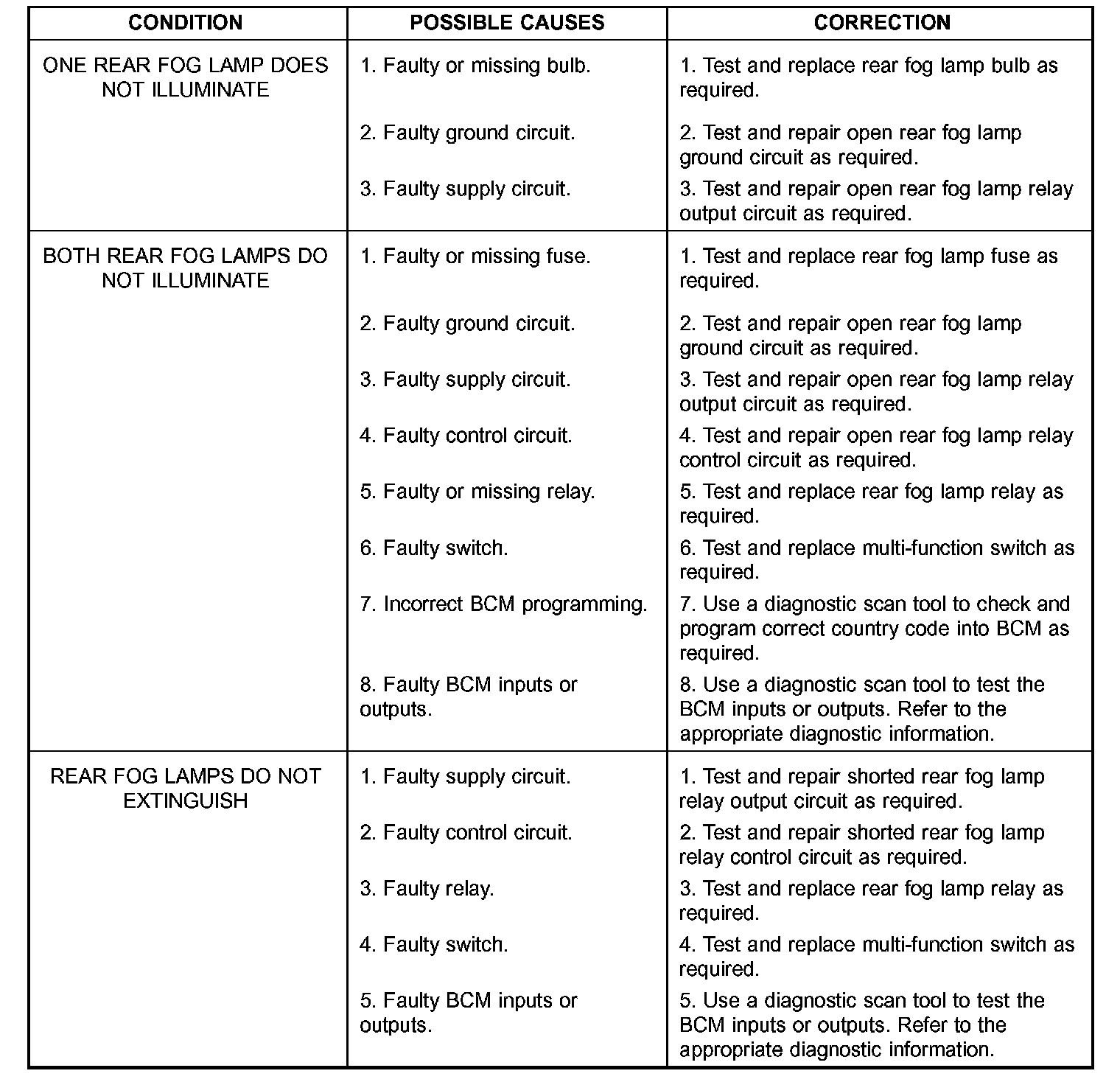

REAR FOG LAMPS
