Backup Lamps Inoperative

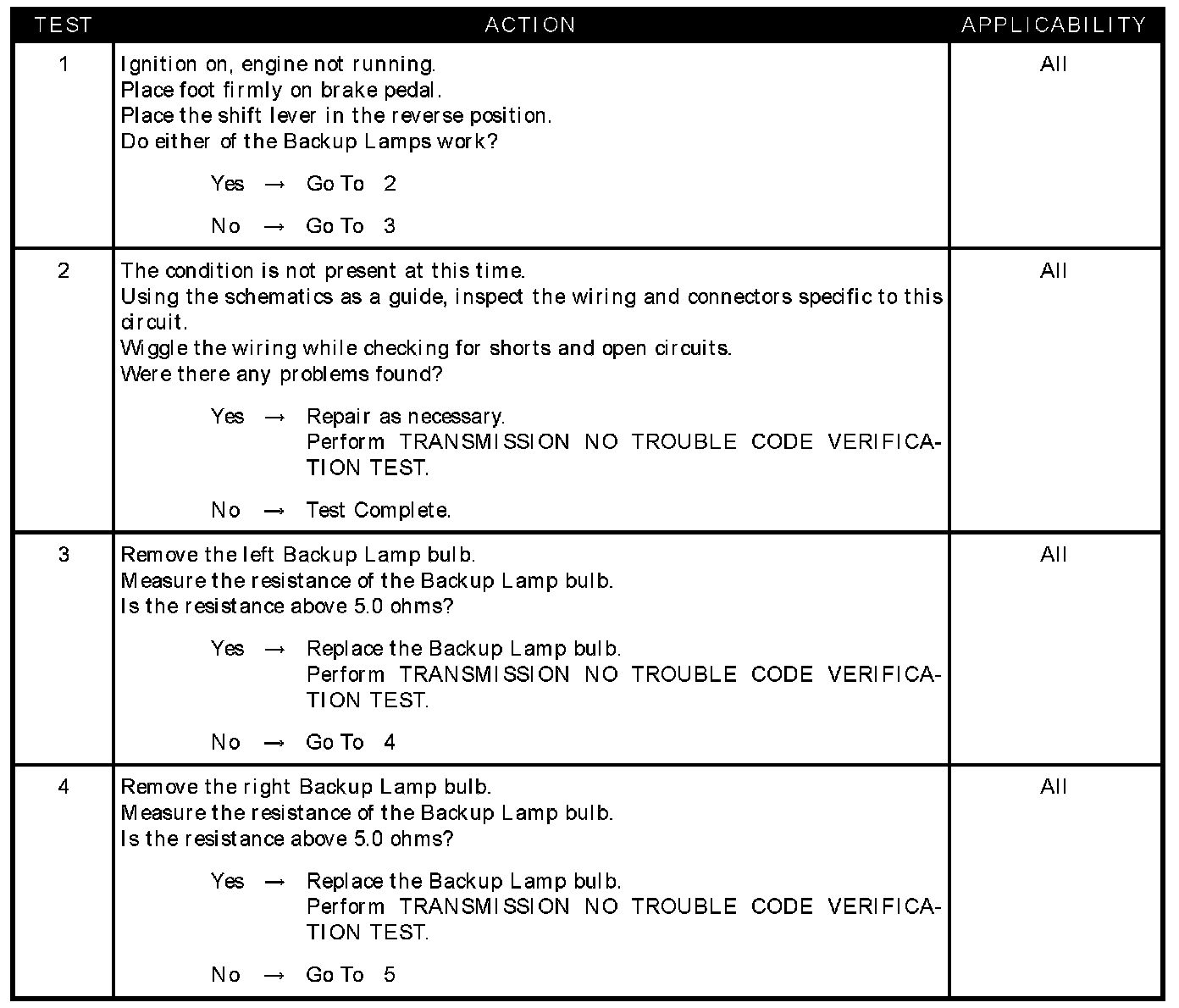

Test 1 - 4:

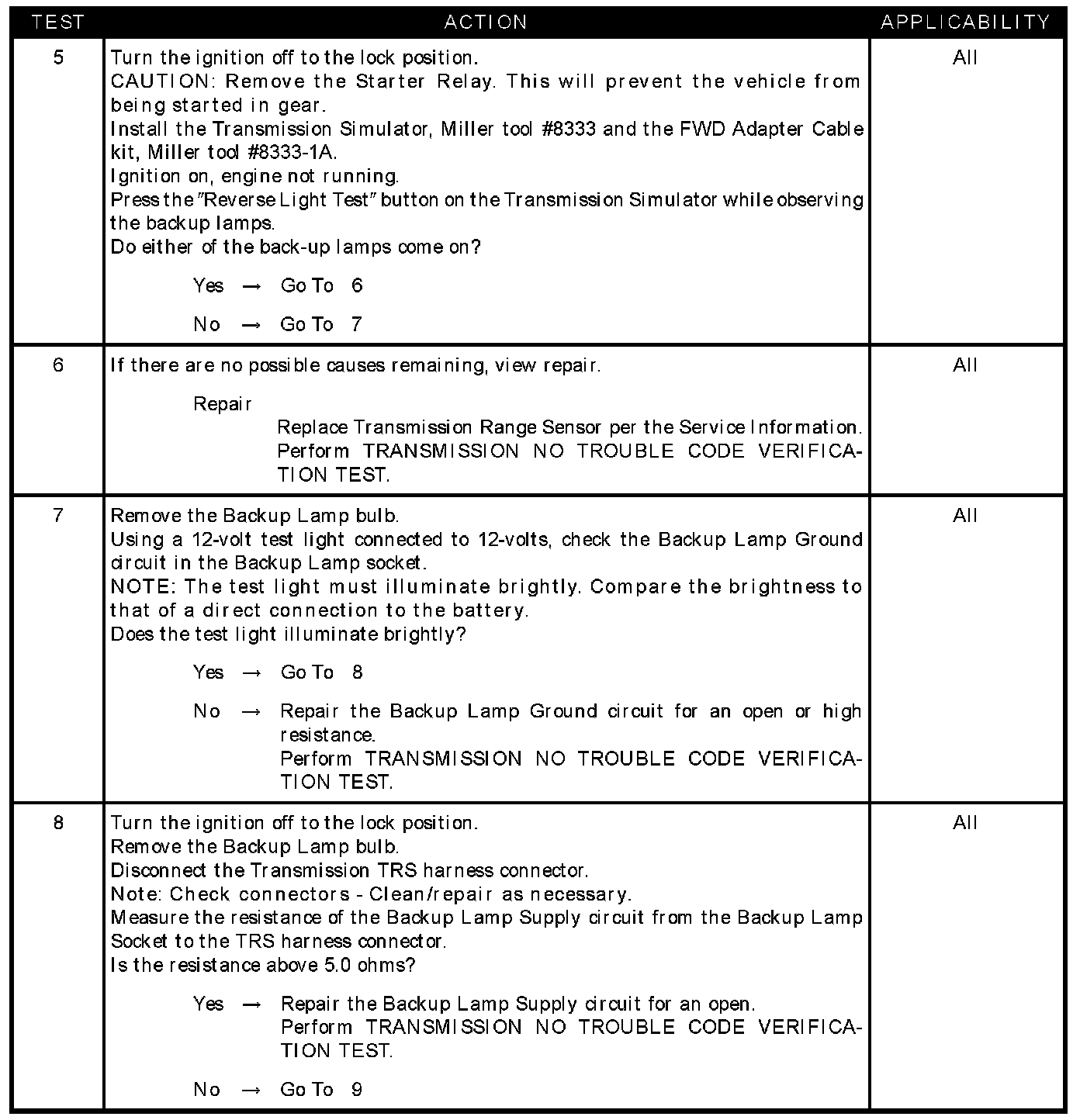

Test 5 - 8:
Test 9 - 10:
SYMPTOM BACKUP LAMPS INOPERATIVE
POSSIBLE CAUSES -
Open left backup lamp bulb
-
Open right backup lamp bulb
-
Backup lamp ground circuit open
-
Backup lamp supply circuit open
-
Fused
ignition switch output circuit open
-
Backup lamp supply circuit short to ground
-
Transmission range sensor
-
Intermittent wiring and connectors
