Service Specifications

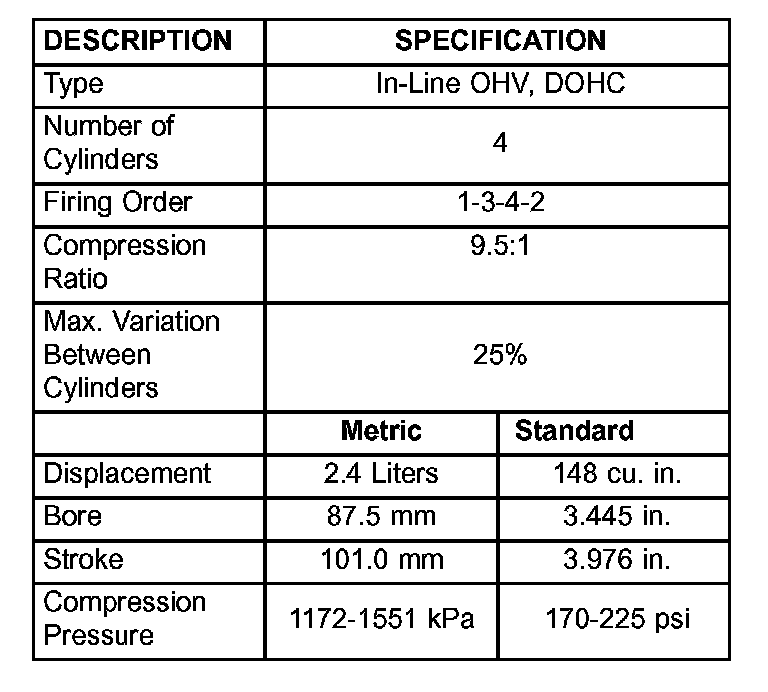

General Specifications:

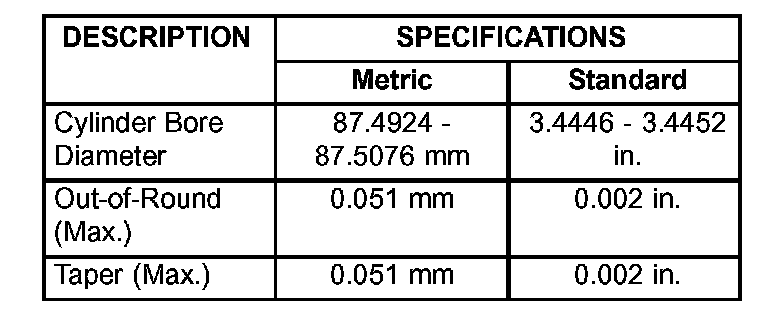

Cylinder Block:

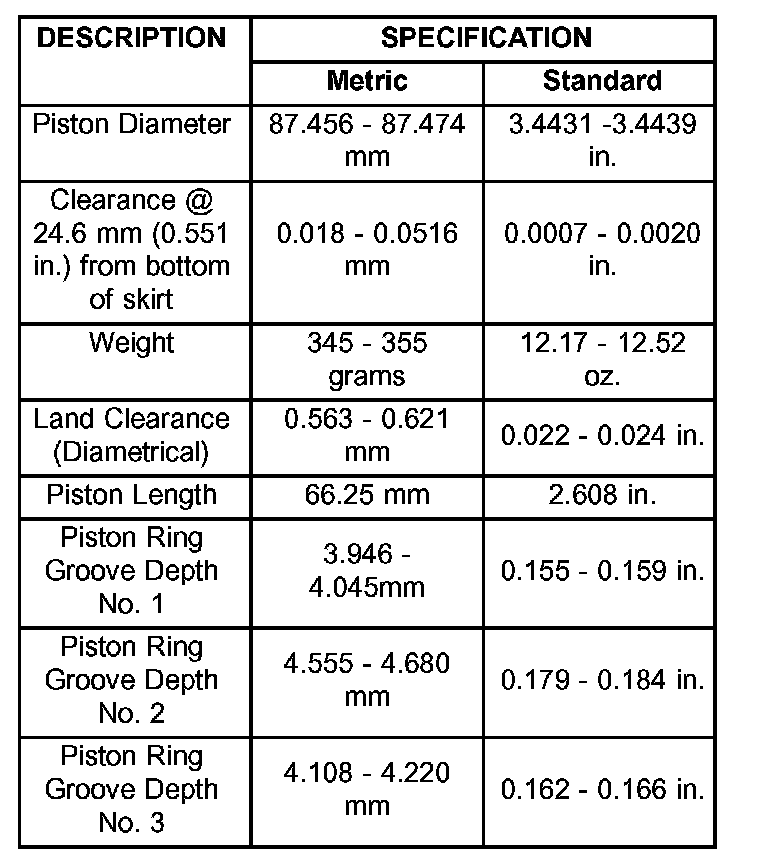

Pistons:

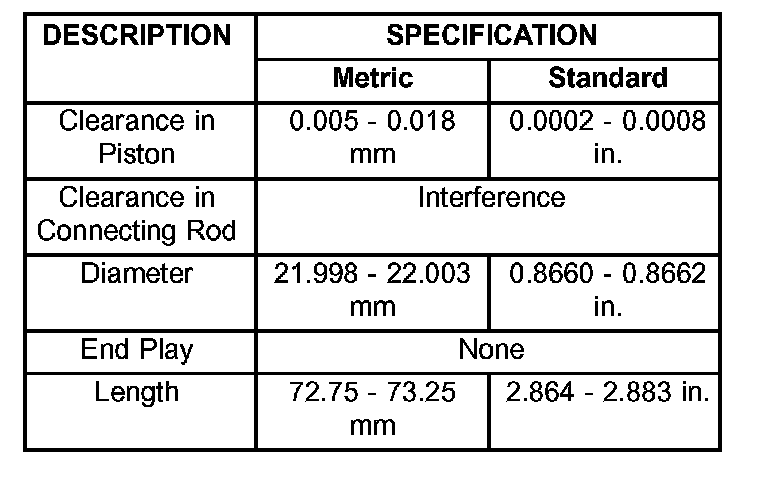

Piston Pins:

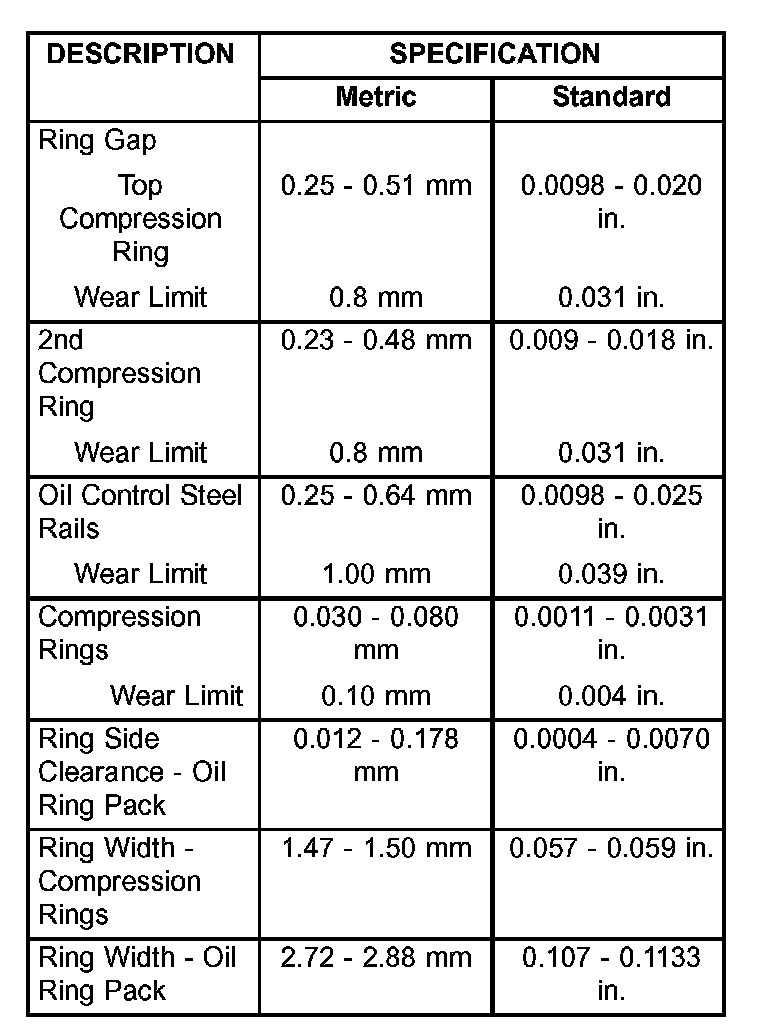

Piston Rings:

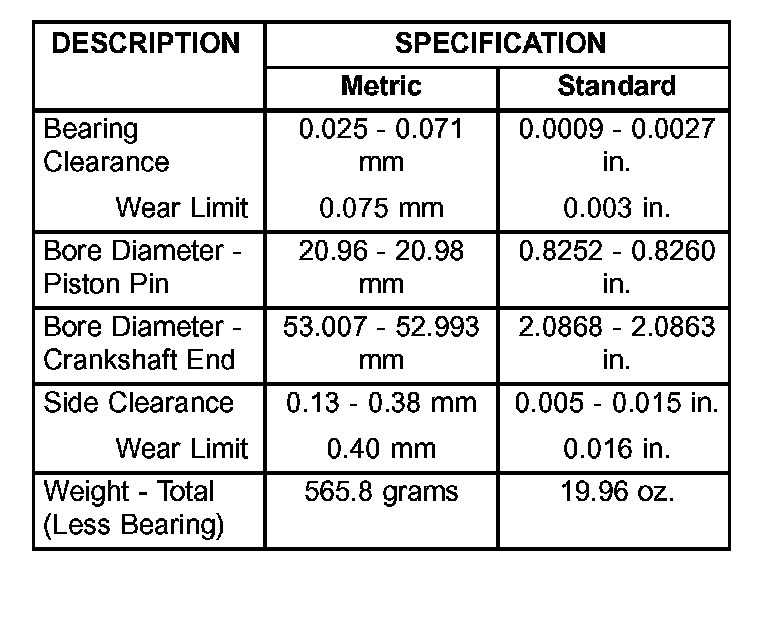

Connecting Rod:

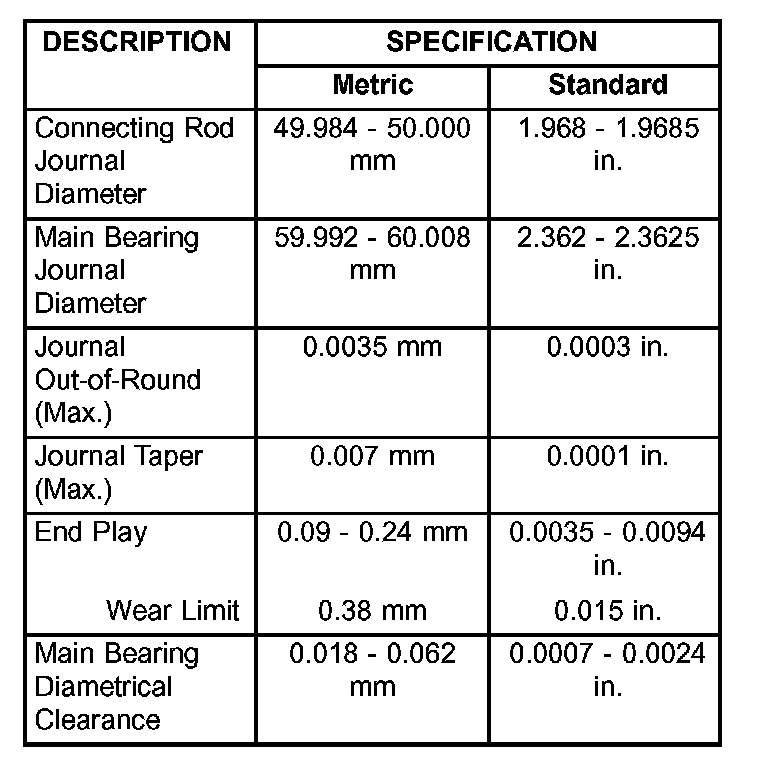

Crankshaft:

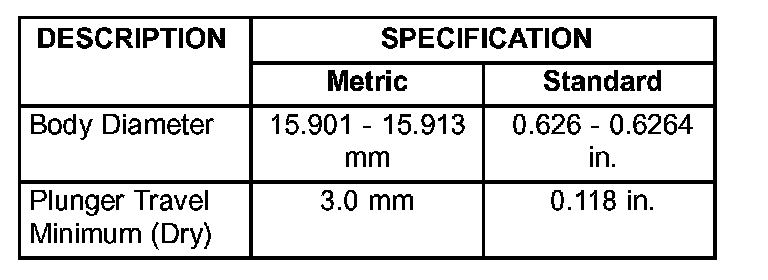

Hydraulic Lash Adjuster:

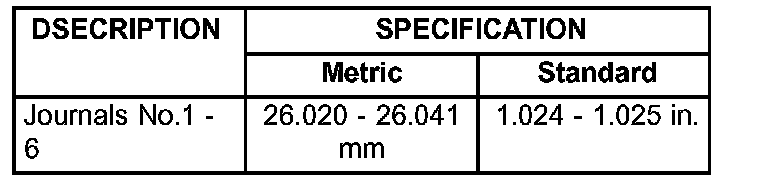

Cylinder Head Camshaft Bearing Bore Diameter:
Camshaft:

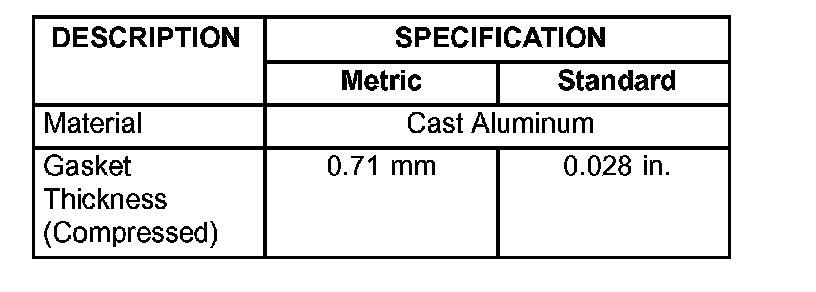

Cylinder Head:

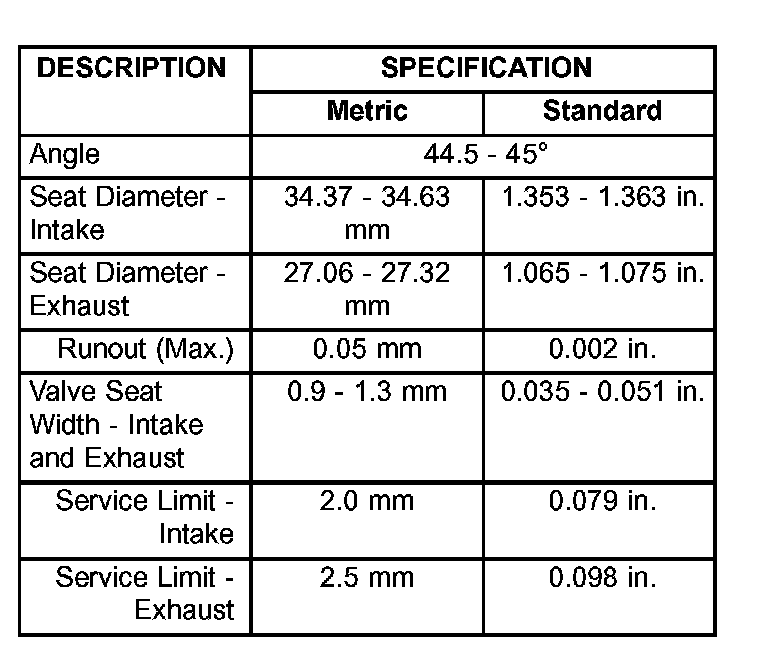

Valve Seat:

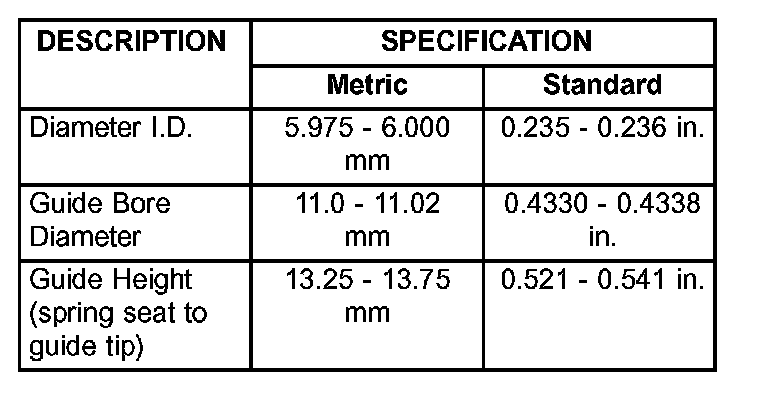

Valve Guide:

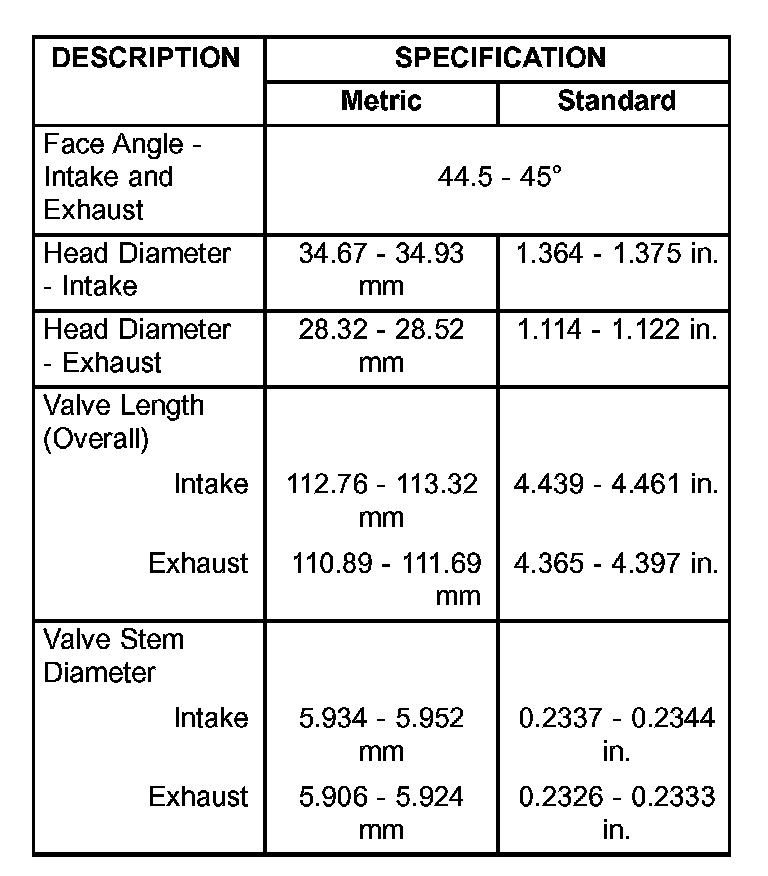

Valves:

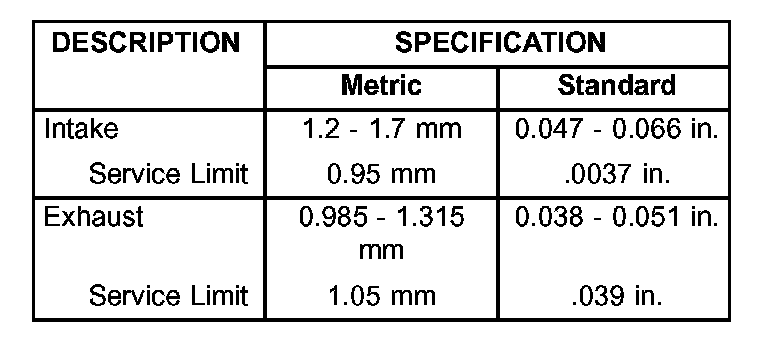

Valve Margin:
Valve Stem Tip Height:

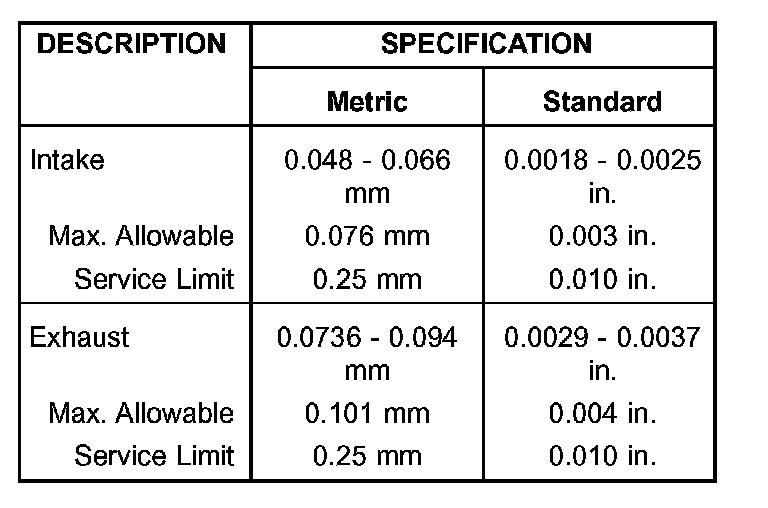

Valve Stem To Guide Clearance:

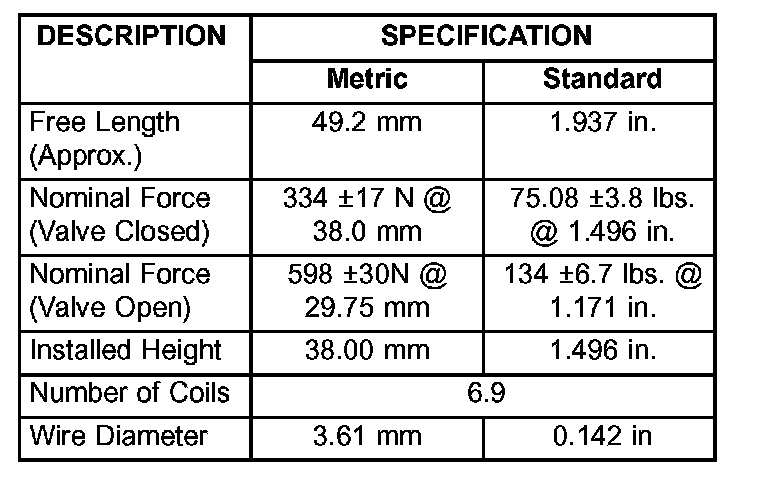

Valve Springs:
Oil Pump:

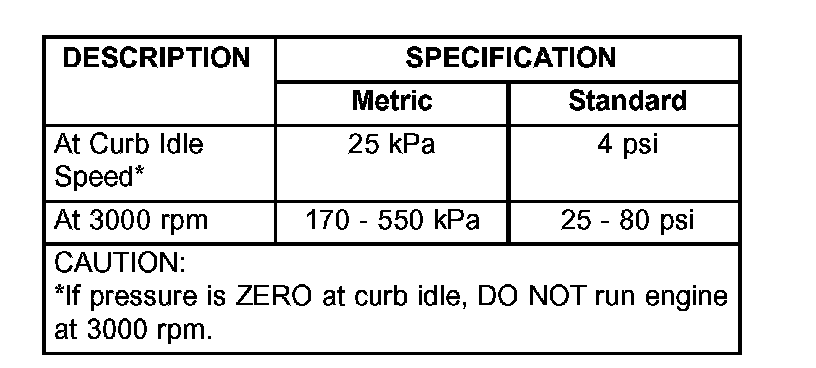

Oil Pressure:
