Rear Axle Lock Inoperative
Symptom: REAR AXLE LOCK INOPERATIVE

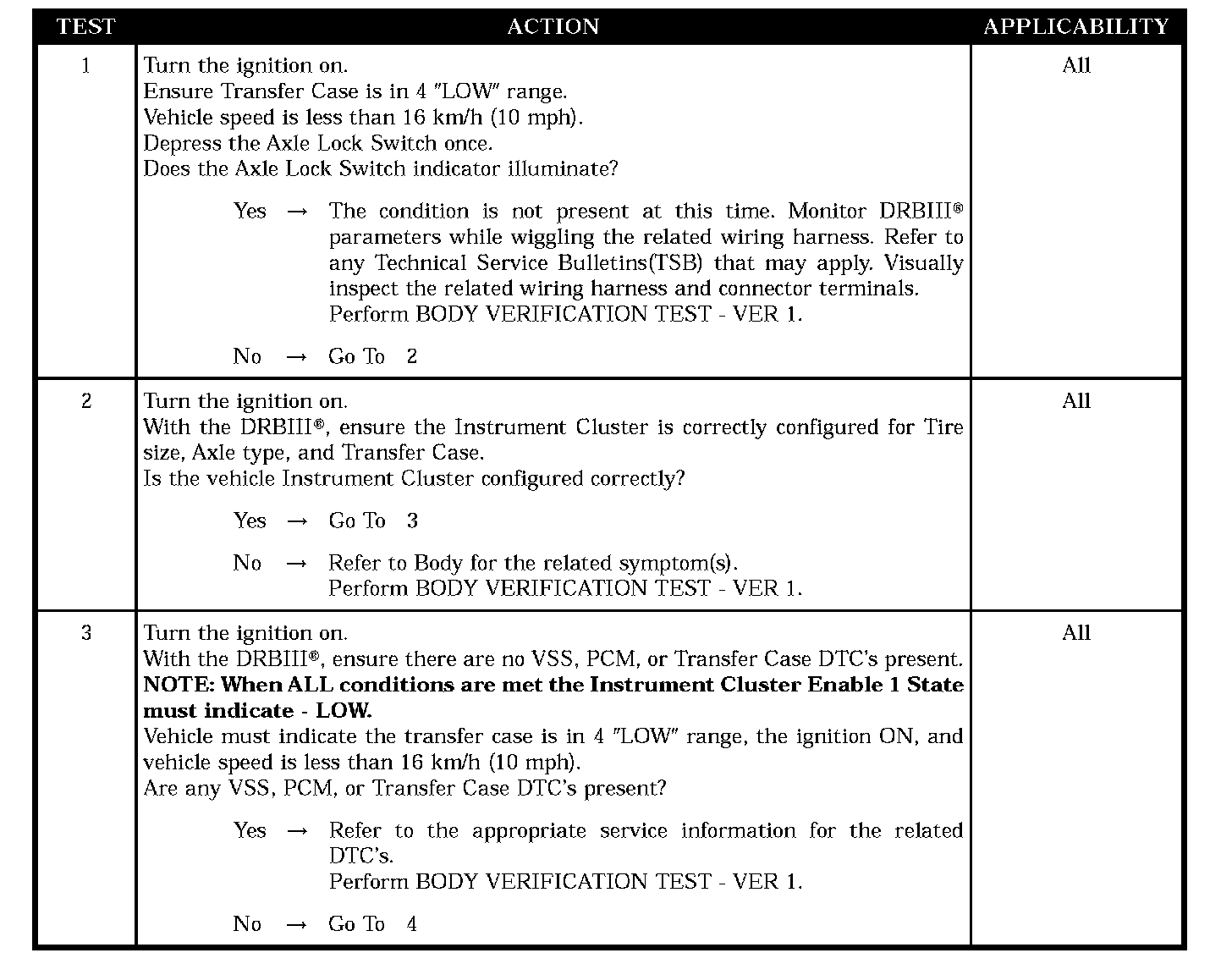

Test 1-3:

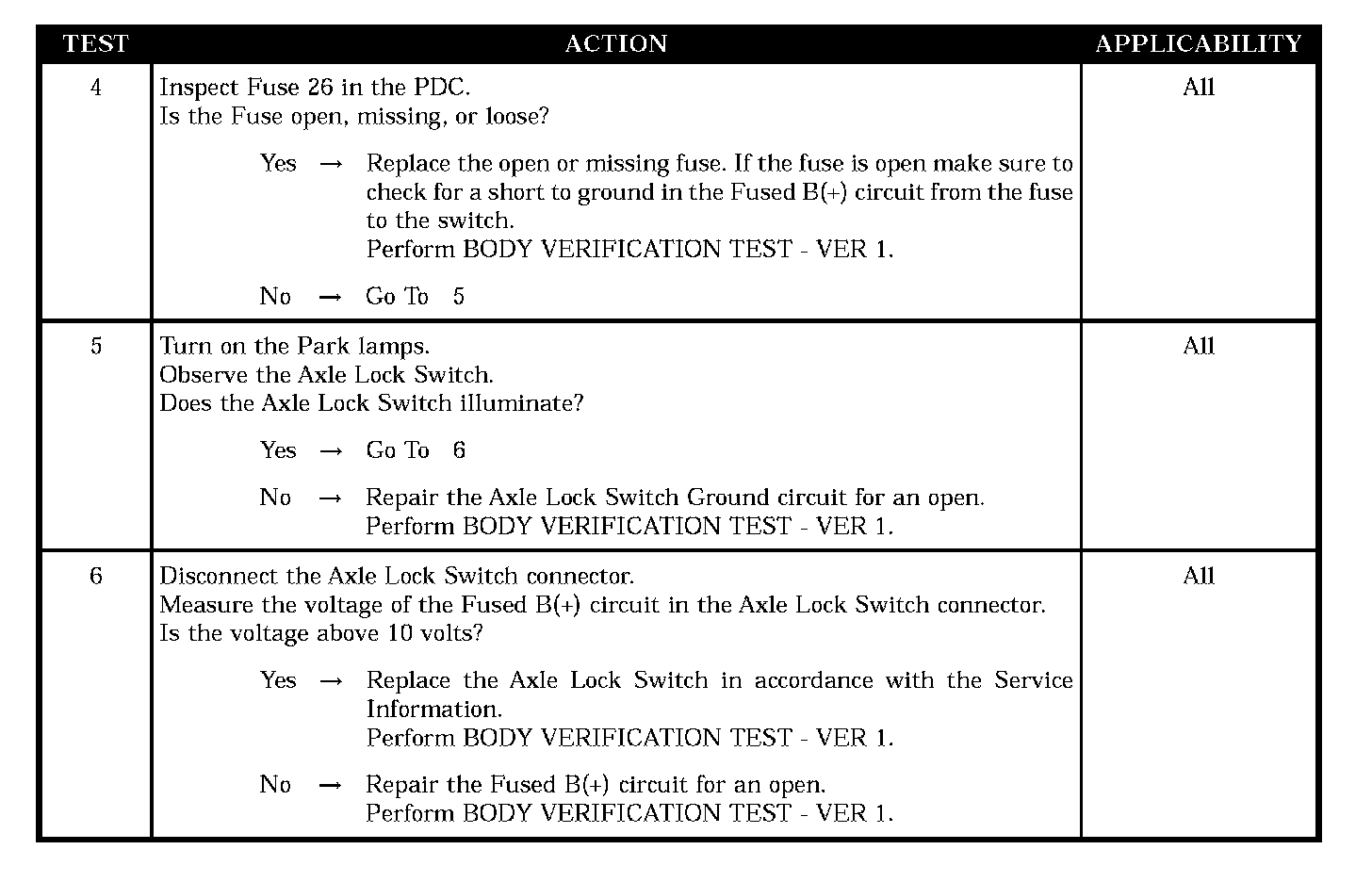

Test 4-6:
POSSIBLE CAUSES -
CHECKING OPERATION
-
INSTRUMENT CLUSTER NOT PROPERLY CONFIGURED
-
VSS, PCM, OR
TRANSFER CASE DTC'S PRESENT
-
OPEN FUSE IN PDC
-
AXLE LOCK SWITCH GROUND CIRCUIT OPEN
-
FUSED B(+) CIRCUIT OPEN TO AXLE LOCK SWITCH
-
AXLE LOCK SWITCH FAILURE
