Air Cleaner Housing: Service and Repair

AIR CLEANER HOUSING

REMOVAL
1. Loosen air tube clamp at housing cover.

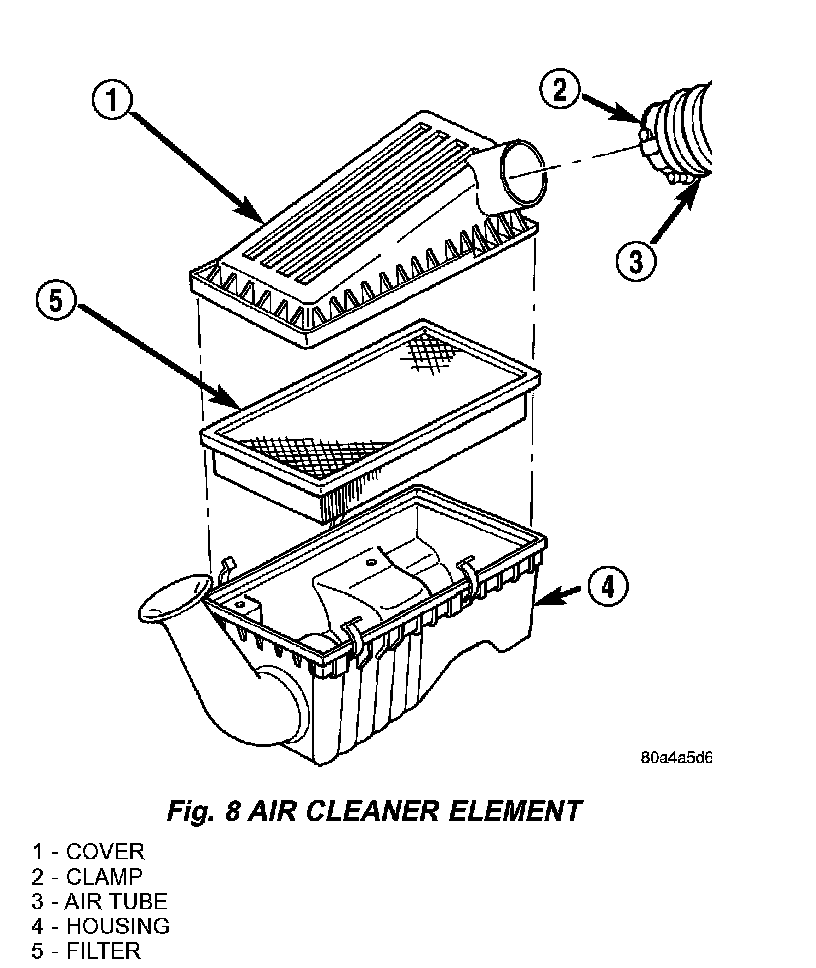

2. Disconnect air tube at cover. (Fig. 8)
3. Pry back the clips retaining air cleaner cover to air cleaner housing.
4. Lift cover up to expose air cleaner element.
5. Remove air cleaner element.
6. Remove the air inlet duct.
7. Lift up and remove the air cleaner housing.

INSTALLATION
1. Push down on the air cleaner housing to lock in place.
2. Install the air inlet tube.
3. Install the air cleaner element.
4. Pry back the clips retaining air cleaner cover to air cleaner housing. (Fig. 8)
5. Install the air cleaner housing cover. Be sure cover is properly seated.
6. Install the air out let tube.
