DVD Player: Service and Repair

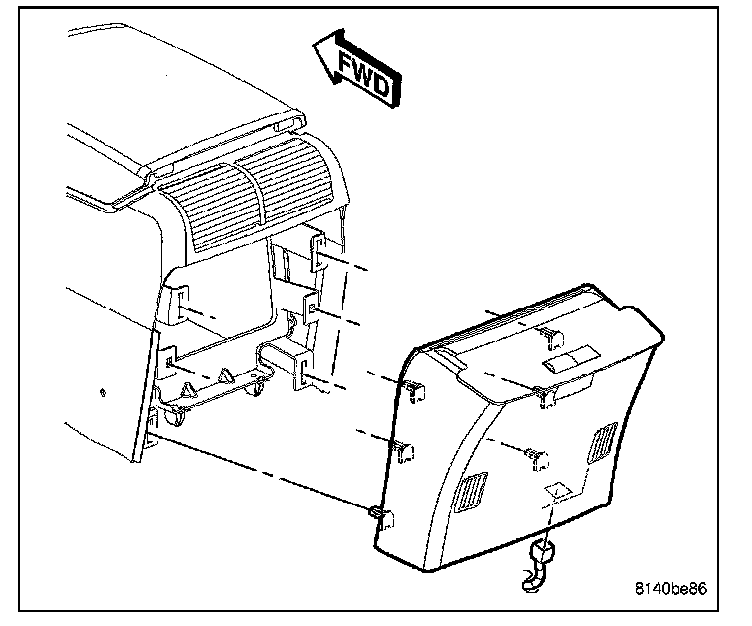

PLAYER - DVDREMOVAL 1.
Disconnect and isolate the battery negative cable.
2.
Using a trim stick, gently pry on the sides of the
DVD player and separate from console.
3.
Disconnect electrical harness connector from
DVD player.
INSTALLATION 1.
Connect electrical harness connector to
DVD player.
2.
Position player to console and press into place.
3.
Connect battery negative cable.
