Seal-Rear Output Shaft

SEAL-REAR OUTPUT SHAFT

REMOVAL
1. Remove the rear propeller shaft.





2. Using Holder C-3281 (1), remove the rear companion flange (2) nut.

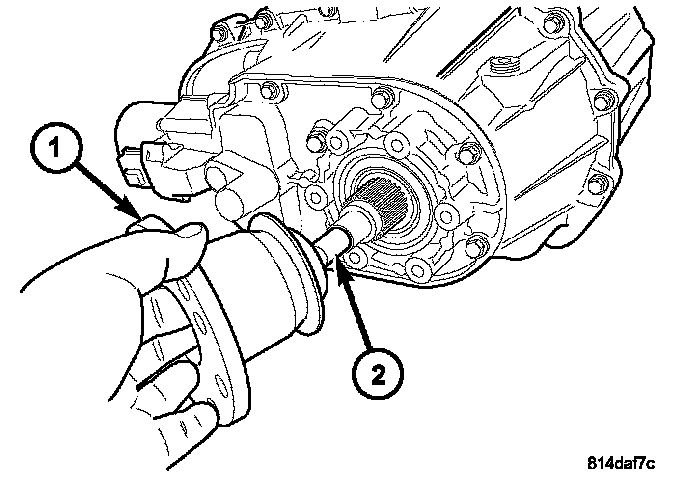

3. Remove the rear output shaft flange (1) from the output shaft (2). If necessary, use a suitable 2 or 3 jaw puller to remove the output shaft flange.
4. Remove the rear output shaft seal with a suitable pry tool or a screw mounted in a slide hammer.

INSTALLATION





1. Install a new rear output shaft seal into the rear cover with Installer 6952-A.

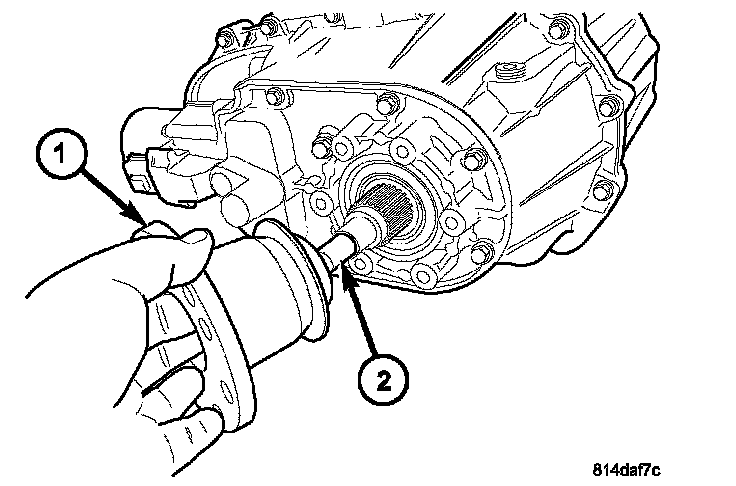

2. Install the rear output shaft flange (1) onto the output shaft (2).





3. Using Holder C-3281 (1), install the rear companion flange (2) nut. Tighten the bolts to 122 - 176 Nm (90 - 130 ft. lbs.).
4. Install the rear propeller shaft.
5. Check the transfer case fluid level. Correct as necessary.
