Speaker

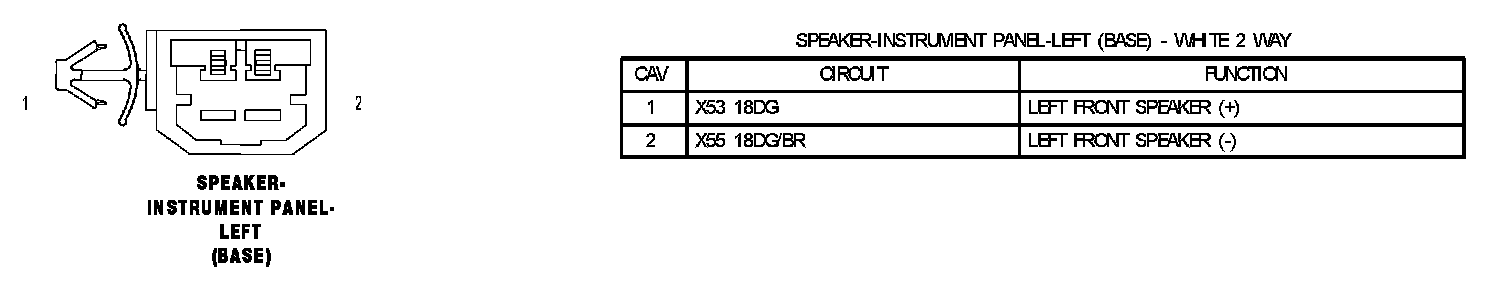

Speaker - Instrument Panel Left (Base):

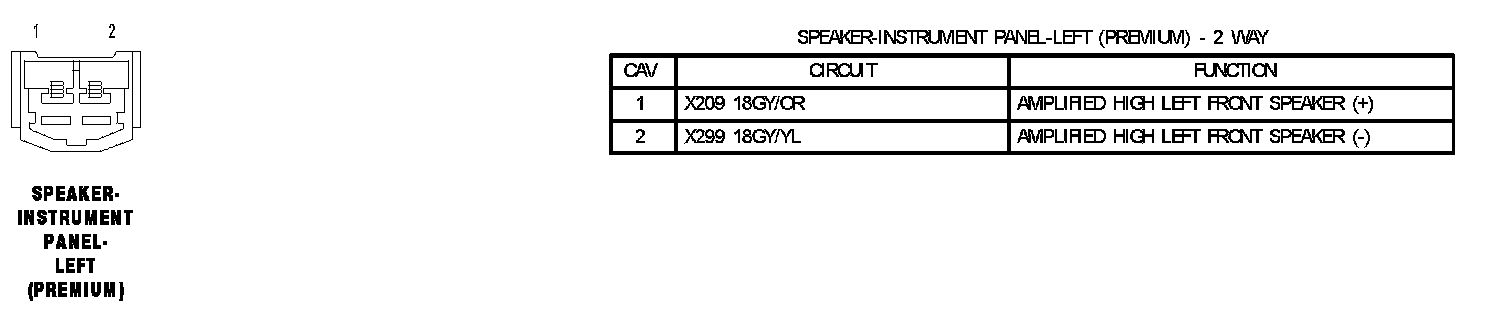

Speaker - Instrument Panel Left (Premium):

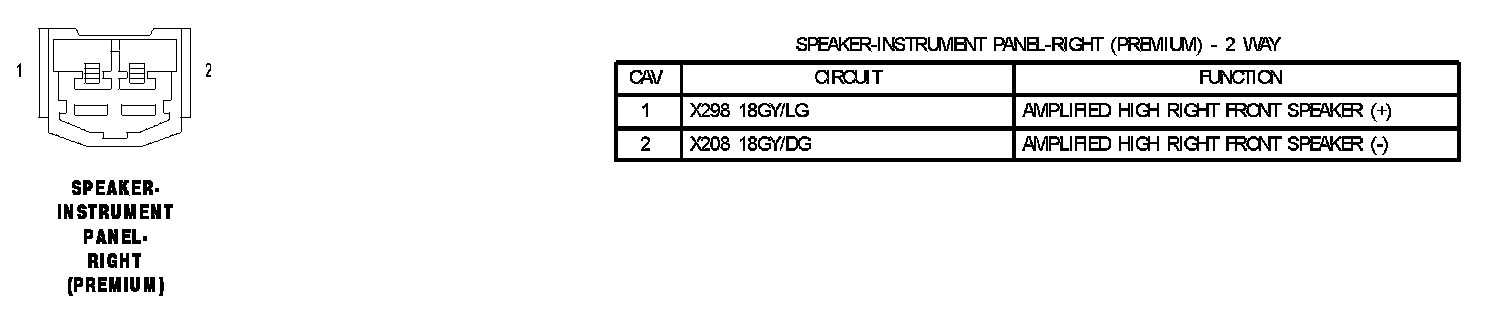

Speaker - Instrument Panel Right (Premium):

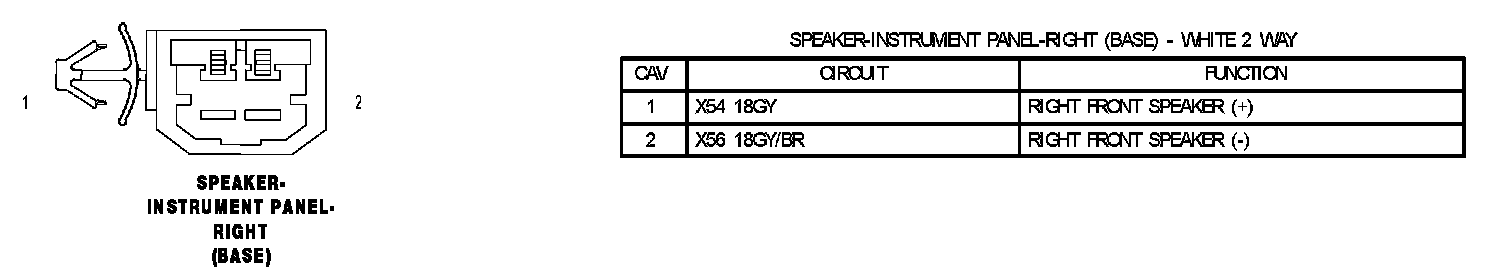

Speaker - Instrument Panel Right (Base):

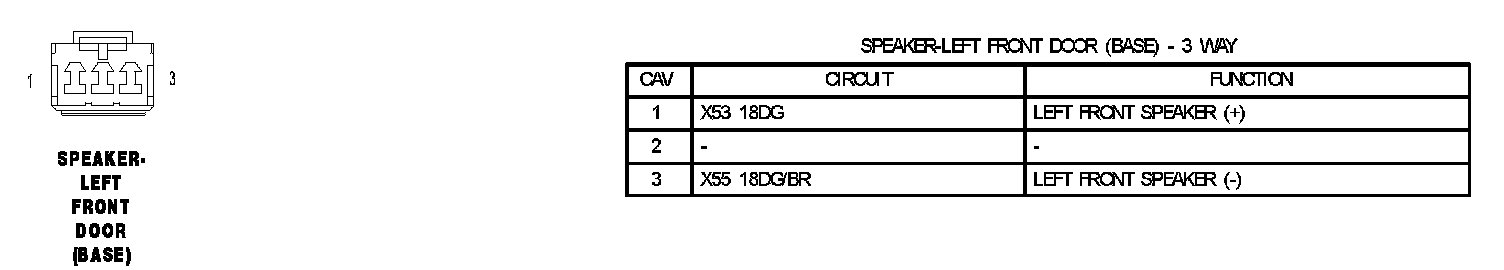

Speaker - Left Front Door (Base):

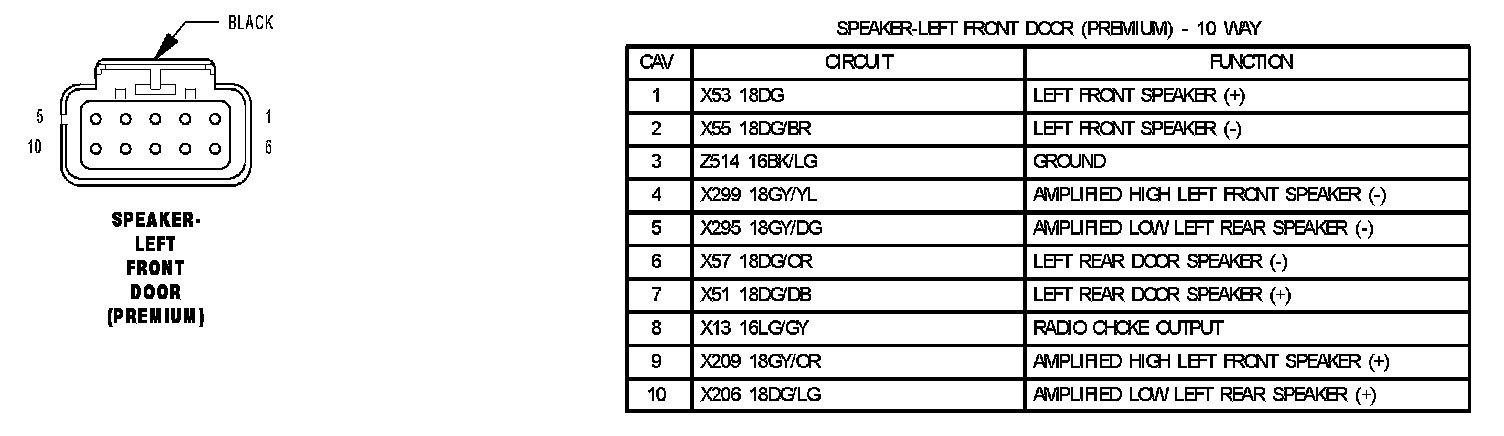

Speaker - Left Front Door (Premium):



Speaker - Left Rear Door (Premium):

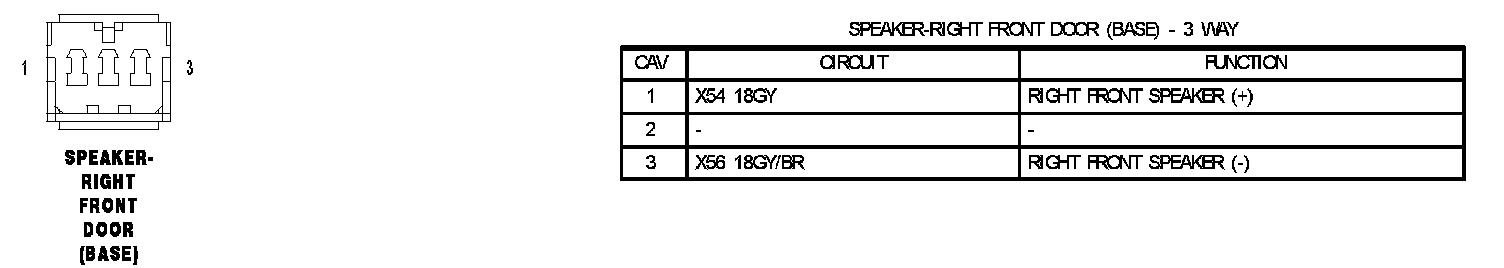

Speaker - Right Front Door (Base):

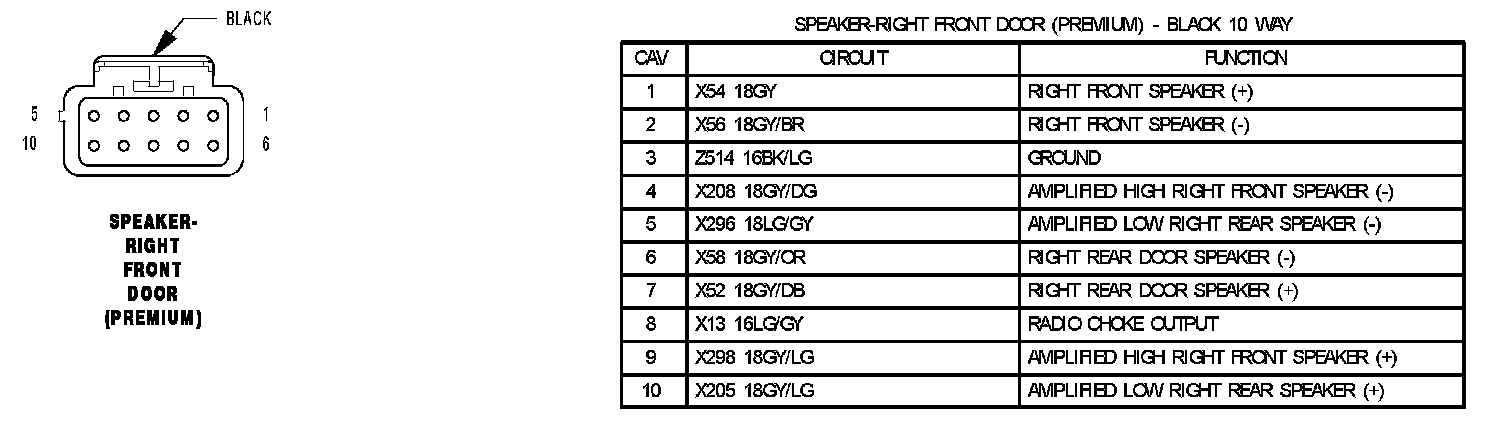

Speaker - Right Front Door (Premium):



Speaker - Right Rear Door (Premium):
