Compressor Clutch Relay: Service and Repair

RELAY-A/C CLUTCH

NOTE:
- LHD model shown in illustration. RHD models similar.
- Refer to the fuse and relay layout map on the inside of the PDC cover for A/C clutch relay location.


REMOVAL




1. Disconnect and isolate the negative battery cable.

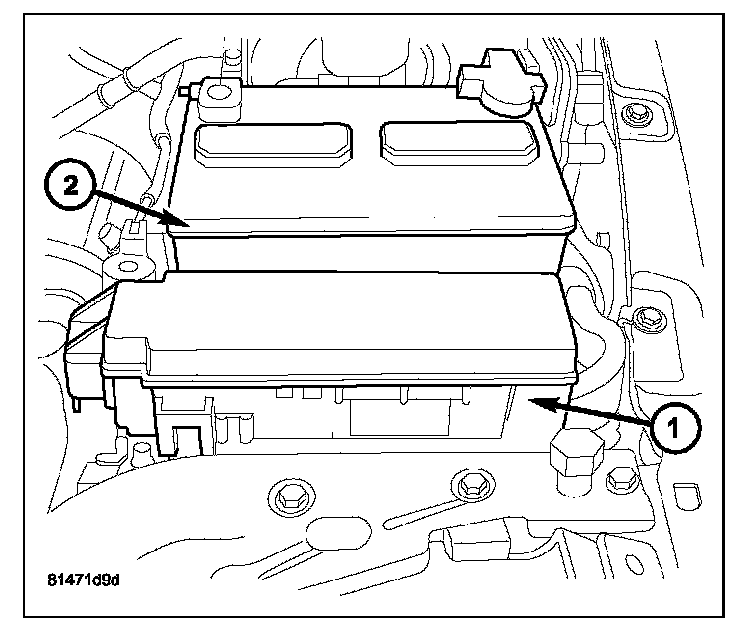

2. Open the cover of the power distribution center (PDC) (1) located near the battery (2) in the engine compartment.
3. Remove the A/C clutch relay from the PDC.

INSTALLATION

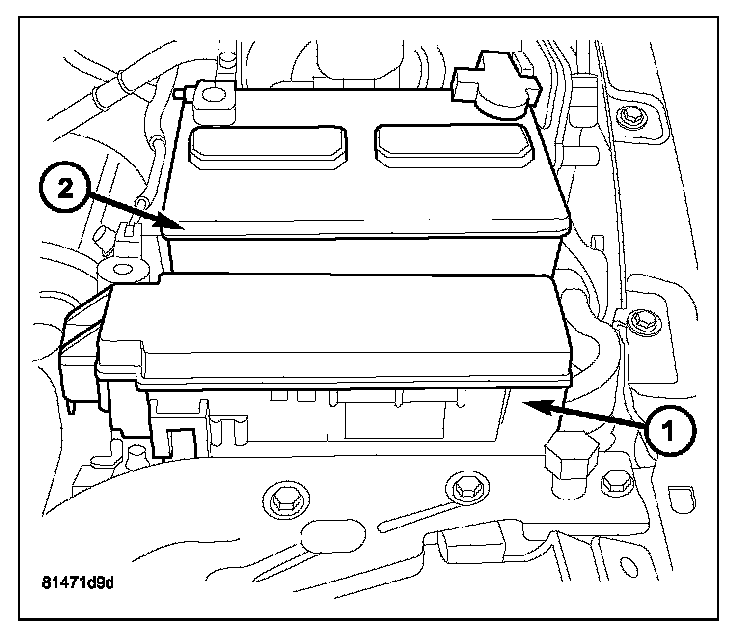

1. Position the A/C clutch relay into the proper receptacle of the PDC (1) located near the battery (2) in the engine compartment.
2. Align the A/C clutch relay terminals with the terminal cavities in the PDC receptacle and push down firmly on the relay until the terminals are fully seated.
3. Close the cover of the PDC.
4. Reconnect the negative battery cable.
