CHECKING THE ACCELERATOR PEDAL POSITION SENSOR CALIBRATION

Checking The Accelerator Pedal Position Sensor Calibration:

Theory of Operation

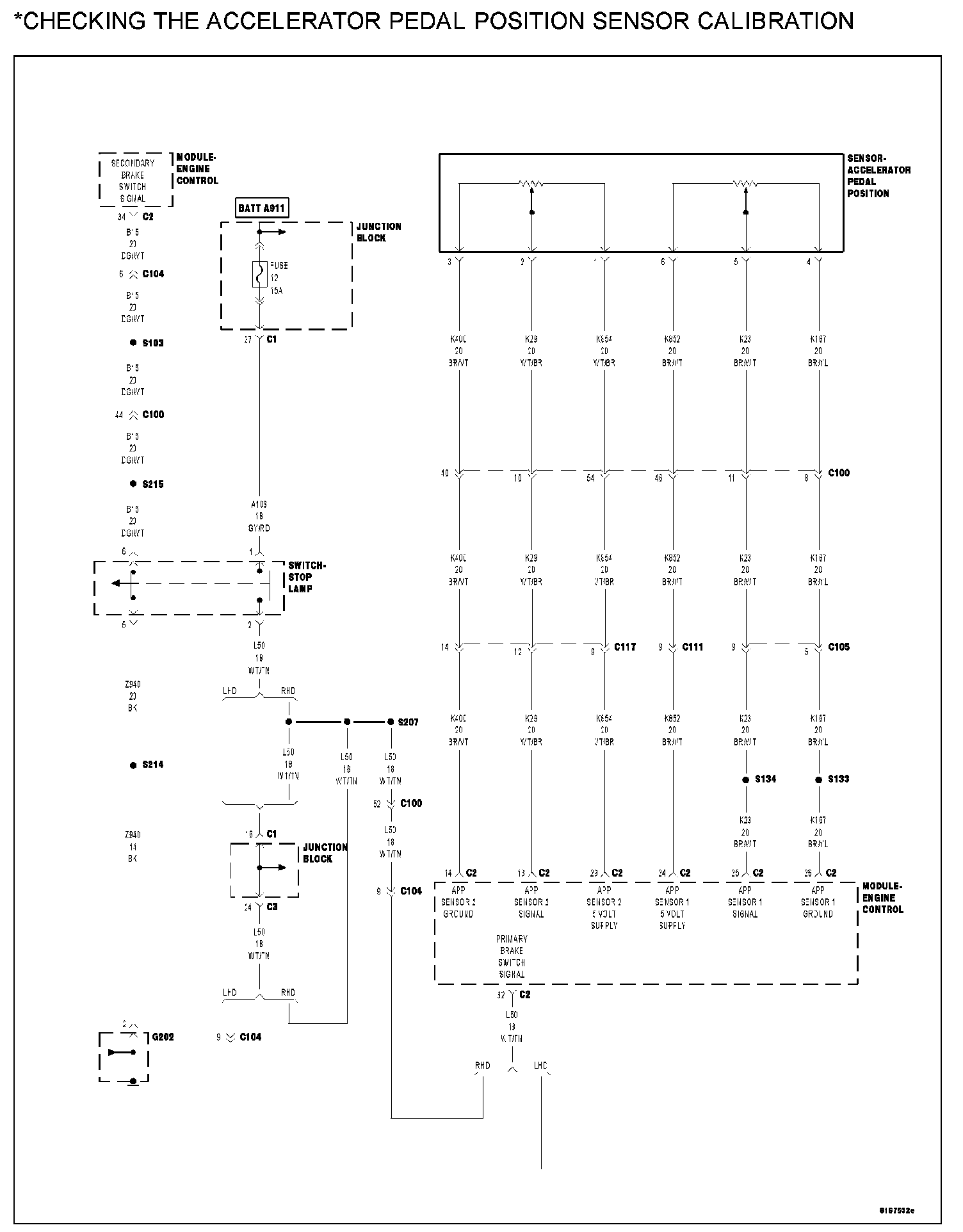

The Accelerator Pedal Position Sensor (APP) is a device that contains 2 separate potentiometer type sensors. Each sensor has its own 5-volt supply circuit, sensor ground circuit and signal circuit. The APP Sensor 2 signal should always be approximately 1/2 the voltage of the APP Sensor 1 signal.

POSSIBLE CAUSES
- APP sensor operation
- APP sensor circuit 1 high resistance
- APP sensor circuit 2 high resistance

DIAGNOSTIC TEST

1. APP SENSOR IDLE VOLTAGE




Inspect the Accelerator Pedal Position Sensor for proper travel from the rest position to the fully depressed position.
Turn the ignition on.

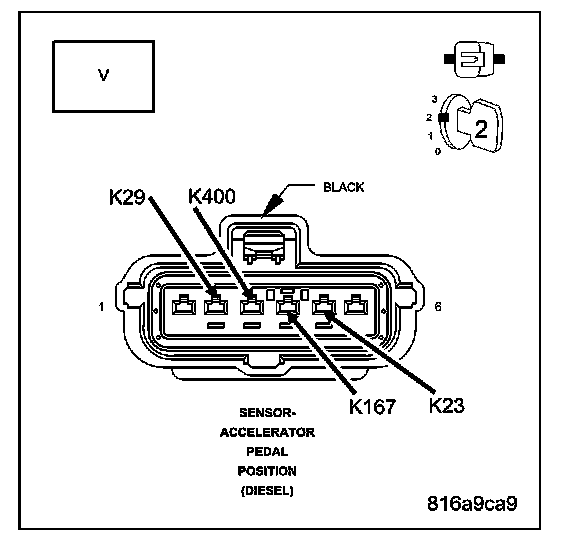

With the accelerator pedal in the rest position, use a voltmeter to backprobe the (K23) Accelerator Pedal Position Sensor 1 and the (K29) Accelerator Pedal Position Sensor 2 Signal circuits at the Accelerator Pedal Position Sensor harness connector with the accelerator pedal in the at rest position.

Q: Is the voltage between 0.42 and 0.51 volt for sensor 1 and 0.19 and 0.28 volt for sensor 2?

YES: Go To 2
NO: Check the wiring and connectors related to the Accelerator Pedal Position Sensor. If OK, replace the Accelerator Pedal Position Sensor.
Perform the ECM Verification Test Ver. 1. ECM Verification Test

2. APP SENSOR

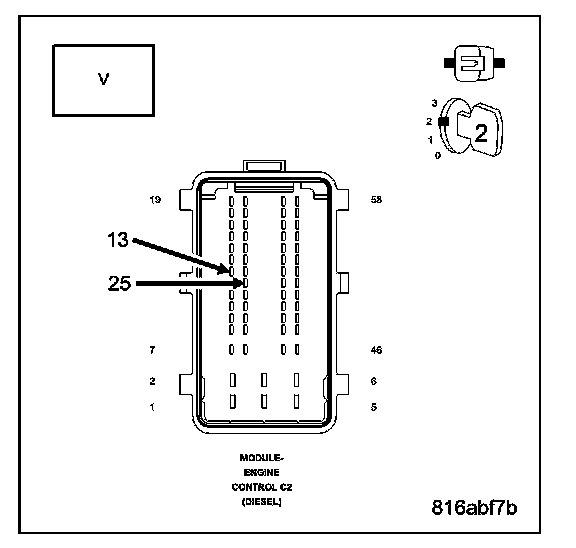

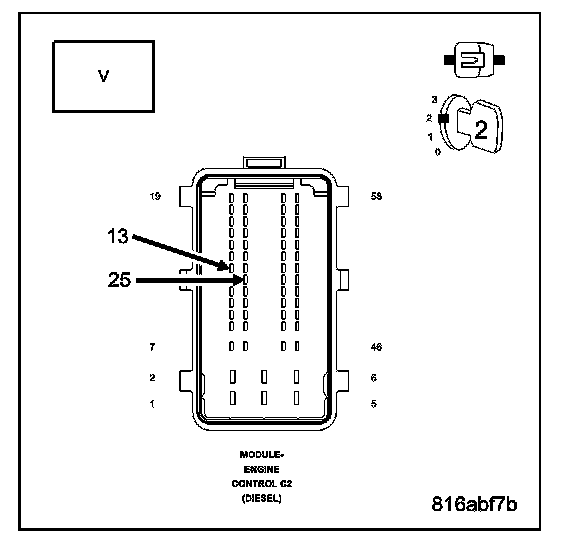

While back probing, measure the voltage of the (K23) Accelerator Pedal Position Sensor Signal 1 and (K29) Accelerator Pedal Position Sensor Signal 2 circuits at the ECM.
Monitor the voltmeter while slowly pressing the accelerator pedal completely down.

Q: Did the voltage for both sensors increase smoothly with pedal travel?

YES: Go To 3
NO: Replace the Accelerator Pedal Position Sensor.
Perform the ECM Verification Test Ver. 1. ECM Verification Test

3. APP SENSOR WIDE OPEN THROTTLE VOLTAGE




Using a voltmeter backprobe the Accelerator Pedal Position Sensor harness connector and read the voltage for (K23) Accelerator Pedal Position Sensor 1 and (K29) Accelerator Pedal Position Sensor 2 Signal circuits.
Fully depress the accelerator pedal.

Q: Is the voltage between 4.45 and 4.75 volts for #1 and 2.15 and 2.45 volts for #2?

YES: Test Complete.
NO: Check the wiring and connectors related to the APP Sensor. If OK, replace the Accelerator Pedal Position Sensor.
Perform the ECM Verification Test Ver. 1. ECM Verification Test
