Installation






INSTALLATION




1. Install support plate on axle flange. Tighten attaching bolts (3) to 115 Nm (85 ft. lbs.).
2. Install parking brake cable in the brake actuator lever (4).

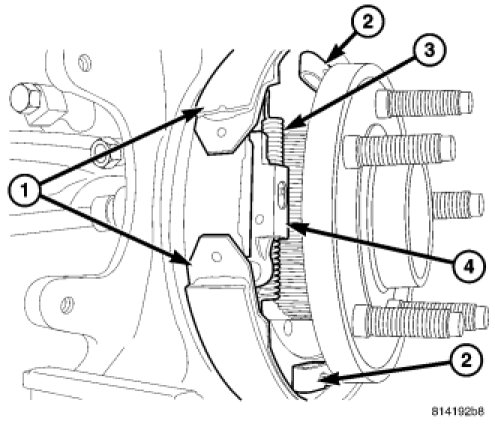

3. Install the park brake shoes (1).




4. Install axle shaft (1).




5. Install the axle shaft flange nuts (1).




6. Install the wheel speed sensor (2).
7. Adjust brake shoes to drum with brake gauge.

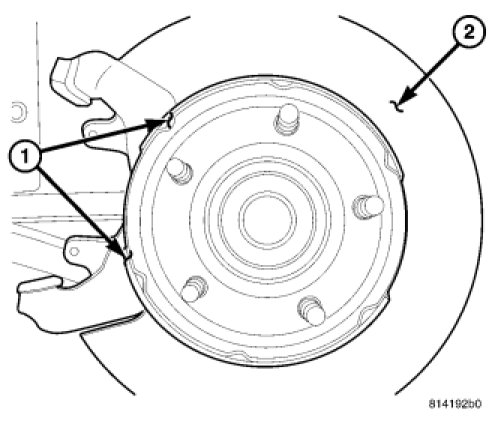

8. Install the rotor.




9. Install the caliper and the slide bolts (4).
10. Install the wheel and tire assembly.
