Sunroof / Moonroof Motor

Component ID: 213
Component : MOTOR/MODULE-SUNROOF

Connector:

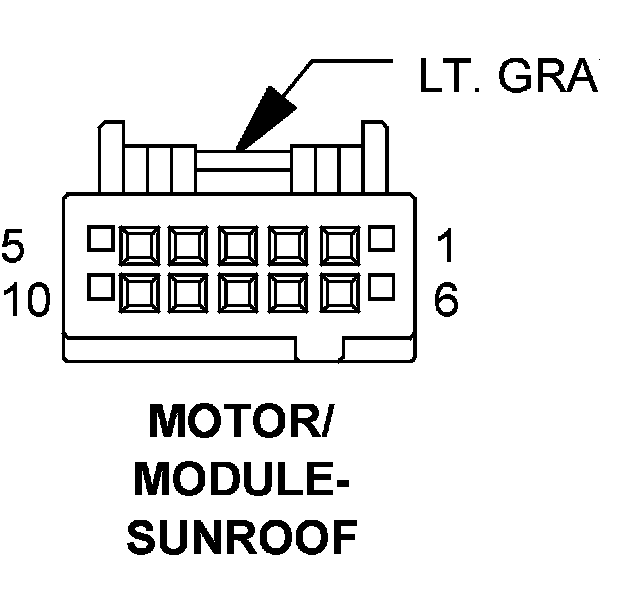

Name : MOTOR/MODULE-SUNROOF
Color : LT. GRAY
# of pins : 10

Pin Description Circuit
1 - -
2 SUNROOF VENT SWITCH SENSE Q4 20OR/YL
3 SUNROOF OPEN SWITCH SENSE Q3 20OR/TN
4 CAN B BUS (-) D54 20WT
5 CAN B BUS (+) D55 20WT/OR
6 GROUND Z914 18BK
7 SUNROOF CLOSE SWITCH SENSE Q5 20OR/LB
8 FUSED B(+) A932 18RD
9 - -
10 SUNROOF SWITCH SUPPLY Q6 20OR/LG
