Installation
5.7L 1.

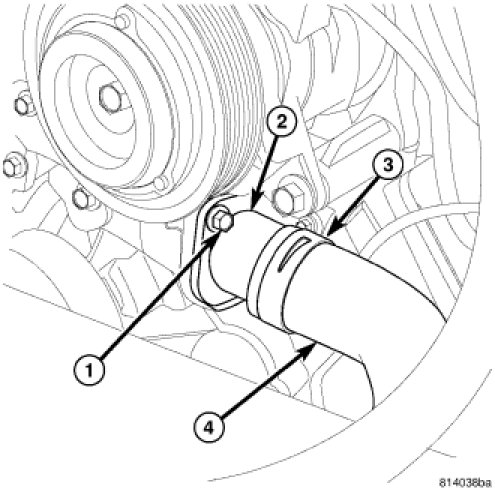

Position the thermostat and housing (2) on the front cover.
2.
Install
thermostat housing bolts (1). Tighten the bolts (1) to
13 Nm (112 in. lbs.).
3.
Install the radiator hose (4) onto the
thermostat housing (2).
4.
Fill the
cooling system.
5.
Connect negative battery cable.
6.
Start and warm the engine. Check for leaks.
