Installation

3.0L - DIESEL

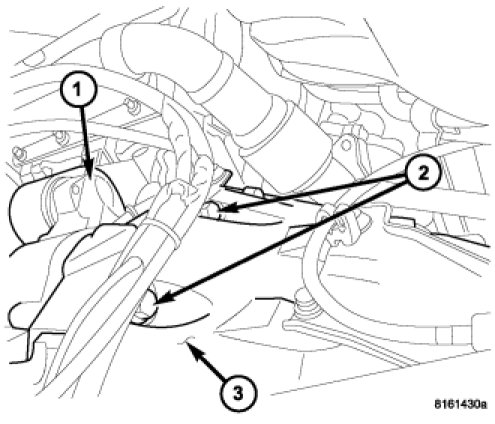

1. While working from engine compartment, position starter to transmission bellhousing.

2. Connect solenoid wire to solenoid.

3. Position battery cable eyelet to starter. Install battery cable nut.

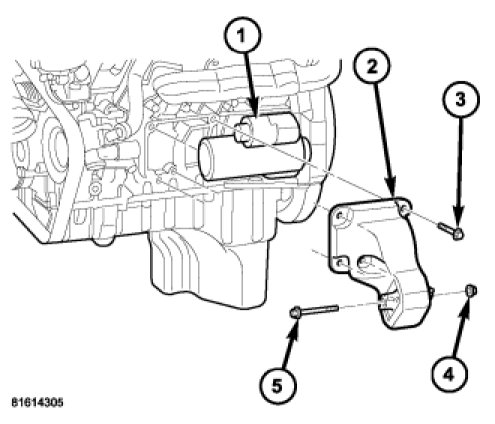

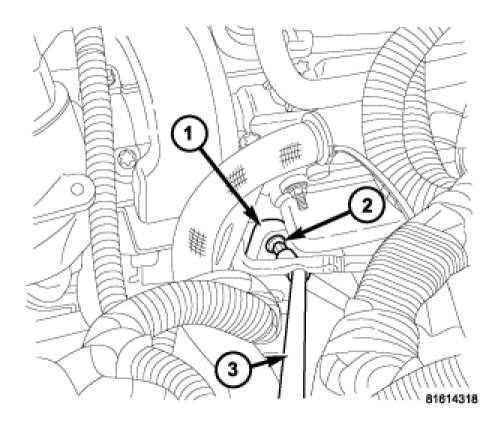

4. Position left engine mount (1) to engine and install four bolts (2).

5. Tighten four engine-to-engine mount bolts (2) using a long extension (3) and swivel socket.




6. Install and tighten frame-to-engine mount nut (4) and through-bolt (5).

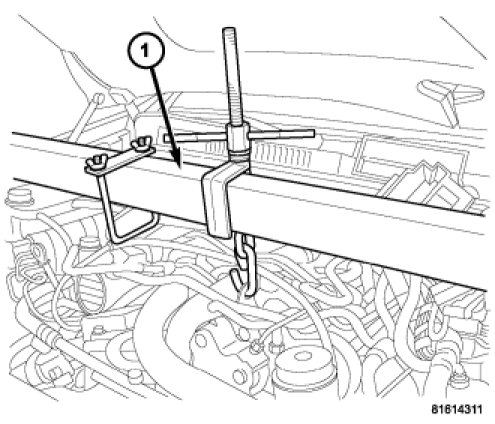

7. Remove Engine Support Fixture #8534B (1) from engine.

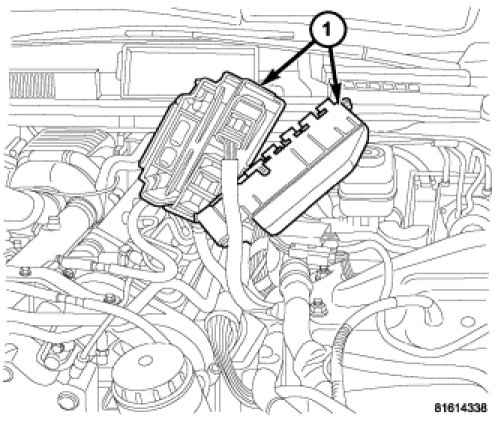

8. Install Power Distribution Center and Fuse/Relay Center (1) to left inner fender. Connect both B+ cables to both Centers.

9. Raise vehicle.




10. Install and tighten starter mounting bolts (2).

11. If equipped, install skid plate below starter.

12. Lower vehicle.

13. Install plastic dress-up cover to top of engine.

14. Install battery tray (three bolts - one nut).

15. Install battery.

16. Install positive battery cable to battery.

17. Install negative battery cable to battery.
