Installation






INSTALLATION

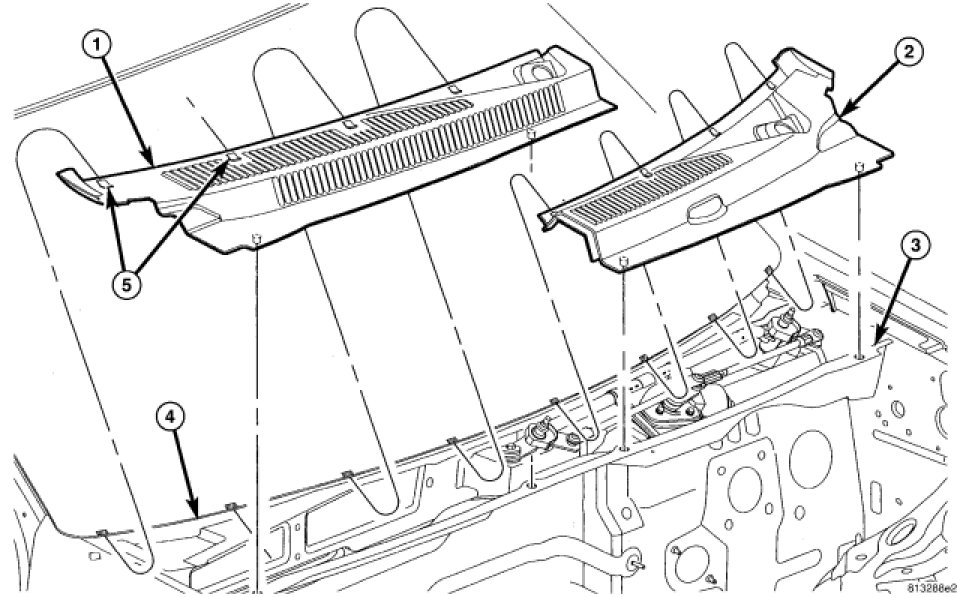

1. Install the left hand cowl panel (2) first with hole located over the wiper pivot.

2. Install tabs under windshield (4) and rubber seal on top of windshield and push the cowl panel rearward to engage clips fully.

3. Install locating panel pins into sheet metal (3) slide outboard for a close fit to the fender.

4. Install the right hand cowl panel (1) overlapping the left side (2) at the center of the vehicle.

5. Install tabs under windshield (4) and rubber seal on top of windshield and push the cowl panel rearward to engage clips fully.

6. Install locating panel pins into sheet metal (3) slide outboard for a close fit to the fender.

7. Install rear hood seal and foam blocks.

8. Install wiper arms.
