Glow Plug Control Module: Diagrams

Component ID: 184
Component : MODULE-GLOW PLUG

Connector:
Name : MODULE-GLOW PLUG
Color :
# of pins : 1
Qualifier : (DIESEL)

Pin Description Circuit
1 FUSED B(+) A904 10RD

Component Location - 30






Connector:

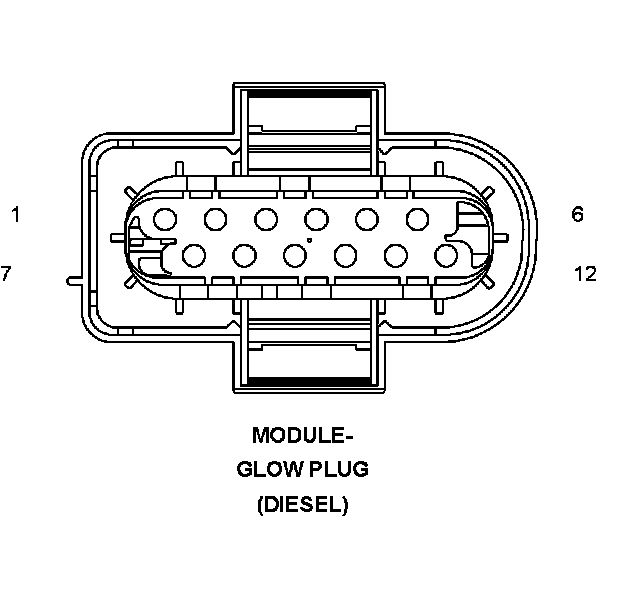

Name : MODULE-GLOW PLUG
Color :
# of pins : 12
Qualifier : (DIESEL)




Pin Description Circuit
1 GLOW PLUG NO. 1 CONTROL A202 16BK/BL
2 GLOW PLUG NO. 2 CONTROL A203 16BK/VT
3 GLOW PLUG NO. 3 CONTROL A204 16BK/RD
4 GLOW PLUG NO. 4 CONTROL A208 16BK/YL
5 FUSED ASD RELAY OUTPUT A15 20RD/DG
6 GROUND Z921 18BR
7 GLOW PLUG NO. 5 CONTROL A211 16BK/DG
8 GLOW PLUG NO. 6 CONTROL A216 16BK/WT
9 - -
10 - -
11 - -
12 LIN BUS D509 20WT/BL

Component Location - 30
