Intrusion Module - Removal






REMOVAL




1. Disconnect and isolate the battery negative cable.

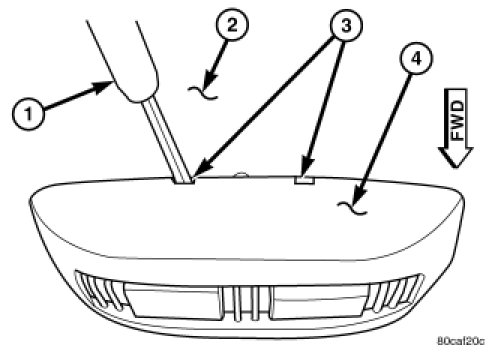

2. While lightly pulling downward on either rear corner of the Intrusion Transceiver Module (ITM) trim cover (4), insert a small thin-bladed screwdriver (1) through each of the service holes (3) on the rear edge of the trim cover to depress and release the two integral rear latch features of the module from the mounting bracket above the headliner (2).

3. Pull the ITM trim cover rearward far enough to disengage the two integral front latch features of the module from the mounting bracket above the headliner.

4. Pull the ITM and trim cover down from the headliner far enough to access and disconnect the overhead wire harness connector for the ITM from the module connector receptacle.

5. Remove the ITM from the headliner.
